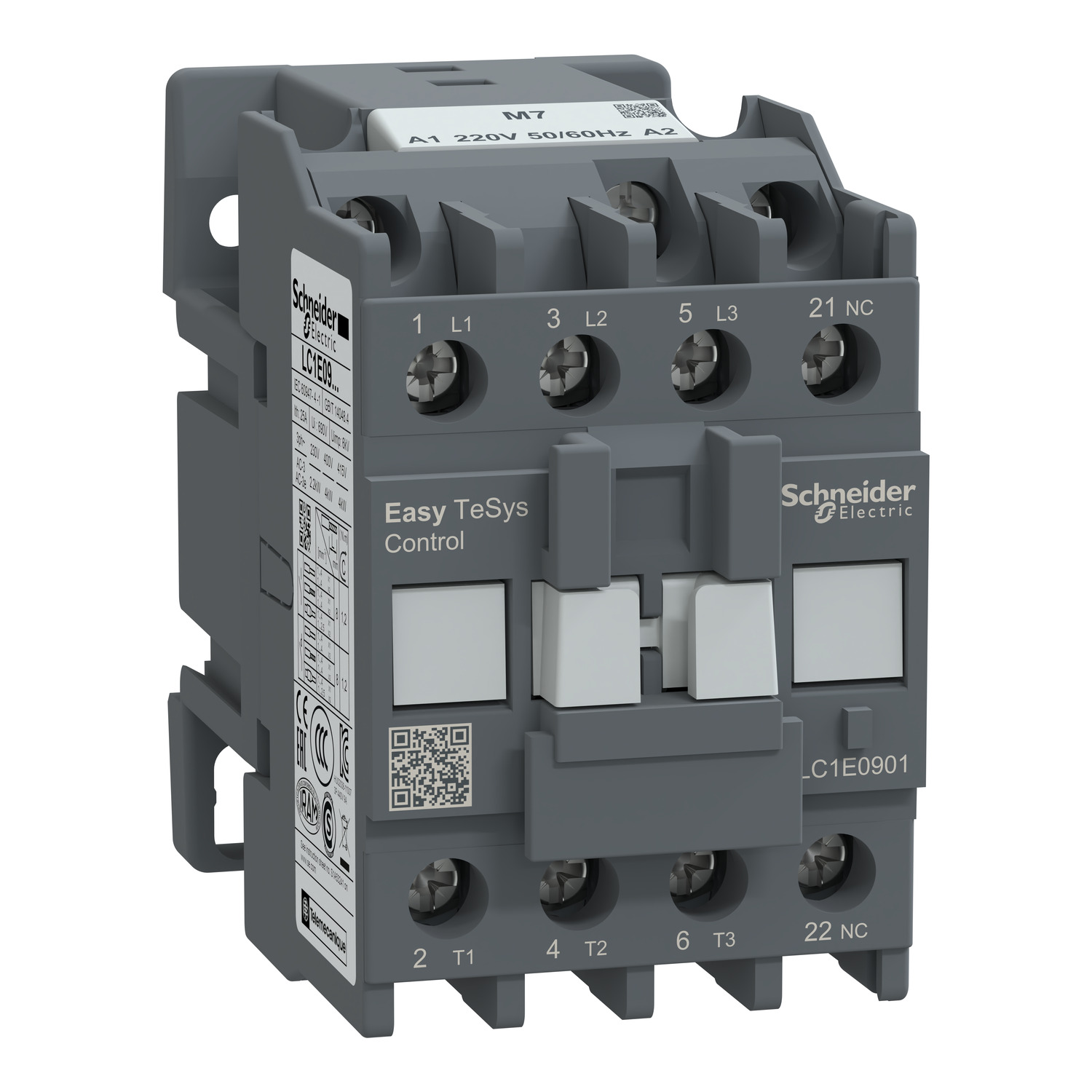

The Schneider Electric LC1E0901M7 is a reliable and versatile Easy TeSys Control contactor designed for motor control and general electrical applications. Part of Schneider’s TeSys Easy series, this contactor is specifically built to provide efficient and cost-effective solutions for controlling electrical circuits in a variety of industrial, commercial, and residential settings.

Specifications:

• Model: LC1E0901M7 Easy TeSys Contactor
• Type: 3-Pole (3 Normally Open Contacts)
• Rating: AC-3/AC-3e (for motor use with standard and enhanced efficiency options)
• Voltage Rating: Operates at ≤ 440 V
• Current Rating: Can handle up to 9 A
• Coil Voltage: 220 V AC, suitable for both 50 Hz and 60 Hz operation.
• Auxiliary Contact: Includes 1 Normally Closed (NC) auxiliary contact for additional control functions.
• Size: Compact and efficient design that fits into various control panels and systems with limited space.

Features:

1. Compact and Efficient: The LC1E0901M7 is designed for easy installation, offering a compact size without compromising on performance. It is ideal for systems with space constraints.
2. Reliable Motor Control: With AC-3/AC-3e ratings, it provides reliable and efficient control for motors, offering both standard and enhanced motor efficiency.
3. Enhanced Control Options: The contactor includes a Normally Closed (NC) auxiliary contact, which adds flexibility for additional control and signaling functions within the circuit.
4. Durable and Long-lasting: Built to last, the LC1E0901M7 is engineered to provide dependable performance over long periods, even under heavy-duty conditions.
5. Easy Installation: Its design is focused on simplifying installation, saving time and labor when integrating the contactor into various electrical systems.
6. Wide Voltage Range: With a coil voltage of 220 V AC, it is compatible with a wide range of electrical systems that operate at 50 Hz or 60 Hz frequencies.
7. Low Maintenance: The contactor is designed to require minimal maintenance, reducing downtime and operational costs over time.

Applications:

• Motor Control: Ideal for controlling small to medium-sized motors in industrial machinery, HVAC systems, water pumps, and other motor-driven devices.
• Lighting and Heating Control: Suitable for controlling lighting circuits, heating elements, and other non-inductive loads.
• Automation and Control Systems: Widely used in control panels and automation systems for switching motors, lights, or other electrical equipment.
• General Electrical Applications: Can be applied in residential, commercial, and industrial environments where reliable switching and motor control are necessary.

How It Works:

The LC1E0901M7 operates by energizing the 220 V AC coil, which activates the contactor and causes the 3 Normally Open (NO) contacts to close, allowing electrical current to flow to the connected motor or equipment. The included Normally Closed (NC) auxiliary contact provides additional functionality, such as signaling or further control in the circuit. This enables seamless operation of the connected systems, ensuring safe and efficient performance.
