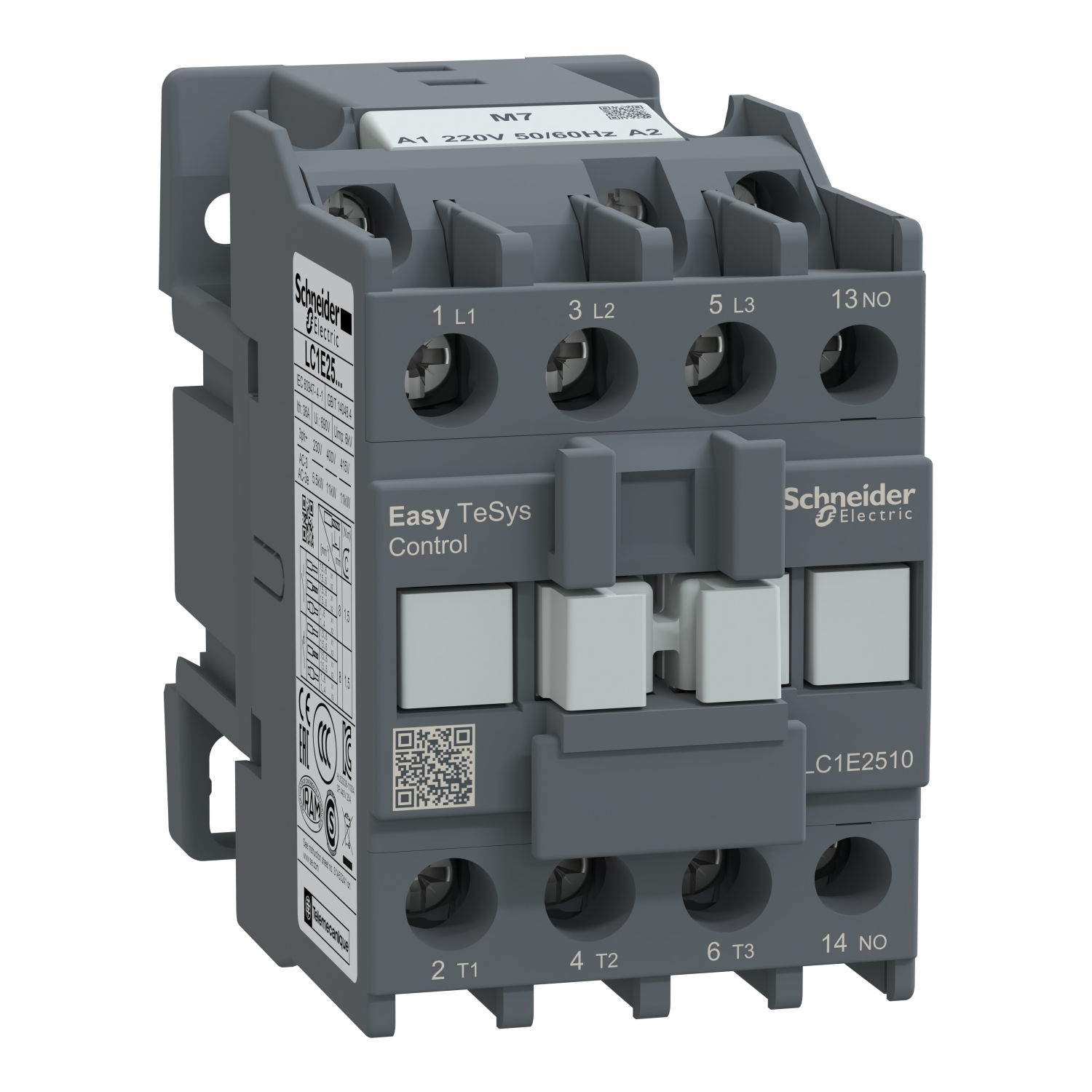

Schneider LC1E2510M7 | Contactor,Easy TeSys Control,LC1E,3P(3NO),AC-3,<=440V,25A,220V AC coil,50/60Hz,1NO auxiliary contact



Technical Specifications

• Model Number: LC1E2510M7
• Series: Easy TeSys LC1E
• Contactor Type: Electromagnetic Contactor
• Number of Poles: 3P (Three-Pole)
• Main Contact Configuration: 3 Normally Open (3NO)
• Auxiliary Contact Configuration: 1 Normally Open (1NO)
• Utilization Category: AC-3
• Rated Operational Voltage (Ue): ≤ 440V AC
• Rated Current (Ie) for AC-3: 25A
• Coil Voltage: 220V AC (50/60Hz)
• Coil Consumption: 9VA (holding), 70VA (inrush)
• Mechanical Durability: Up to 10 million operations
• Electrical Durability: Up to 1 million operations at rated load
• Operating Temperature Range: -5°C to +55°C
• Mounting Type: DIN Rail or Panel Mounting
• Connection Type: Screw Terminals
• Certifications & Standards: IEC 60947-4-1, UL, CSA, CE

Key Features

1. Reliable Motor Control

   • Suitable for direct motor starting, reversing, and switching operations in AC-3 applications.

2. High Durability and Longevity

   • Offers up to 10 million mechanical operations and 1 million electrical operations, ensuring long-term reliability.

3. Compact and Space-Saving Design

   • Optimized for control panels and industrial motor control centers, reducing panel space usage.

4. Versatile Auxiliary Contact (1NO)

   • Allows for feedback signaling, interlocking, and control circuit integration.

5. Efficient Coil Performance (220V AC, 50/60Hz)

   • Operates on a standard voltage, making it suitable for various industrial power systems.

6. Flexible Mounting Options

   • Supports both DIN rail and panel mounting, making installation easy and adaptable.

7. Robust and Industrial-Grade Build

   • Designed for harsh environments, withstanding high temperatures and electrical loads.

8. Compliant with Global Standards

   • Certified under IEC 60947-4-1, UL, CSA, and CE, ensuring safe and efficient operation worldwide.

Applications

• Motor Control & Automation
  • Used in motor starters, pump control systems, conveyor systems, and compressors.
• Industrial Machinery & Equipment
  • Controls motors in manufacturing, material handling, and industrial automation systems.
• HVAC Systems
  • Ideal for air conditioning units, ventilation systems, and heating systems.
• Power Distribution & Control Panels
  • Ensures reliable switching in electrical distribution boards.
• Lighting & Heating Circuits
  • Used in commercial and industrial lighting and heating applications.
