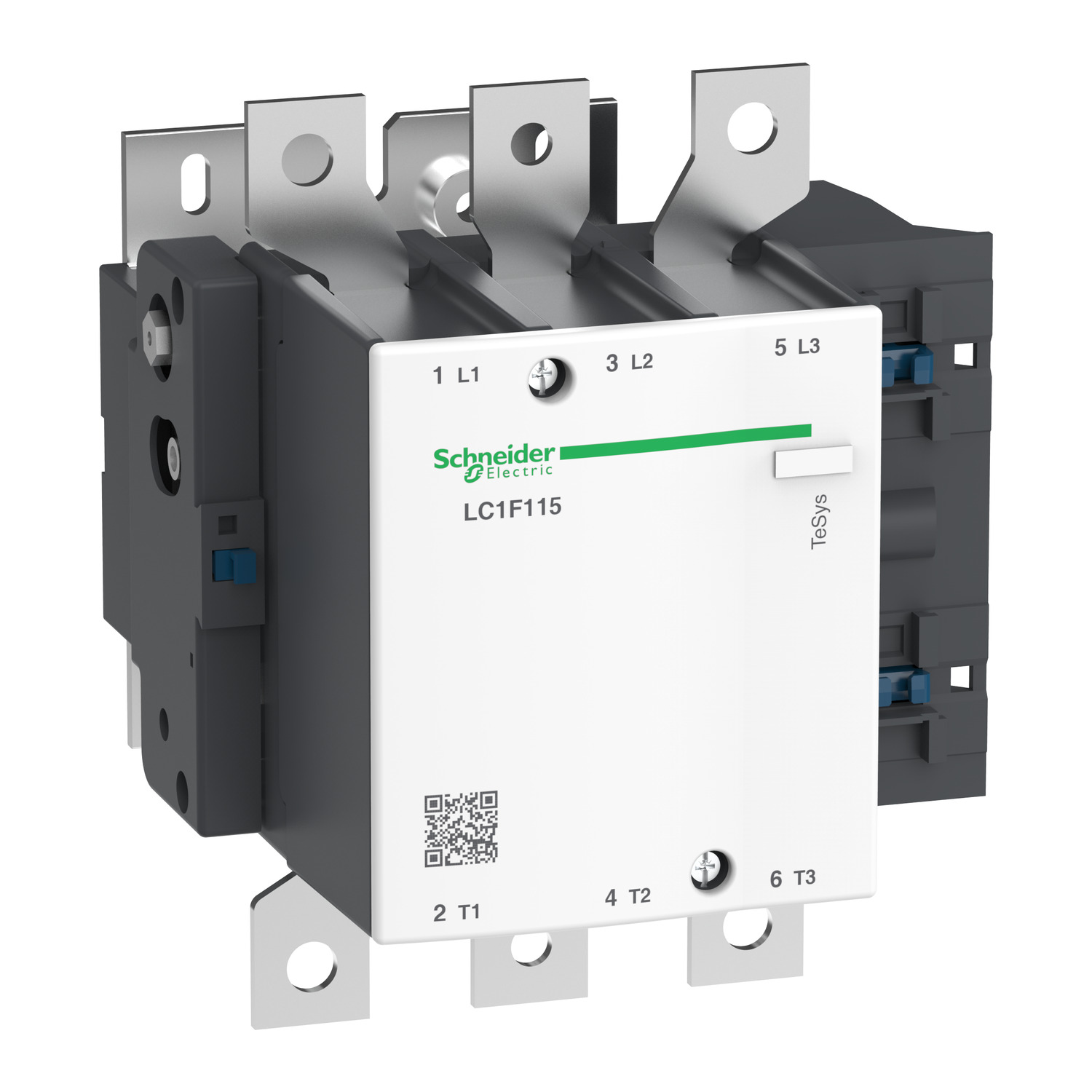

Schneider LC1F115M7 | TeSys F contactor – 3P (3 NO) – AC-3 – <= 440 V 115 A – coil 220 V AC

Schneider LC1F115M7 | TeSys F contactor – 3P (3 NO) – AC-3 – <= 440 V 115 A – coil 220 V AC

Technical Specifications

• Brand: Schneider Electric

• Series: TeSys F

• Model: LC1F115M7

• Contactor Type: 3P (Three Normally Open Contacts)

• Utilization Category: AC-3 (Motor Control)

• Maximum Voltage: ≤ 440 V

• Rated Current: 115 A

• Coil Voltage: 220 V AC, 50/60 Hz

• Electrical Durability: Designed for high switching cycles

• Mounting Type: Panel mounting

• Terminal Type: Bolt-on terminals for secure connections

• Mechanical Life: Millions of operations for long-lasting performance

• Compliance Standards: IEC 60947-4-1 for industrial motor control

Key Features

• High Power Handling: Supports heavy-duty motors and industrial loads up to 115 A.

• Reliable 220 V AC Coil: Ensures stable and efficient operation in industrial control systems.

• Robust and Durable Design: Built for high-performance applications, ensuring long-term reliability.

• Bolt-on Terminals: Provides secure and strong electrical connections for high-current applications.

• Long-Lasting Performance: High mechanical and electrical durability reduces maintenance costs.

• Flexible Mounting: Designed for panel mounting, making it suitable for large control panels.

• Compatible with Accessories: Can be used with overload relays and auxiliary contacts for enhanced functionality.

Applications

• Heavy-Duty Motor Control: Ideal for large three-phase motors in industrial automation and manufacturing.

• Power Distribution Systems: Used in high-power electrical panels for load management.

• Industrial Machinery: Suitable for conveyors, crushers, and high-power equipment.

• Pumping Stations: Reliable for large-scale water treatment, irrigation, and industrial pumps.

• HVAC and Refrigeration: Controls large compressors, chillers, and ventilation systems.
