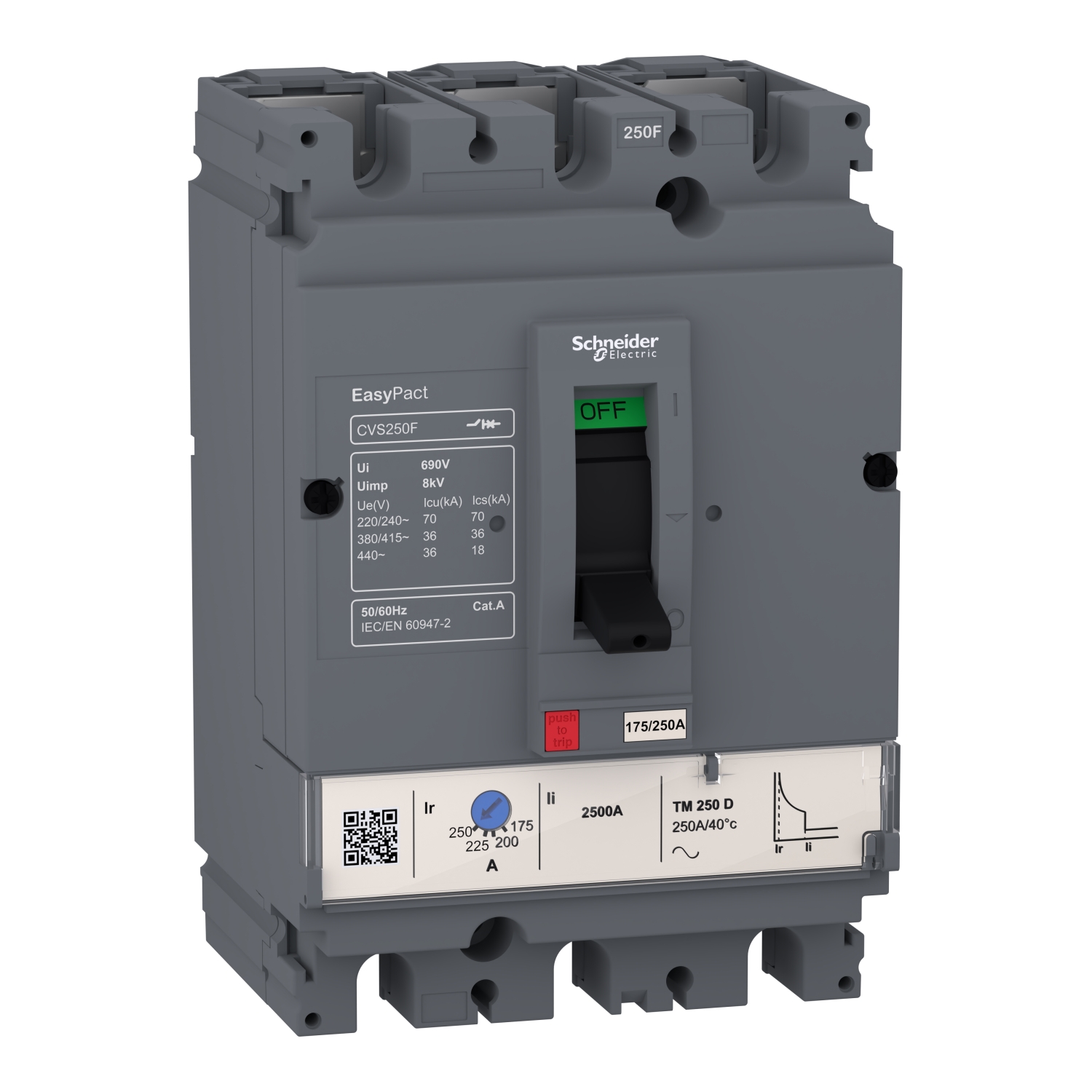

Schneider LV525332 | circuit breaker EasyPact CVS250F, 36 kA at 415 VAC, 200 A rating thermal magnetic TM-D trip unit, 3P 3d

Schneider LV525332 | circuit breaker EasyPact CVS250F, 36 kA at 415 VAC, 200 A rating thermal magnetic TM-D trip unit, 3P 3d



Specifications:

• Type: Circuit Breaker

• Model: EasyPact CVS250F

• Rated Current: 250 Amps

• Rated Voltage: 415 VAC

• Short-Circuit Breaking Capacity: 36 kA (at 415 VAC)

• Trip Unit: Thermal Magnetic TM-D

  • Thermal Protection: Protects against overloads.

  • Magnetic Protection: Provides protection against short circuits.

• Poles: 3P (Three Poles)

• Design: 3d (three-phase, with adjustable settings for protection)

• Application: Suitable for use in industrial, commercial, and residential power distribution systems.

Features:

1. High Breaking Capacity:

   • The EasyPact CVS250F has a short-circuit breaking capacity of 36 kA at 415 VAC, providing excellent protection against high fault currents, ensuring the safety of electrical systems.

2. Thermal Magnetic Trip Unit:

   • The TM-D trip unit combines both thermal and magnetic protection. The thermal function offers overload protection, while the magnetic function provides protection against short circuits.

3. Reliable Performance:

   • The breaker is designed to handle demanding electrical loads with high durability, ensuring the continuous protection of circuits.

4. Adjustable Protection Settings:

   • The TM-D trip unit offers adjustable protection settings, allowing the circuit breaker to be fine-tuned to meet the specific needs of the application. This feature is useful for different operating conditions and requirements.

5. Compact and Easy to Install:

   • The design is compact, making it easy to install and fit into existing electrical systems while providing effective protection.

6. Three-Pole Design:

   • As a 3-pole circuit breaker, the CVS250F is ideal for three-phase power systems, providing protection for all three phases simultaneously.

7. Reliable in Harsh Environments:

   • Built for industrial environments, the breaker is highly durable and offers consistent performance in challenging conditions.

Applications:

• Industrial Power Systems: Suitable for use in factories, manufacturing plants, and other industrial environments requiring robust protection for electrical systems.

• Commercial Buildings: Provides reliable protection for the electrical distribution systems in commercial buildings, ensuring the safety of both equipment and personnel.

• Residential Power Distribution: Can be used in residential electrical panels where high current and short-circuit protection are essential.

• Motor Protection: The breaker can be used in systems where motors and other heavy machinery are in operation, providing protection from both overloads and short circuits
