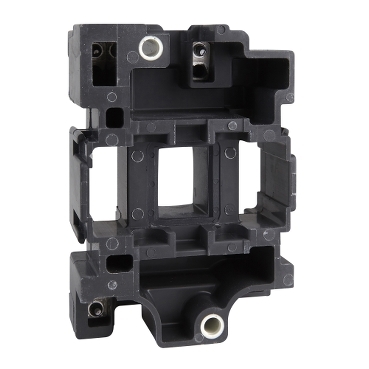

Schneider LX1D6F7 | TeSys D – contactor coil – LX1D6 – 110 V AC 50/60 Hz for 80 & 95 A contactor

Schneider LX1D6F7 | TeSys D – contactor coil – LX1D6 – 110 V AC 50/60 Hz for 80 & 95 A contactor



Technical Specifications:

• Model: Schneider LX1D6F7 | TeSys D Contactor Coil

• Voltage Rating: 110 V AC

• Frequency: 50/60 Hz

• Coil Type: Contactor Coil for TeSys D Contactors

• Current Rating: Suitable for 80 A and 95 A contactors

• Coil Power Supply: AC voltage for energizing the coil

Features:

1. Reliable and Efficient Performance:
   The LX1D6F7 coil is designed to provide consistent energizing and de-energizing of the contactor, ensuring dependable operation in a variety of demanding environments.

2. 110 V AC Operation:
   With a 110 V AC voltage rating, this coil is suitable for systems that operate at this voltage level, providing efficient control of larger electrical systems while maintaining low energy consumption.

3. Wide Compatibility:
   Designed specifically for TeSys D contactors, the LX1D6F7 coil is compatible with 80 A and 95 A rated contactors, making it versatile for use in larger electrical systems requiring reliable switching and control.

4. Compact and Robust Design:
   The coil integrates seamlessly with TeSys D contactors, which are known for their compact size, reliability, and ability to handle high electrical loads in space-constrained environments.

5. Durable Construction:
   Constructed with high-quality materials, the LX1D6F7 coil is designed to withstand industrial environments, offering long-lasting performance and reliability.

Applications:

• Motor Control:
  The LX1D6F7 coil is used in motor control applications, integrated with TeSys D contactors to control large motors in industrial machinery and systems. It helps to ensure smooth and reliable switching for motor operations.

• Industrial Automation:
  It is suitable for industrial automation systems where precise control of electrical circuits, machinery, and processes is essential. The coil ensures reliable switching in automated systems.

• HVAC Systems:
  In HVAC systems, the LX1D6F7 coil is used to control contactors that manage various components such as compressors, fans, and pumps, providing efficient operation of heating, ventilation, and air conditioning units.

• Lighting Control:
  The coil can also be used in lighting control systems, enabling the switching of high-power lighting circuits in commercial, industrial, and large-scale residential buildings.

• Heavy-Duty Electrical Systems:
  Designed for handling high electrical currents, the coil is ideal for controlling large electrical loads in heavy-duty systems such as manufacturing plants and large infrastructure projects.
