Schneider M3TB01S_04 | Supporting Frame, Miluz E, 4 gang, white

Schneider M3TB01S_04 | Supporting Frame, Miluz E, 4 gang, white



Specifications M3TB01S_04

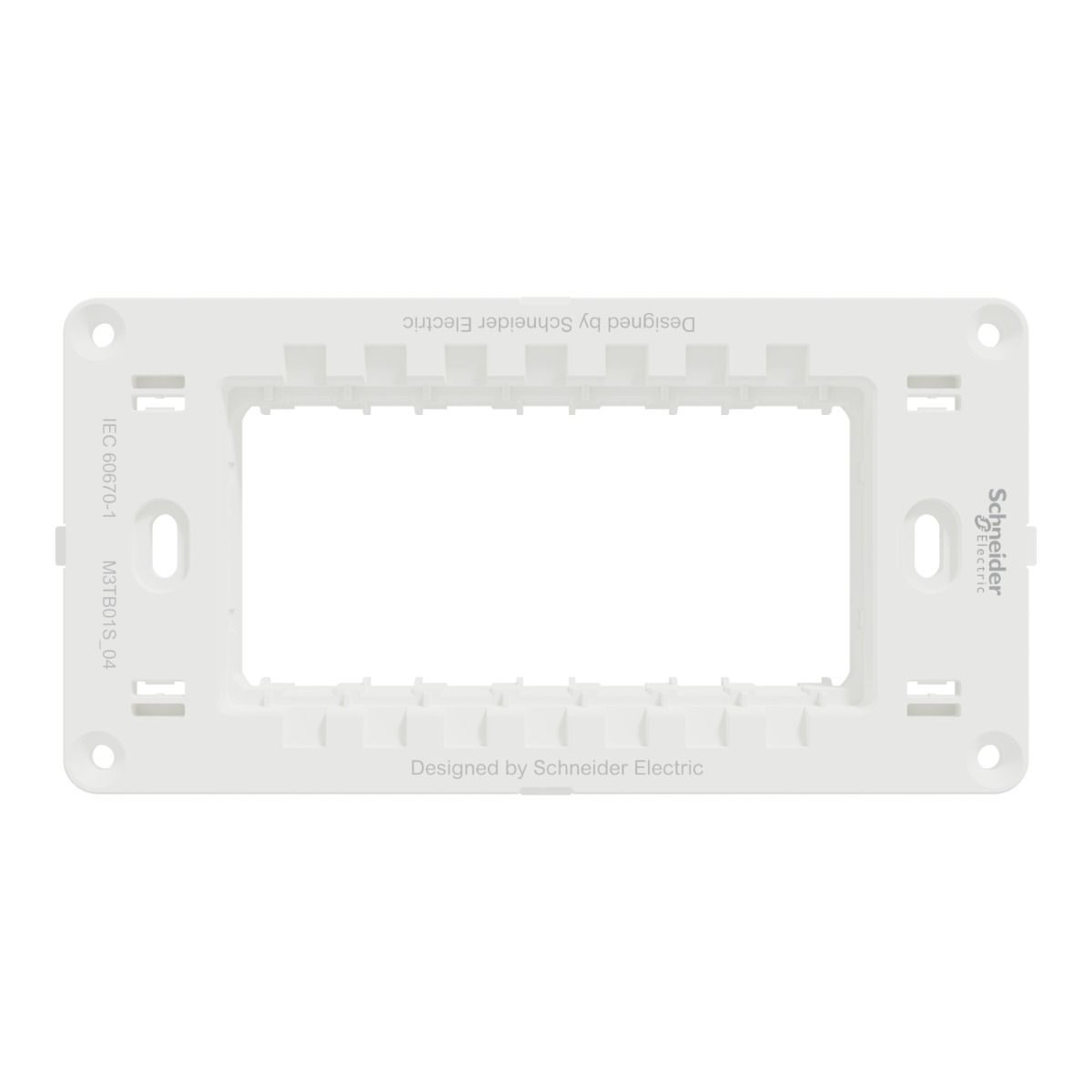

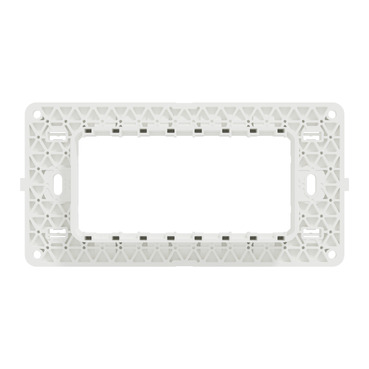

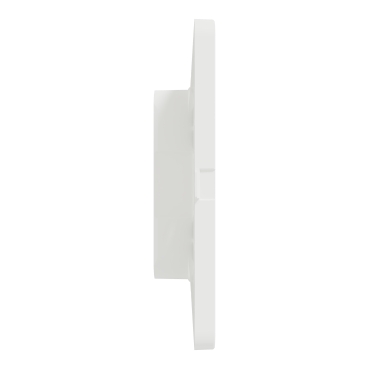

The Schneider M3TB01S_04 is a 4-gang supporting frame designed for use with Miluz E modular wiring devices. It serves as the internal mounting structure that holds up to four mechanisms such as switches, dimmers, sockets, or communication modules in place. This frame is made from durable materials and is intended to be used behind the faceplate, ensuring correct alignment and secure fixing of the installed devices.

• Product reference: M3TB01S_04

• Series: Miluz E

• Type: Supporting frame (sub-frame)

• Number of gangs: 4

• Mounting: Flush-type installation

• Compatibility: Miluz E modular mechanisms

• Material: High-strength engineering plastic

• Color: White

• Standards: Compliant with international mounting and safety standards

Features

The M3TB01S_04 supporting frame is designed to provide a stable and precise mounting solution for multiple wiring devices in a unified and organized layout.

• Holds up to four mechanisms securely in a horizontal arrangement

• Ensures correct alignment of each module within the faceplate, resulting in a clean and professional finish

• Made of high-quality plastic for long-term durability and resistance to deformation

• Supports fast and easy installation with reliable mechanical fit and screw points

• Compatible with all Miluz E series faceplates, enabling design consistency across the installation

• Allows tool-free module clipping for quick maintenance or replacement of components

• Engineered to maintain structural integrity even under repeated use or during high-traffic operations

Applications

The Schneider M3TB01S_04 supporting frame is suitable for structured electrical installations in both residential and commercial settings:

• Residential homes: Living rooms, kitchens, bedrooms, or hallways where multiple switches and outlets are grouped

• Offices and workspaces: Multi-module arrangements for switches, data ports, and power outlets

• Hotels and apartments: Wall panels combining lighting controls, bell switches, and charging points

• Retail environments: Power and communication setups in concealed panels

• Public buildings and schools: Organized installation of control devices in corridors or classrooms
