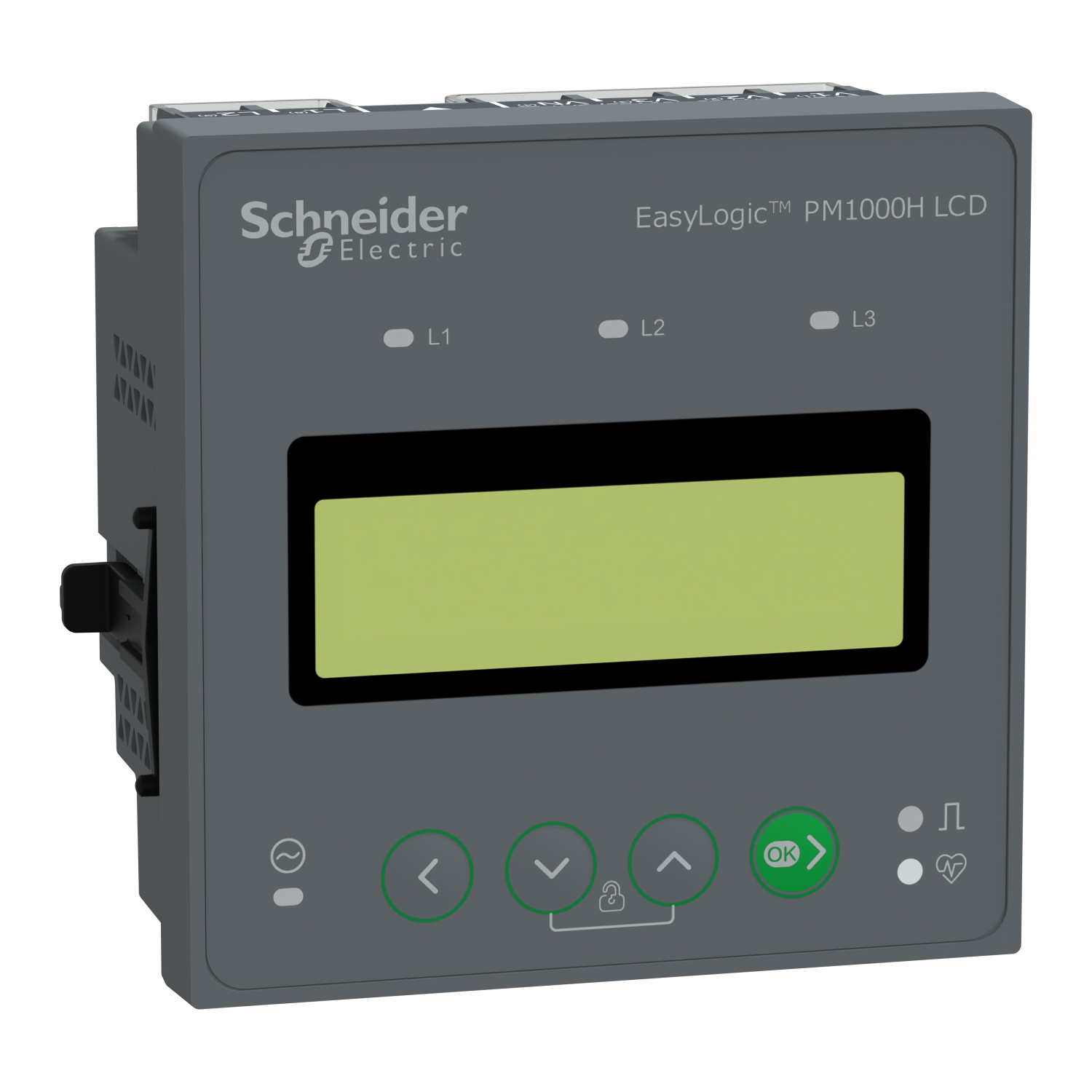

Schneider METSEPM1225HCL1 | panel mount meter EasyLogic PM1225H, class 1, RS485, LCD

Schneider METSEPM1225HCL1 | panel mount meter EasyLogic PM1225H, class 1, RS485, LCD

. Technical Specifications

• Manufacturer: Schneider Electric

• Product Series: EasyLogic PM1200

• Model Number: METSEPM1225HCL1

• Meter Type: Digital panel-mount energy meter

• Accuracy Class: Class 1 (per IEC 62053-21 for active energy)

• Measurement Type: True RMS, 3-phase or single-phase

• Rated Voltage Input:

  • Up to 480 V AC (line-to-line)

• Current Input:

  • Via external current transformers (CTs) – 5 A nominal

• Frequency: 50/60 Hz

• Display: Backlit LCD (7-segment, 3 lines)

• Communication Interface: RS-485 port

• Protocol Supported: Modbus RTU

• Mounting Type: Panel-mounted (DIN 96 x 96 mm cutout)

• Power Supply:

  • Auxiliary voltage: 80 to 300 V AC / 90 to 300 V DC

• Compliance: IEC 62053-21, IEC 61010-1, RoHS

. Key Features

• High-visibility LCD for easy local reading of all key electrical values

• Class 1 accuracy for active energy measurements

• RS-485 Modbus RTU for easy integration into BMS or SCADA systems

• Compact and modular design for ease of installation in panels

• Measures:

  • Voltage (phase & line)

  • Current (per phase and total)

  • Active, reactive & apparent power

  • Power factor and frequency

  • Energy (kWh, kvarh, kVAh)

• Configurable CT/PT ratio settings

• Password protection for setup parameters

. Typical Applications

The EasyLogic PM1225H is widely used for:

• Electrical distribution panels (main or sub-metering)

• Commercial buildings and shopping centers

• Industrial automation systems

• Backup power and generator monitoring

• Energy audits and load profiling

• Tenant metering and energy cost allocation

. Advantages

• Cost-effective metering solution with essential features

• Reliable and accurate measurements in Class 1 applications

• Easy installation with standard DIN cutout and terminal labeling

• Integrated communication for remote monitoring and data logging

• Designed and tested to Schneider Electric’s global quality standards

• Expandable with accessories such as communication gateways and displays
