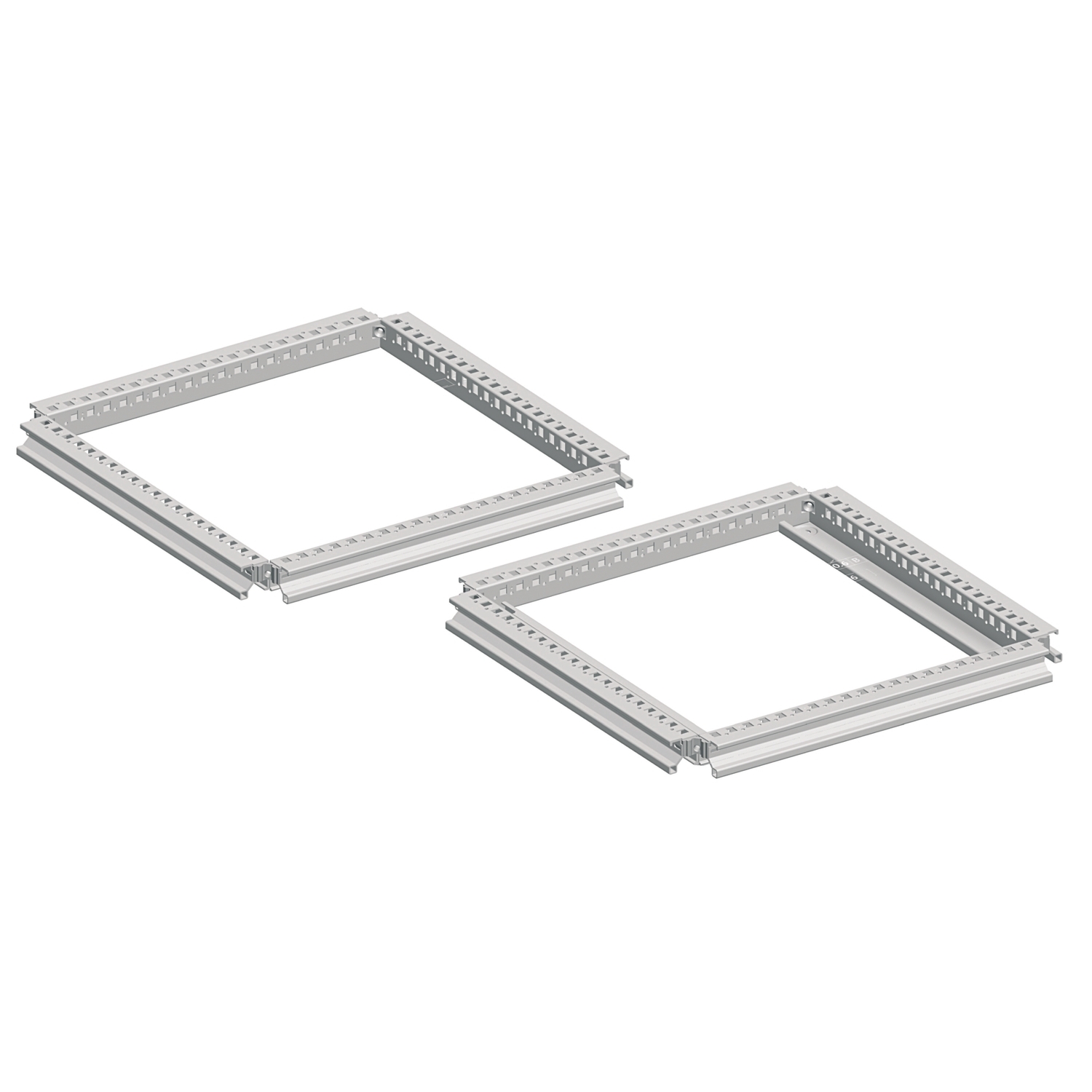

Schneider NSYSFC126 | Spacial SF bottom and top frame – 1200×600 mm

Schneider NSYSFC126 | Spacial SF bottom and top frame – 1200×600 mm

Specifications

The Schneider NSYSFC126 is a bottom and top frame accessory designed for the Spacial SF range of enclosures. It provides structural support, enhanced rigidity, and compatibility with additional modular components. Built to Schneider Electric’s high manufacturing standards, this frame is a key structural element in modular enclosure systems.

• Product Code: NSYSFC126

• Product Type: Bottom and Top Frame

• Series: Spacial SF Modular Enclosure System

• Material: Steel

• Finish: Painted or galvanized (depending on configuration)

• Frame Dimensions: 1200 mm (height) x 600 mm (width)

• Mounting Type: Fits at the top and bottom of Spacial SF enclosures

• Compatibility: Designed for use with other Schneider Spacial SF enclosure components

• Standard Compliance: Manufactured in accordance with international standards for industrial enclosures

Features

1. Strong Structural Support
   Enhances the mechanical rigidity of Spacial SF enclosures, especially in large cabinet configurations.

2. Precise Fit and Finish
   Manufactured with tight tolerances to ensure a perfect fit with Spacial SF side panels, doors, and accessories.

3. Modular Design
   Enables integration with other components like mounting plates, side panels, and cable entries, simplifying assembly.

4. Durable Material
   Made of high-quality steel, ensuring long-lasting performance even in demanding environments.

5. Easy Assembly
   Designed for quick installation without the need for complex tools, reducing installation time and effort.

6. Optimized for Customization
   Offers flexibility for adapting to different enclosure configurations or expanding existing installations.

Applications

The Schneider NSYSFC126 frame is used in various settings where modular enclosures are needed for electrical, electronic, or industrial control systems. Common applications include:

1. Industrial Control Panels
   Forms part of modular cabinets that house PLCs, drives, and control devices in manufacturing plants.

2. Electrical Distribution Systems
   Supports electrical panels used in power distribution, allowing secure housing for breakers and switchgear.

3. IT and Network Cabinets
   Utilized in structured cabling systems or server racks where customized modular designs are essential.

4. Automation and Process Control
   Provides a flexible framework for control cabinets used in automated production lines and process plants.

5. Building Management Systems (BMS)
   Forms the structure of enclosures used in HVAC, lighting control, and energy monitoring systems.

6. Infrastructure and Utilities
   Used in enclosures installed in transportation networks, utilities, and public service infrastructure for equipment protection.
