Description

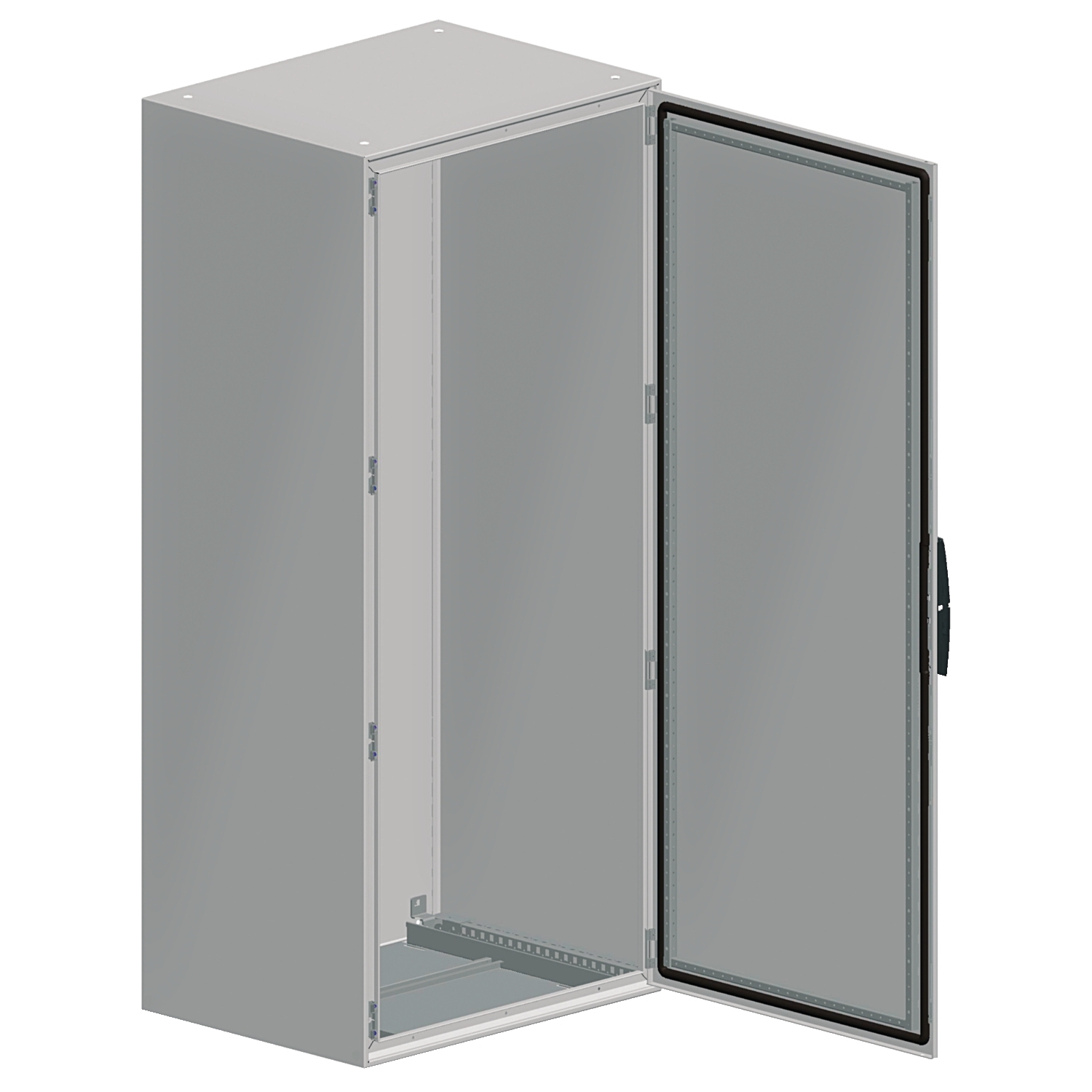

Schneider NSYSM14830 | Spacial SM compact enclosure without mounting plate – 1400x800x300 mm

Technical Specifications

• Product Reference: NSYSM14830

• Range: Spacial SM

• Enclosure Type: Compact floor-standing enclosure

• Material: Galvanized steel

• Surface Finish: Epoxy-polyester powder coating

• Color: Light grey (RAL 7035)

• Dimensions:

  • Height: 1400 mm

  • Width: 800 mm

  • Depth: 300 mm

• Door Configuration: Single front door with concealed hinges and 3-point locking system

• Mounting Plate: Not included

• Degree of Protection: IP55 (according to IEC 60529)

• Mechanical Impact Resistance: IK10 (according to IEC 62262)

• Standards Compliance: IEC 62208, IEC 60529, IEC 62262

• Delivered With:

  • Door

  • Body

  • Locking system

  • Gland plate

  • Mounting accessories (excluding mounting plate)

Key Features

• Robust steel construction ensures high mechanical protection and resistance to harsh industrial environments.

• IP55 rating provides strong protection against dust ingress and water jets, making it suitable for indoor and semi-outdoor applications.

• Spacious interior allows for flexible component arrangement and future system expansion.

• 3-point locking system improves door security and ensures tight sealing.

• Removable gland plates enable easy cable management and integration with existing wiring systems.

• Modular design allows for optional accessories such as mounting plates, inner doors, ventilation kits, and lifting brackets.

Applications

The NSYSM14830 enclosure is ideal for a wide variety of applications requiring durable, protective housing for electrical or automation equipment, including:

• Electrical distribution panels

• Automation and control systems

• PLC and drive installations

• Building management systems

• Industrial machine panels

• Data and telecom systems

• Power factor correction assemblies
