Description

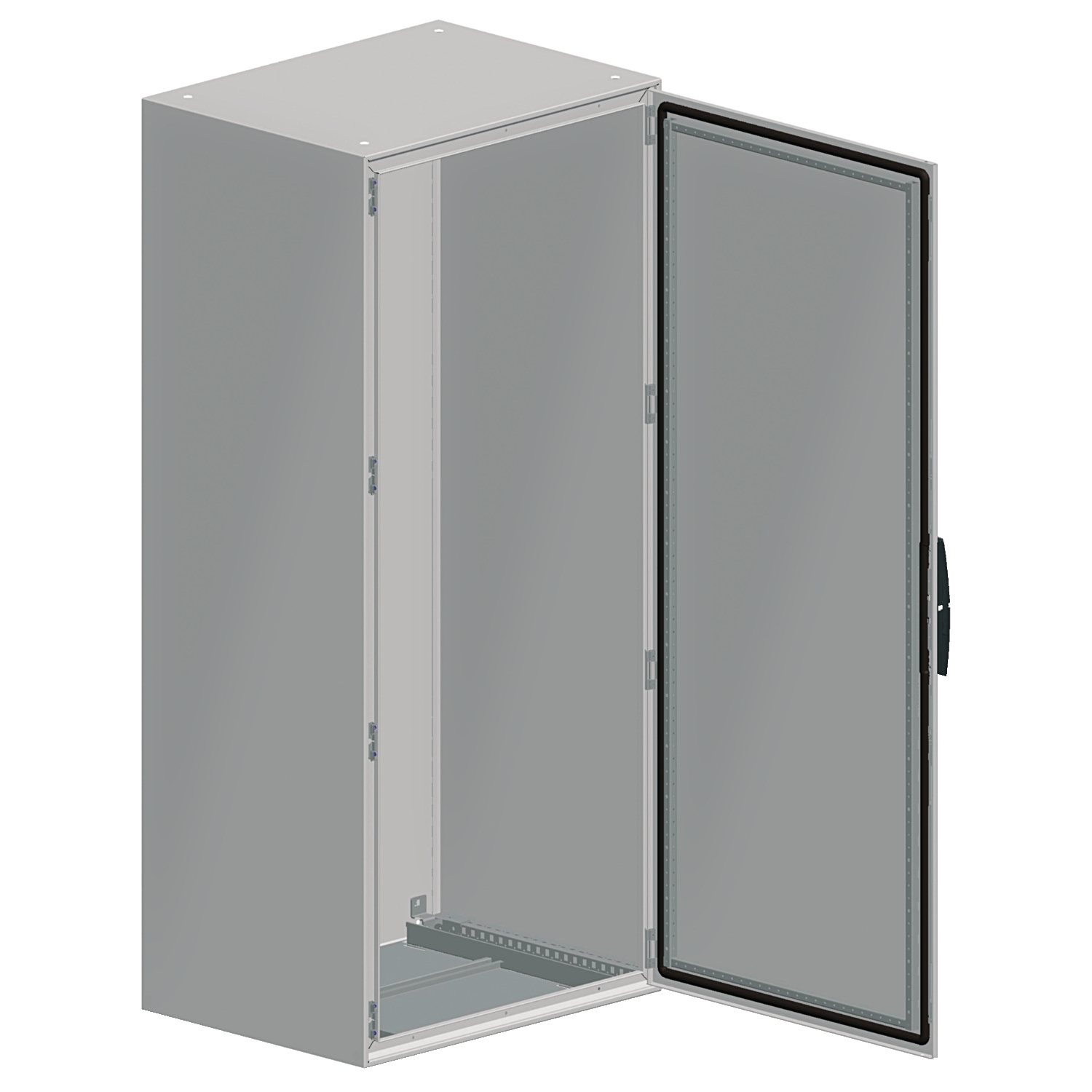

Schneider NSYSM20860 | PanelSeT SM compact enclosure without mounting plate – 2000x800x600 mm

Technical Specifications:

• Model: NSYSM20860

• Series: PanelSeT SM

• Dimensions: 2000 mm (height) × 800 mm (width) × 600 mm (depth)

• Type: Floor-standing compact enclosure without mounting plate

• Material: Galvanized steel

• Surface Finish: Epoxy-polyester powder coating in light grey (RAL 7035)

• Ingress Protection Rating: IP55 (protection against dust and low-pressure water jets)

• Impact Resistance Rating: IK10 (resistant to strong mechanical impacts)

• Operating Temperature Range: -25°C to +60°C

• Standards Compliance: IEC 62208, IEC 60529, RoHS, REACH

• Approximate Weight: Around 110–120 kg (depending on accessories and configuration)

Key Features:

• Robust Steel Construction: Designed for durability and protection in industrial environments

• High IP & IK Ratings: Ensures strong resistance to dust, water jets, and mechanical impacts

• No Mounting Plate Included: Provides complete flexibility for internal layout and equipment installation

• Spacious Interior: 800 mm width and 600 mm depth support complex installations with ample space for cabling and components

• Secure and Safe: Reinforced door with locking mechanism to prevent unauthorized access

• Accessory Compatibility: Supports a wide range of Schneider Electric accessories (mounting profiles, cable management, ventilation, etc.)

• Environmentally Compliant: Certified for global environmental and safety regulations

• Smooth Industrial Finish: Powder-coated for enhanced resistance to corrosion and wear

Applications:

• Power Distribution Panels: Suitable for housing electrical distribution systems in industrial facilities

• Control Systems Cabinets: Ideal for enclosing PLCs, drives, relays, and automation devices

• Renewable Energy Installations: Provides a protected environment for control systems in solar or wind energy applications

• Telecommunications & IT: Can accommodate networking equipment in demanding operational settings

• Large Industrial Machinery: Used as external control cabinets alongside heavy equipment

• Infrastructure & Utility Projects: Deployed in public utilities, water plants, and transport networks

• Custom Engineering Solutions: Offers a flexible enclosure for various industrial and commercial electrical applications
