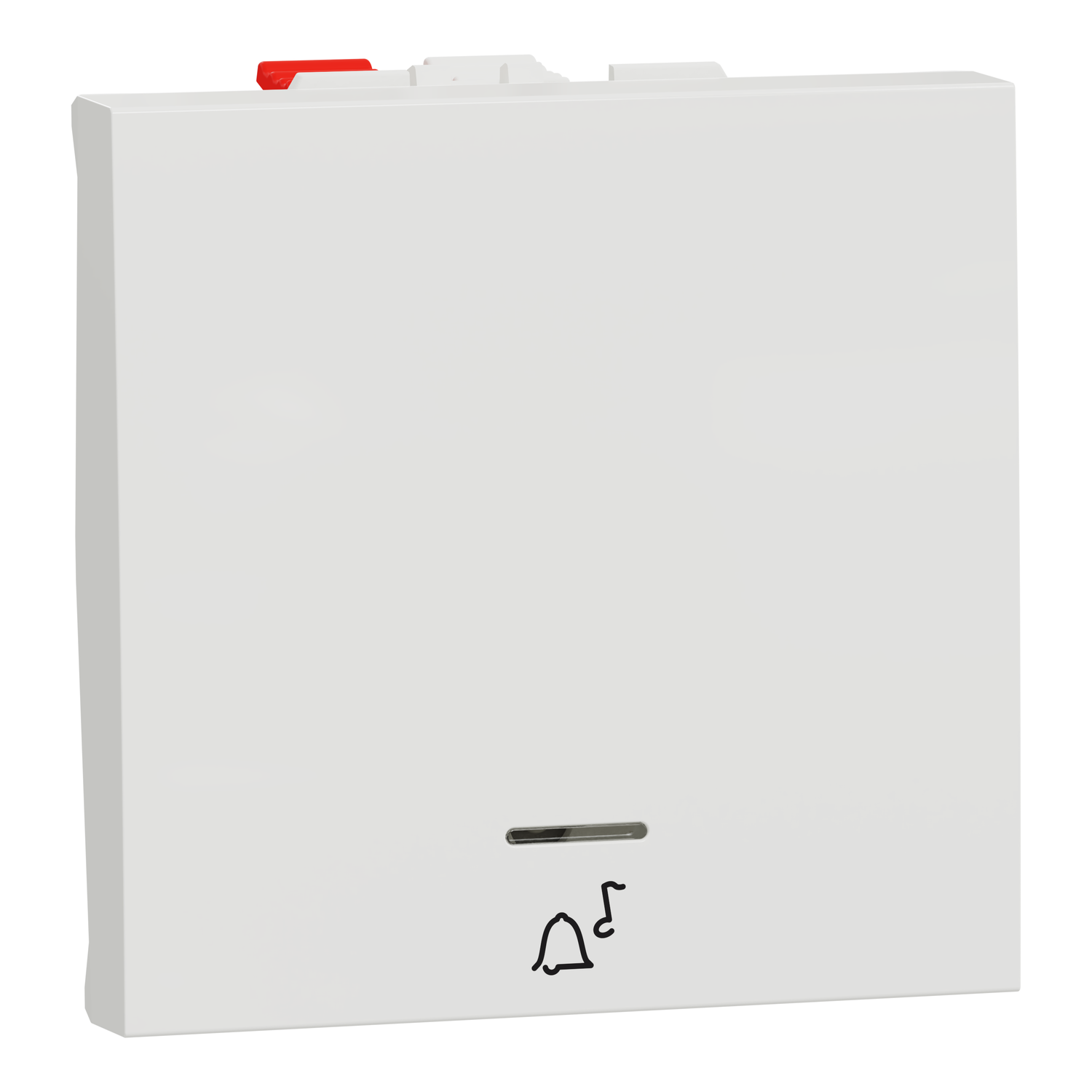

Schneider NU320618CN | Push-button, New Unica, mechanism, + NO push-button, 10A, 2 modules, screwless terminals, IP4X, white

Schneider NU320618CN | Push-button, New Unica, mechanism, + NO push-button, 10A, 2 modules, screwless terminals, IP4X, white

Technical Specifications

• Product Type: Push-Button Switch Mechanism

• Series: New Unica

• Model Number: NU320618CN

• Contact Type: Normally Open (NO)

• Rated Current: 10 A

• Rated Voltage: 250 V AC

• Modules: 2 (modular design for flexibility)

• Terminal Type: Screwless terminals (tool-free wiring)

• Ingress Protection: IP4X (protection against solid objects >1 mm)

• Color: White

• Mounting: Flush-mount in combination with New Unica fixing frames and cover plates

• Conductor Size Compatibility: Up to 2.5 mm²

• Material Quality: High-grade, durable plastic

• Ambient Temperature Range:

  • Operating: -5°C to +40°C

  • Storage: -10°C to +70°C

• Standards Compliance: IEC 60669-1

• Certifications: CE marked

Key Features

• Normally Open Function: The push-button closes the circuit only while pressed, ideal for momentary control of lighting or automation inputs.

• Screwless Terminals: Enables quick, secure, and tool-free wiring for faster installation and reduced labor time.

• Modular Design: Occupies 2 modules and fits seamlessly within the New Unica frame system, offering flexibility in configuration.

• Modern Aesthetic: Clean white finish complements a wide range of interior designs.

• IP4X Rating: Ensures protection against accidental contact with internal parts for enhanced safety.

• Durability and Reliability: Built to Schneider Electric’s high standards for long-lasting performance.

Applications

The Schneider NU320618CN push-button is suitable for various control applications, including:

• Lighting Control: Momentary switching for staircases, hallways, or corridors.

• Home Automation Inputs: As a manual input for smart lighting or control systems.

• Door Entry or Call Systems: Triggering bells, buzzers, or intercoms.

• Commercial Installations: Suitable for offices, hotels, schools, and retail spaces.

• Industrial Panel Control: As an auxiliary push-button in low-power control panels.
