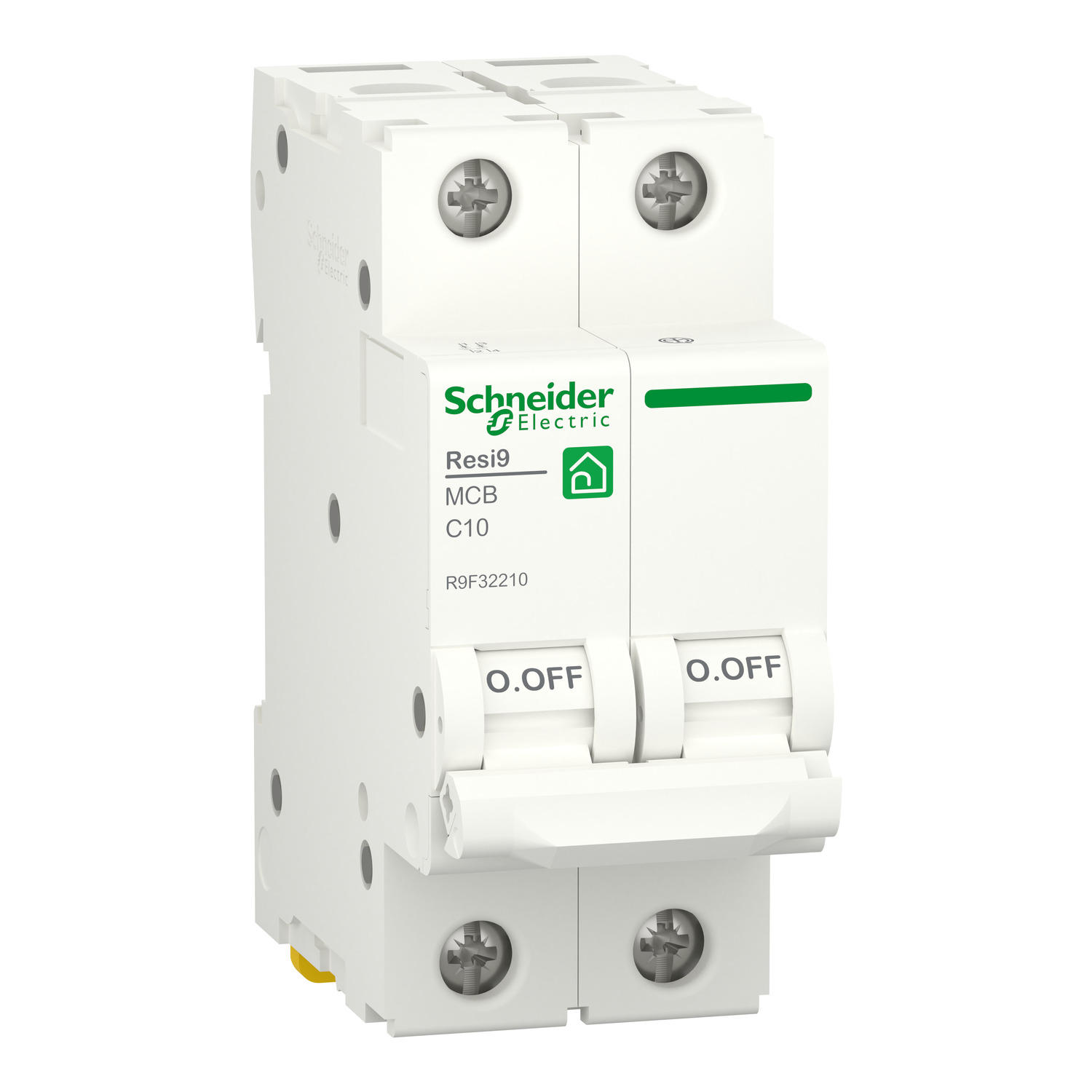

Schneider R9F32210 | Miniature circuit breaker (MCB), Resi9, 2P, 10A, C curve, 4500A (IEC/EN 60898-1)

Technical Specifications

• Product Model: R9F32210

• Series: Resi9

• Type: Miniature Circuit Breaker (MCB)

• Number of Poles: 2P (phase and neutral)

• Rated Current: 10 A

• Tripping Curve: C Curve (trips between 5 to 10 times the rated current)

• Rated Voltage: 230/400 V AC

• Rated Frequency: 50/60 Hz

• Breaking Capacity: 4500 A (according to IEC/EN 60898-1)

• Mounting Type: DIN rail

• Terminal Type: Tunnel terminals

• Conductor Size Range:

  • Rigid cable: 1.5 to 25 mm²

  • Flexible cable: 1.5 to 16 mm²

• IP Rating: IP20 (can reach IP40 when installed in enclosure)

• Ambient Operating Temperature: -5°C to +60°C

• Storage Temperature: -40°C to +85°C

• Standards Compliance: IEC/EN 60898-1

• Dimensions (H x W x D): Approx. 82 x 36 x 74 mm

• Certifications: CE marked

Key Features

• C Curve Protection: Designed to handle moderate inrush currents, such as those from lighting circuits or small motor loads.

• Dual Pole Safety: Simultaneous disconnection of both phase and neutral ensures safer maintenance and circuit isolation.

• Compact Design: Fits easily in household distribution boards and consumer units.

• User-Friendly Terminals: Secure wiring with wide cable capacity, ensuring quick installation.

• Reliable Performance: Offers dependable protection with fast reaction time in the event of overcurrent or short circuits.

• Enhanced Safety: Flame-retardant casing and fault-proof construction make it suitable for residential environments.

Applications

The Schneider R9F32210 is ideal for various residential electrical circuits, offering safe protection in the following scenarios:

• Lighting Circuits: Prevents damage from overloads and short circuits in home lighting systems.

• Socket Outlets: Suitable for protecting general-use wall sockets in bedrooms, living rooms, and kitchens.

• Small Appliances: Guards devices such as fans, water dispensers, or routers.

• Consumer Units: Perfect fit for modern residential distribution boards.

• Renovation Projects: Easy to install in both new builds and upgrades of existing systems.
