Description

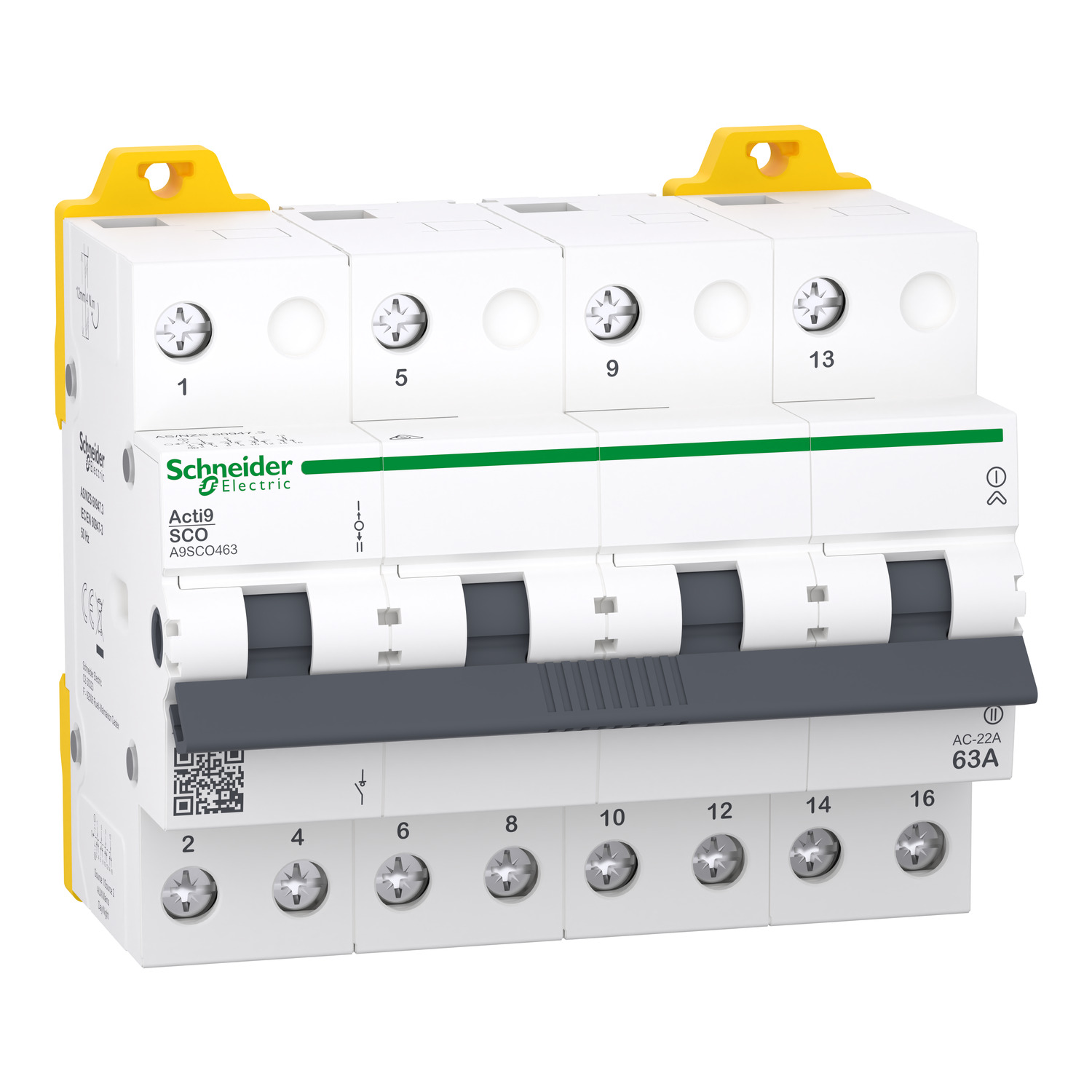

Schneider R9SCO463 | Changeover switch, Acti9, 4P, 63A, 400/415VAC

Key Specifications

• Rated Current (In): 63 Amps

• Rated Voltage (Un): 400/415 V AC

• Number of Poles: 4 (three-phase + neutral)

• Device Type: Changeover Switch

• Protection Rating: IP20 (Protection against solid objects larger than 12.5 mm)

• Frequency: 50/60 Hz

• Electrical Endurance: 6 kA

• Mechanical Endurance: 10,000 operating cycles

• Dimensions:

  • Width: 85 mm

  • Height: 105 mm

  • Depth: 44 mm

• Weight: Approximately 448 grams

Features and Benefits

• Reliable Power Source Switching: Provides safe manual switching between two power sources, ensuring uninterrupted power supply and minimizing downtime in critical systems.

• Compact and Easy Installation: The switch is designed to be compact, allowing for easy installation on a DIN rail within electrical panels, saving space and simplifying setup.

• Position Indicator: The switch features a position indicator that shows the current switching state, helping operators verify the status of the switch easily.

• Locking Option: The switch allows for a locking mechanism to prevent unauthorized operation, enhancing safety during maintenance or operation.

• High Durability: Built to withstand intensive use, the switch offers a long operational life with up to 10,000 mechanical cycles.

Applications and Uses

• Industrial and Commercial Facilities: Ensures reliable power switching between different sources, ideal for factories, offices, and commercial buildings.

• Residential and Commercial Buildings: Provides a safe and effective means of switching between power sources, guaranteeing continuous energy supply to critical equipment.

• Renewable Energy Systems: Used in managing power transitions between the grid and renewable energy sources, such as solar panels, for optimized energy management.
