Description

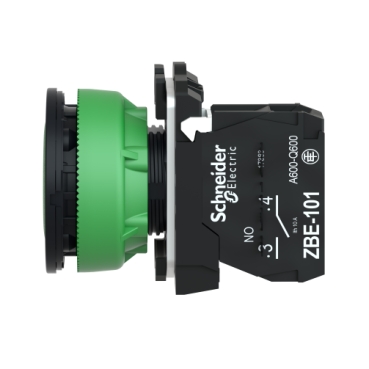

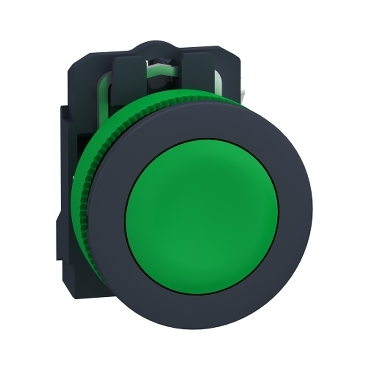

Schneider XB5FA31 | Push button flush mounted, plastic, green, Ø30, spring return, unmarked, 1 NO



Schneider XB5FA31 | Flush-Mounted Push Button – Overview

The Schneider Electric XB5FA31 is a flush-mounted push button from the Harmony XB5F series. Designed for industrial control applications, it features a green actuator, spring return mechanism, and a single normally open (1 NO) contact.

General Specifications

• Product name: XB5FA31

• Product type: Flush-mounted push button

• Series: Harmony XB5F

• Mounting type: Flush mounting

• Body material: High-quality plastic

• Color: Green

• Button marking: Unmarked (plain head)

• Actuation type: Spring return (momentary operation)

• Contact configuration: 1 NO (Normally Open)

Dimensions and Design

• Operator diameter: Ø30 mm

• Front panel cut-out: 30.5 mm standard round hole

• Design: Sleek, modern, and ergonomic

• Mounting collar and fixing included for secure installation

• Minimal protrusion from panel surface for a clean look

Electrical Characteristics

• Contact type: Snap action

• Rated insulation voltage: Typically 600V (check application specifics)

• Rated operational current: Depends on contact block configuration

• Conforming standards: IEC 60947-5-1, UL, CSA

Mechanical and Environmental Features

• Mechanical durability: Up to 10 million operations

• Protection rating: IP66, IP67, IP69, and IP69K (when properly installed)

• Operating temperature: -40°C to +70°C

• Vibration resistance and shock resistance: High industrial-grade tolerance

Applications

• Industrial control panels

• Machine start/stop commands

• Operator interfaces in automation systems

• Control stations and equipment panels

Benefits

• Stylish flush-mounted design for modern panels

• High durability and long mechanical life

• Easy to install and wire

• Resistant to harsh industrial environments

• Suitable for a wide range of control applications
