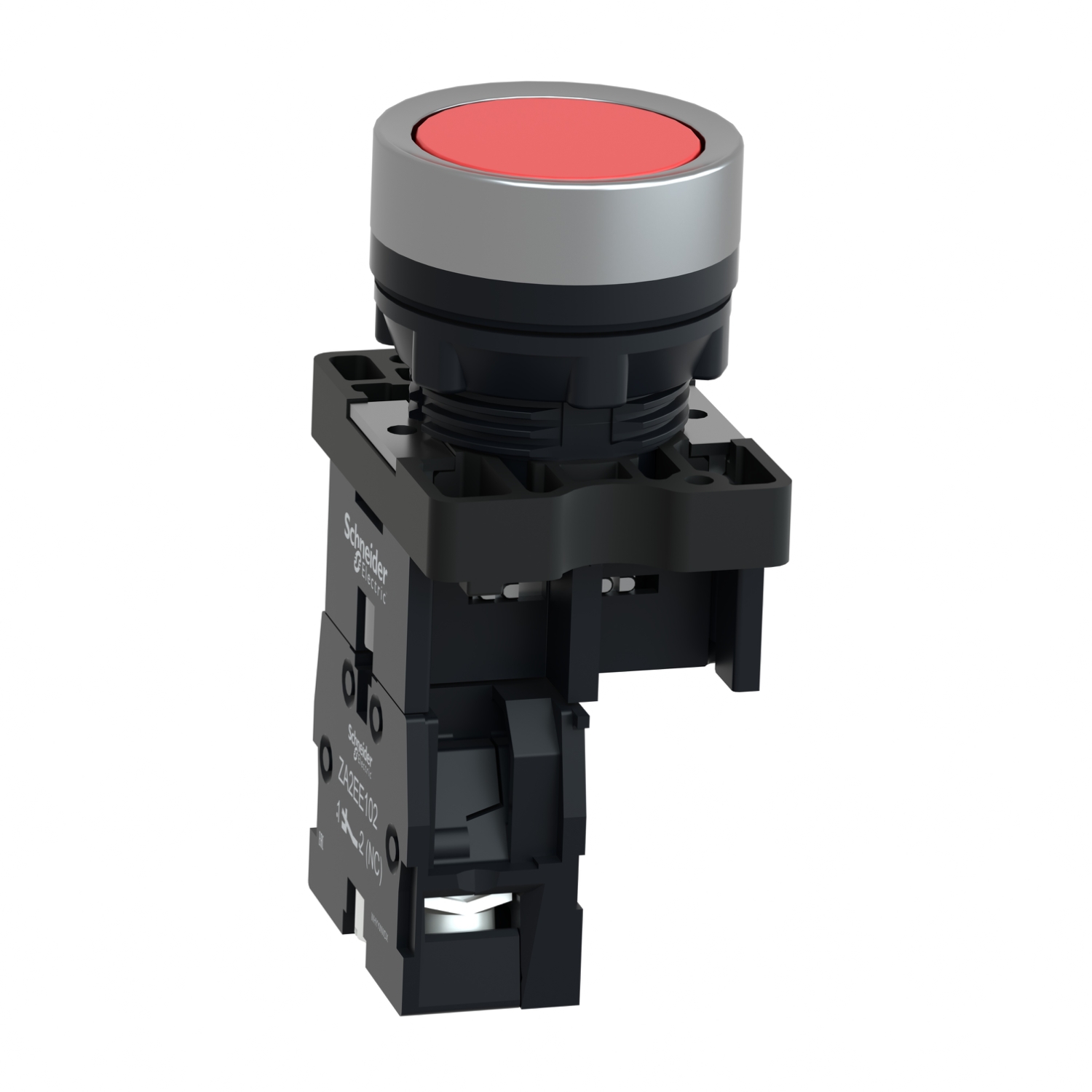

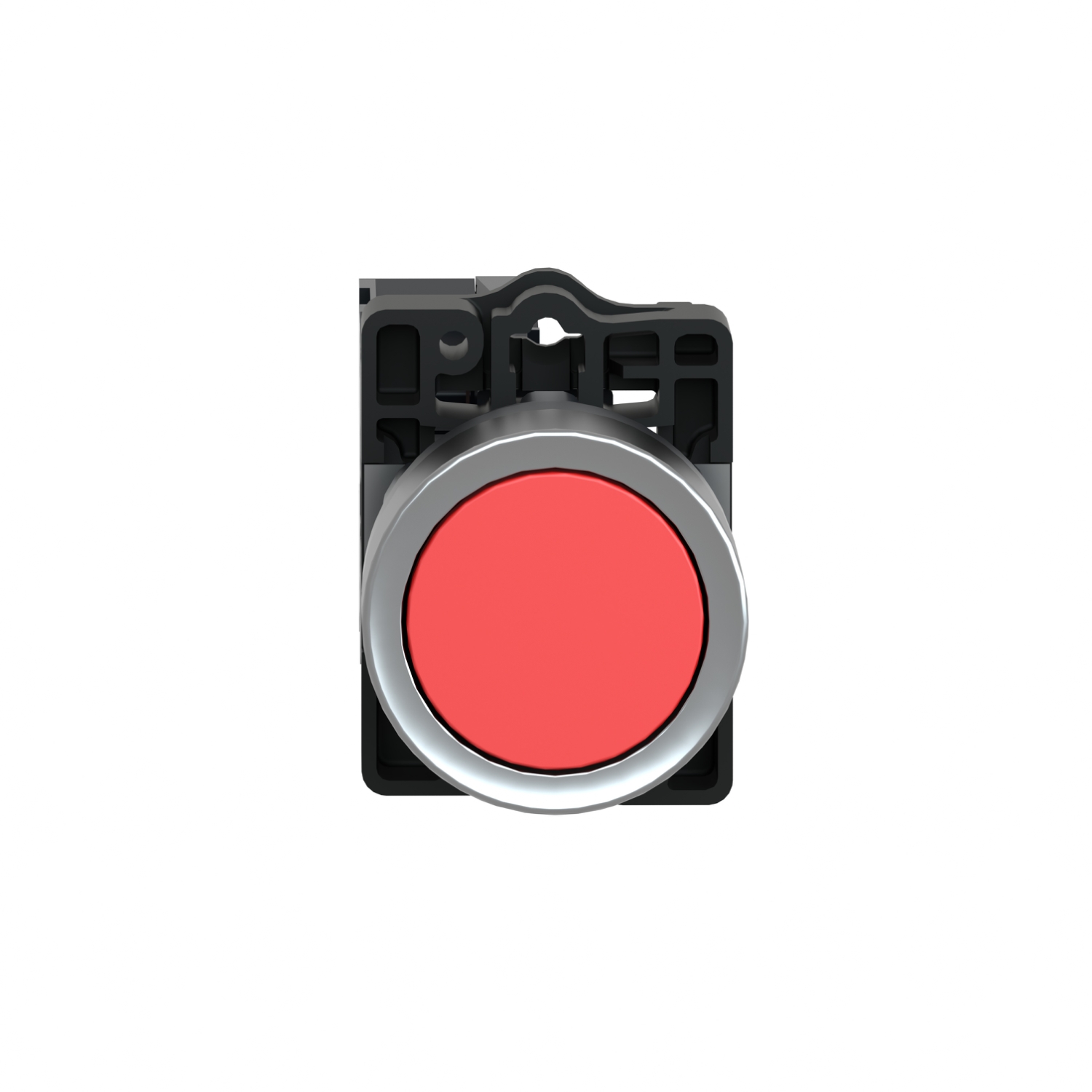

XA2EH042 | Round red push-button Ø 22 -push push – 1NO

Description

brands	Schneider Electric
Range of product	Easy Harmony XA2
Product or component type	Complete push-button
Device short name	XA2
bezel material	Plastic
Height	42 mm
Width	30 mm
Depth	67.7 mm
Net weight	0.04 kg
Mechanical durability	1000000 cycles
Tightening torque	0.8 N.m
Short-circuit protection	10 A gL fuse conforming to IEC 60269-1
[Ui] rated insulation voltage	600 V conforming to IEC 60947-1
Electrical durability	500000 cycles, AC-15, 3 A at 230 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-4 500000 cycles, DC-13, 0.2 A at 110 V, operating rate <60 cyc/mn, load factor: 0.5
Fixing collar material	Plastic
Shape of signaling unit head	Round
