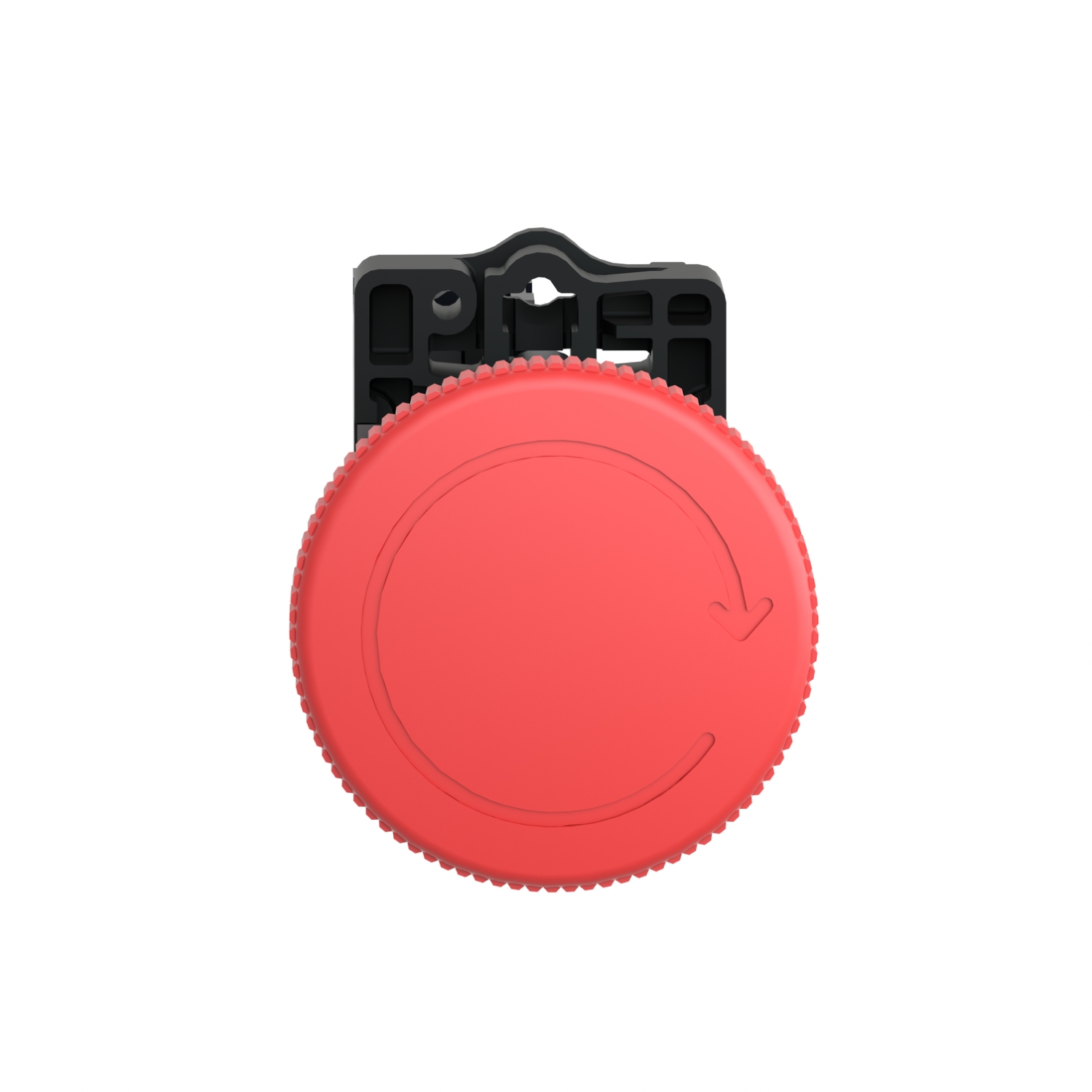

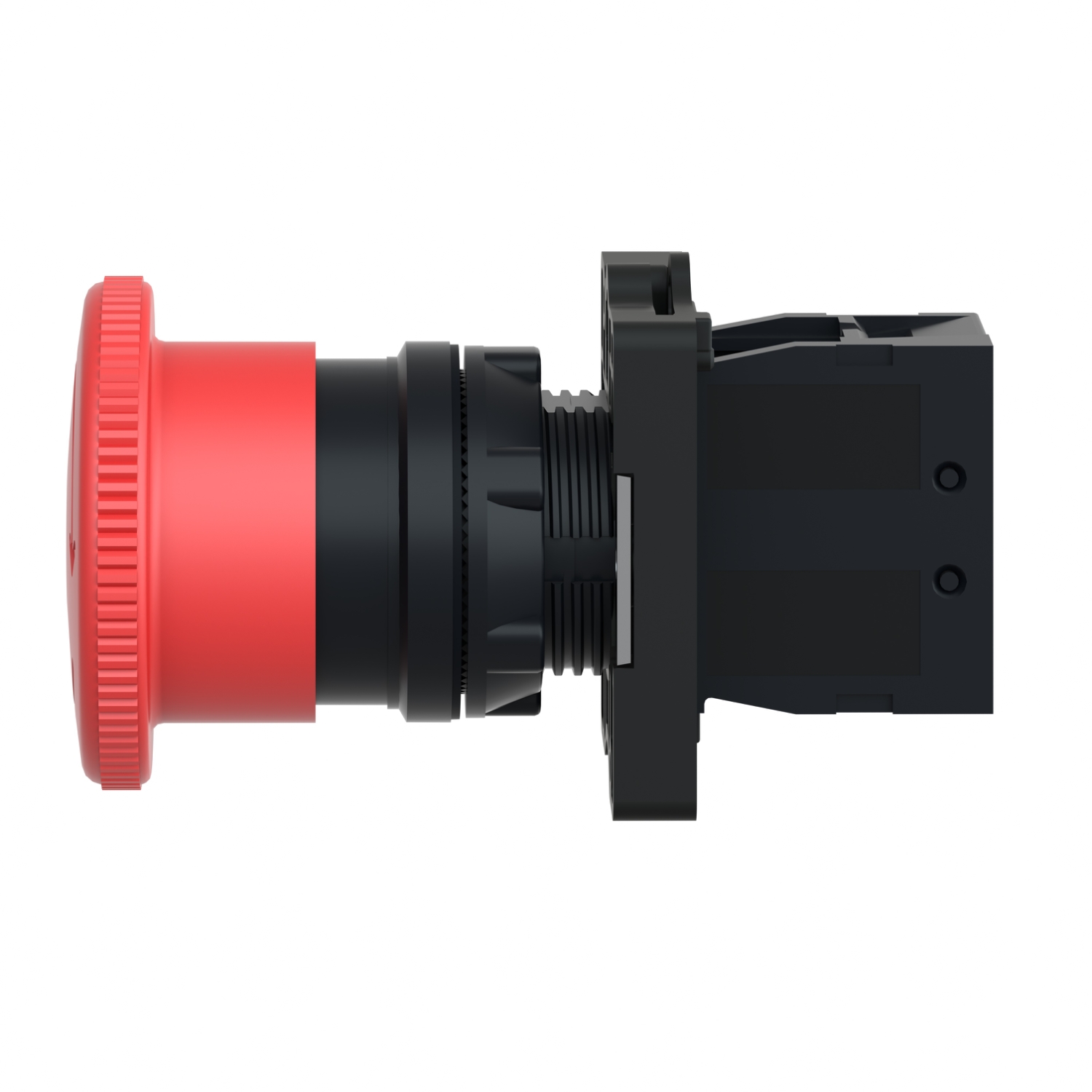

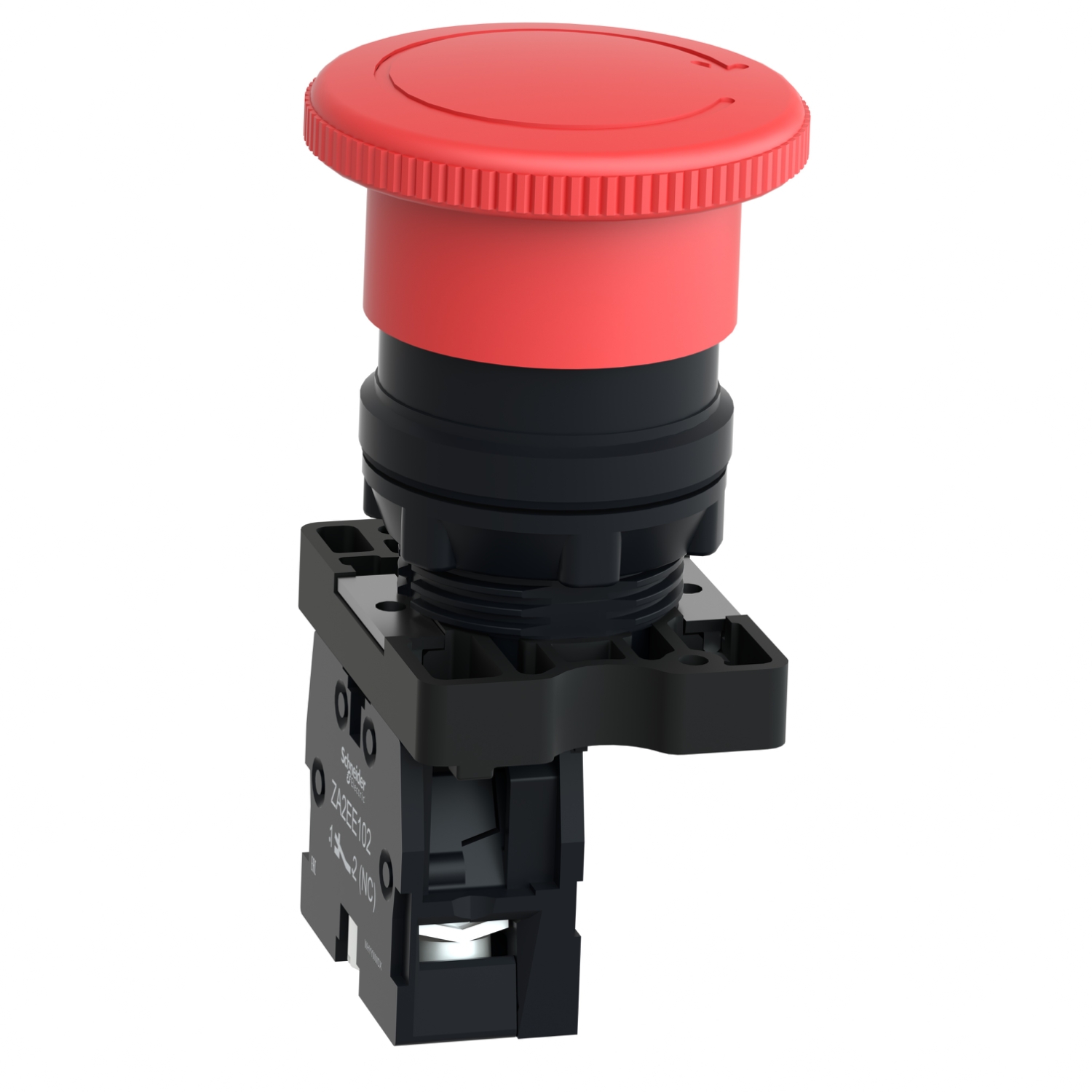

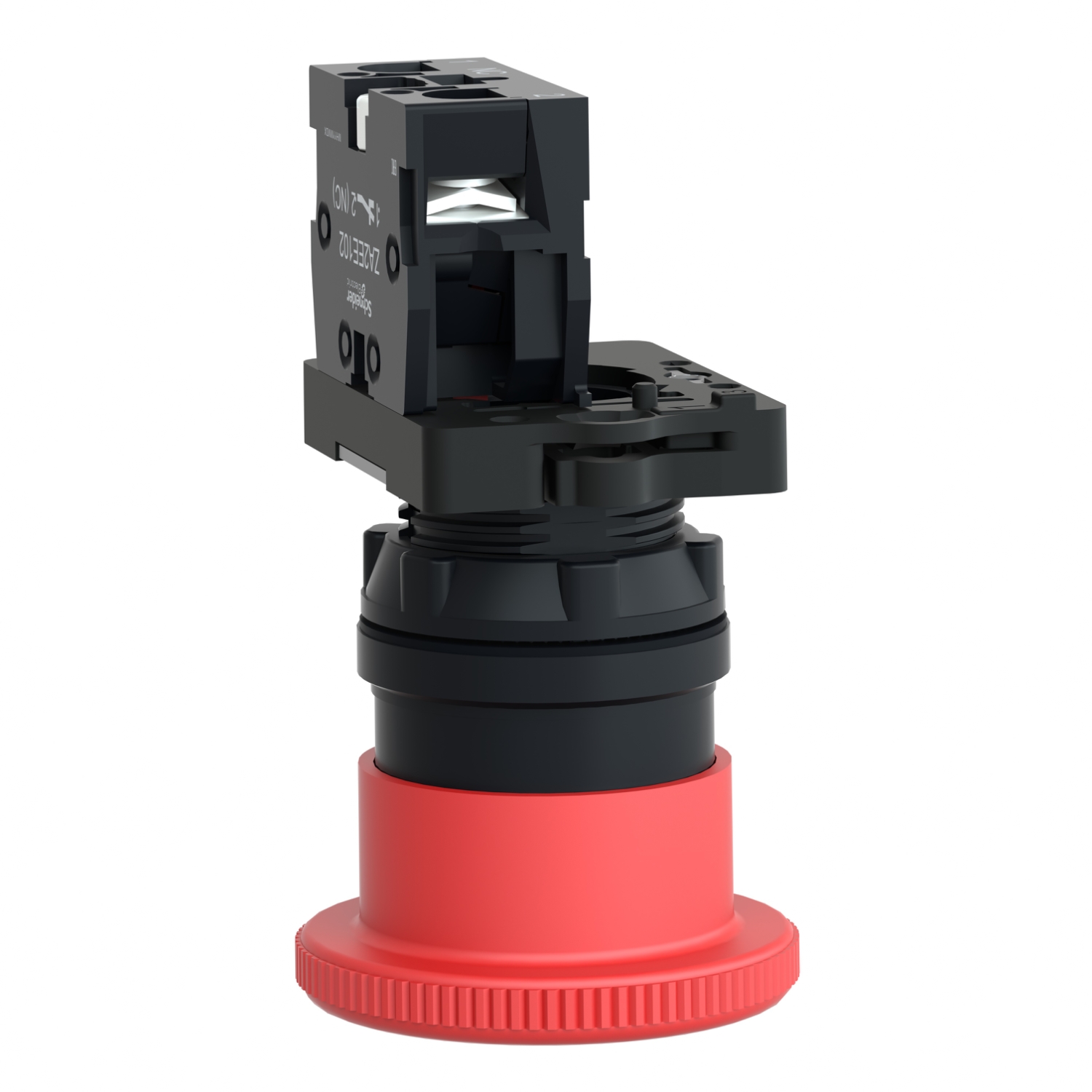

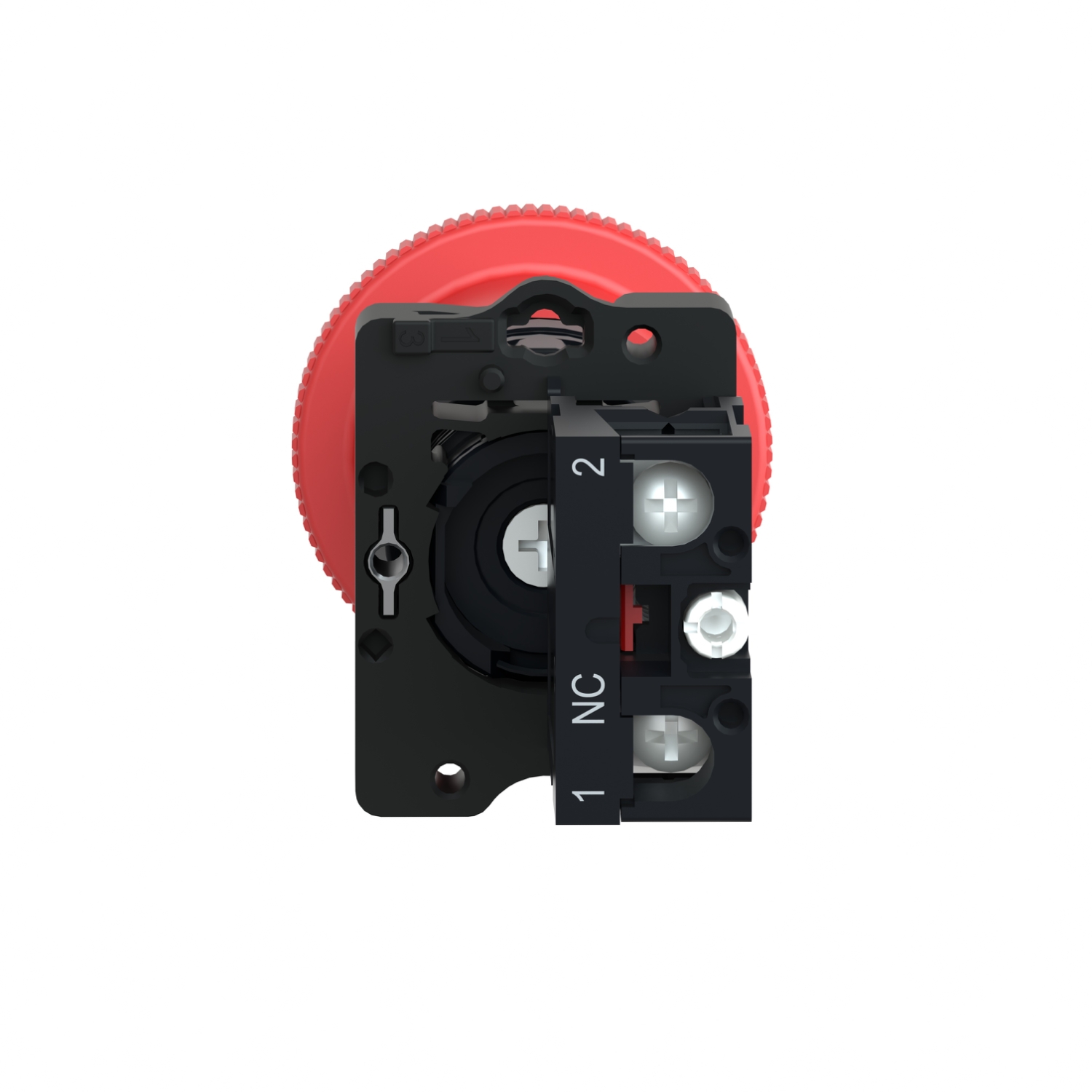

XA2ES542 | Red Ø40 Emergency swtiching off push-button Ø22 non trigger – turn release 1NC
Original price was: 254,33 EGP.147,51 EGPCurrent price is: 147,51 EGP.
XA2ES542 | Red Ø40 Emergency swtiching off push-button Ø22 non trigger – turn release 1NC
861 in stock
XA2ES542 | Red Ø40 Emergency swtiching off push-button Ø22 non trigger – turn release 1NC
| brands | Schneider Electric |
|---|---|
| Range of product | Easy Harmony XA2 |
| Product or component type | Complete emergency switching off push-button |
| Device short name | XA2 |
| bezel material | Plastic |
| Height | 30 mm |
| Width | 42 mm |
| Depth | 74.2 mm |
| Net weight | 0.058 kg |
| Positive opening | With NC contact |
| Mechanical durability | 100000 cycles |
| Tightening torque | 0.8 N.m |
| Short-circuit protection | 10 A gL fuse conforming to IEC 60269-1 |
| [Ui] rated insulation voltage | 600 V conforming to IEC 60947-1 |
| Shape of signaling unit head | Round |
| contact operation | Slow-break |
| Mounting diameter | 22.5 mm |
| Cap/operator or lens colour | Red |
| Type of operator | Mechanical latching |
| Device mounting | Fixing hole – diameter: 22 mm |
| Fixing center | >= 30 x 40 mm (panel) – thickness: 1…5 mm |
| Reset | Turn to release |
| Electrical reliability | Λ < 10exp(-8) at 24 V |
| Protective treatment | TC |
| Standards | IEC 60947-1 GB 14048.1 GB 14048.5 IEC 60947-5-1 IEC 60529 |
| Product certifications | CCC CE |
| Vibration resistance | 10 gn (f= 40…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 70 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| IP degree of protection | IP65 conforming to IEC 60068-2-27 |
| Operating position | Any position |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.000 cm |
| Package 1 Width | 5.000 cm |
| Package 1 Length | 7.000 cm |
| Package 1 Weight | 57.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 70 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 4.305 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 1120 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 60.000 cm |
| Package 3 Weight | 76.880 kg |
| Sustainable offer status | Green Premium product |
| REACh Regulation | REACh Declaration |
| REACh free of SVHC | Yes |
| EU RoHS Directive | Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration |
| Toxic heavy metal free | Yes |
| Mercury free | Yes |
| China RoHS Regulation | China RoHS declaration |
| RoHS exemption information | Yes |
| Environmental Disclosure | Product Environmental Profile |
| Circularity Profile | End of Life Information |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
