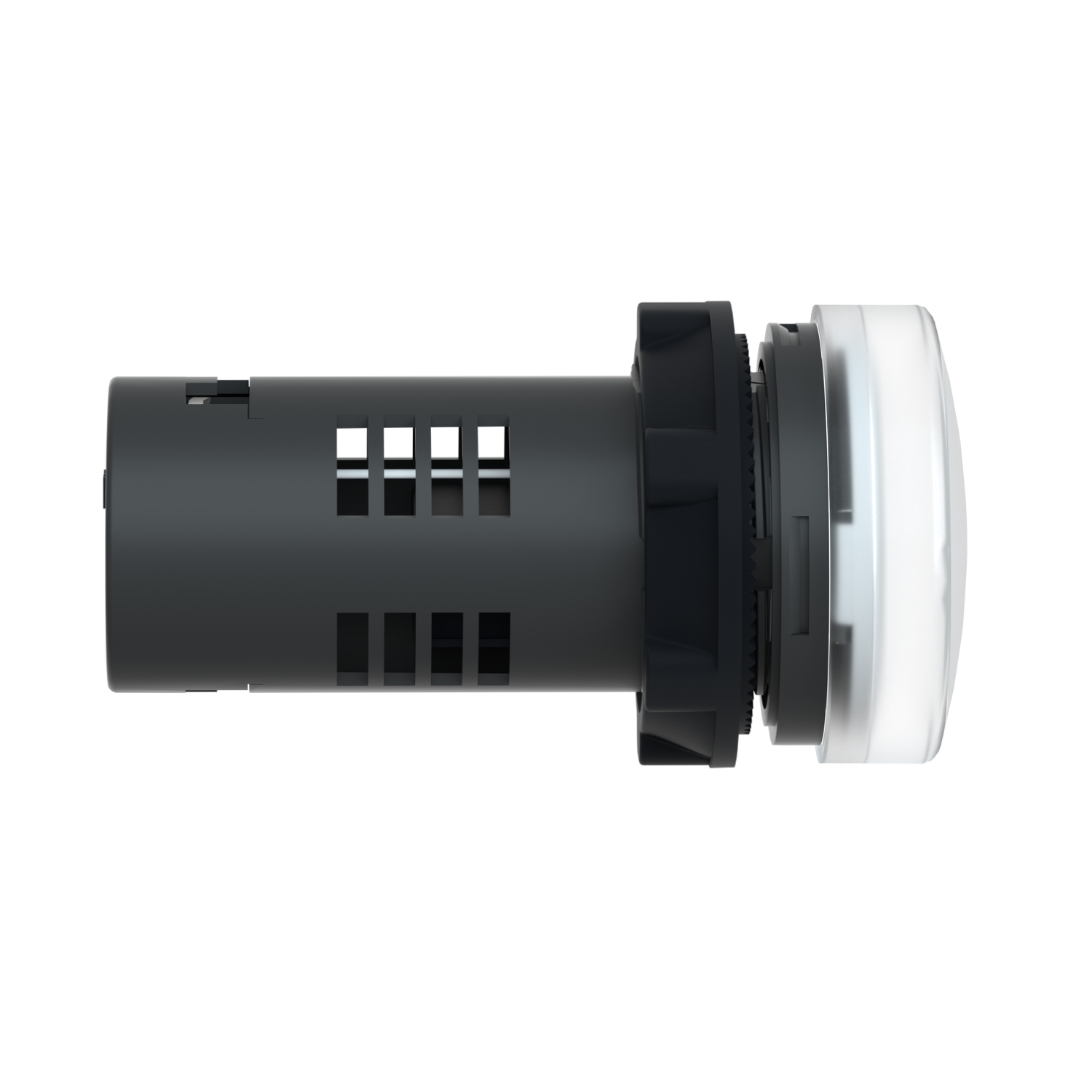

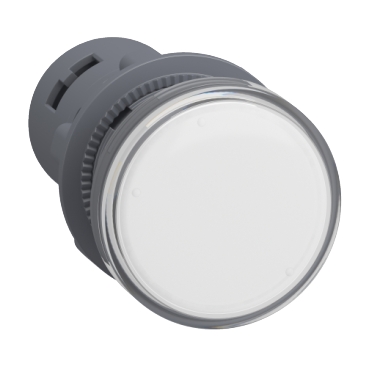

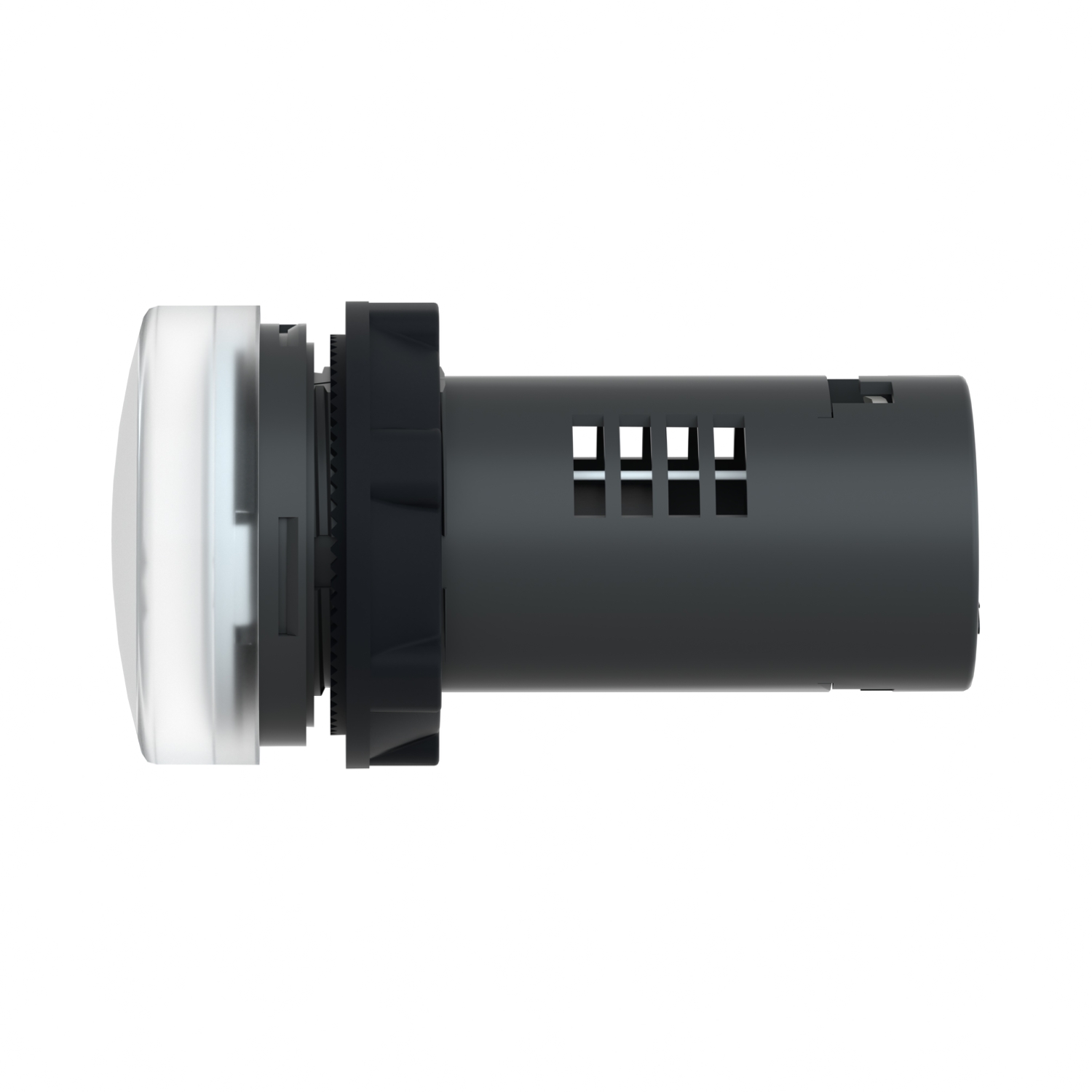

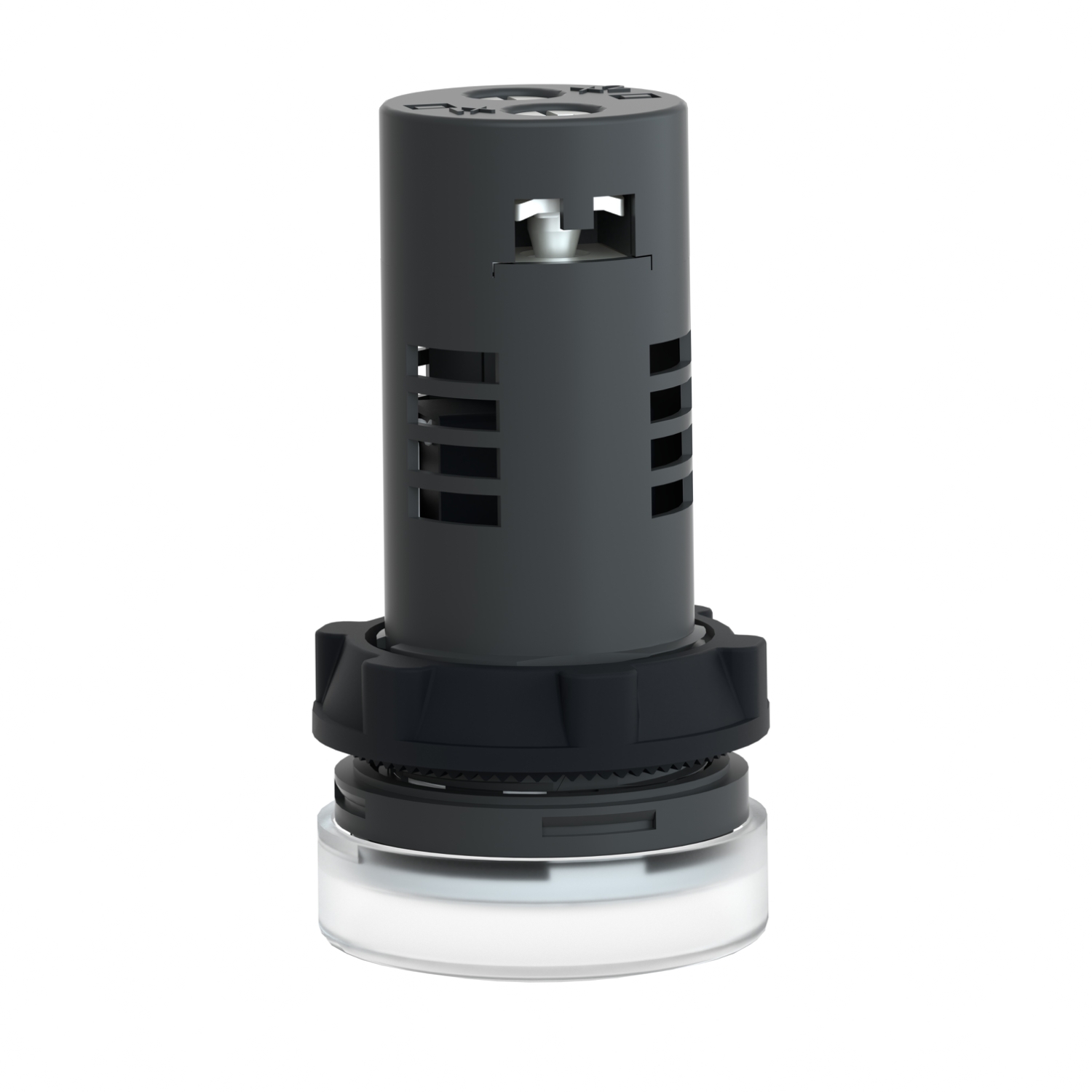

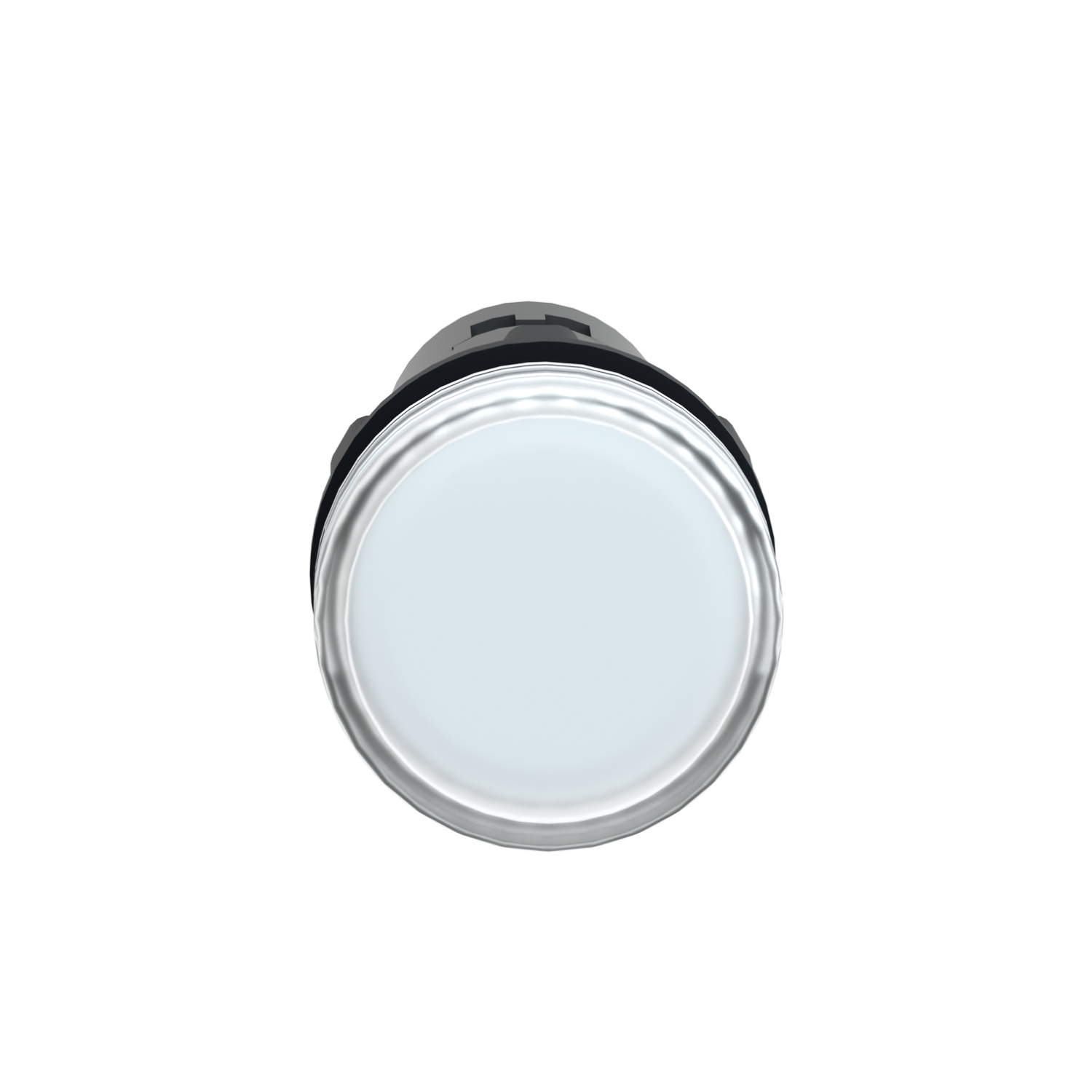

XA2EVM1LC | Easy Harmony XA2E, Monolithic pilot light, plastic, white, Ø22, integral LED, screw clamp terminals, 220…230 V AC, anti interference
XA2EVM1LC | Easy Harmony XA2E, Monolithic pilot light, plastic, white, Ø22, integral LED, screw clamp terminals, 220…230 V AC, anti interference
104,93 EGP
XA2EVM1LC | Easy Harmony XA2E, Monolithic pilot light, plastic, white, Ø22, integral LED, screw clamp terminals, 220…230 V AC, anti interference
Out of stock
| brands | Schneider Electric |
|---|---|
| Range of product | Easy Harmony XA2 |
| Product or component type | Monolithic pilot light |
| Device short name | XA2 |
| Height | 29 mm |
| Width | 29 mm |
| Depth | 53 mm |

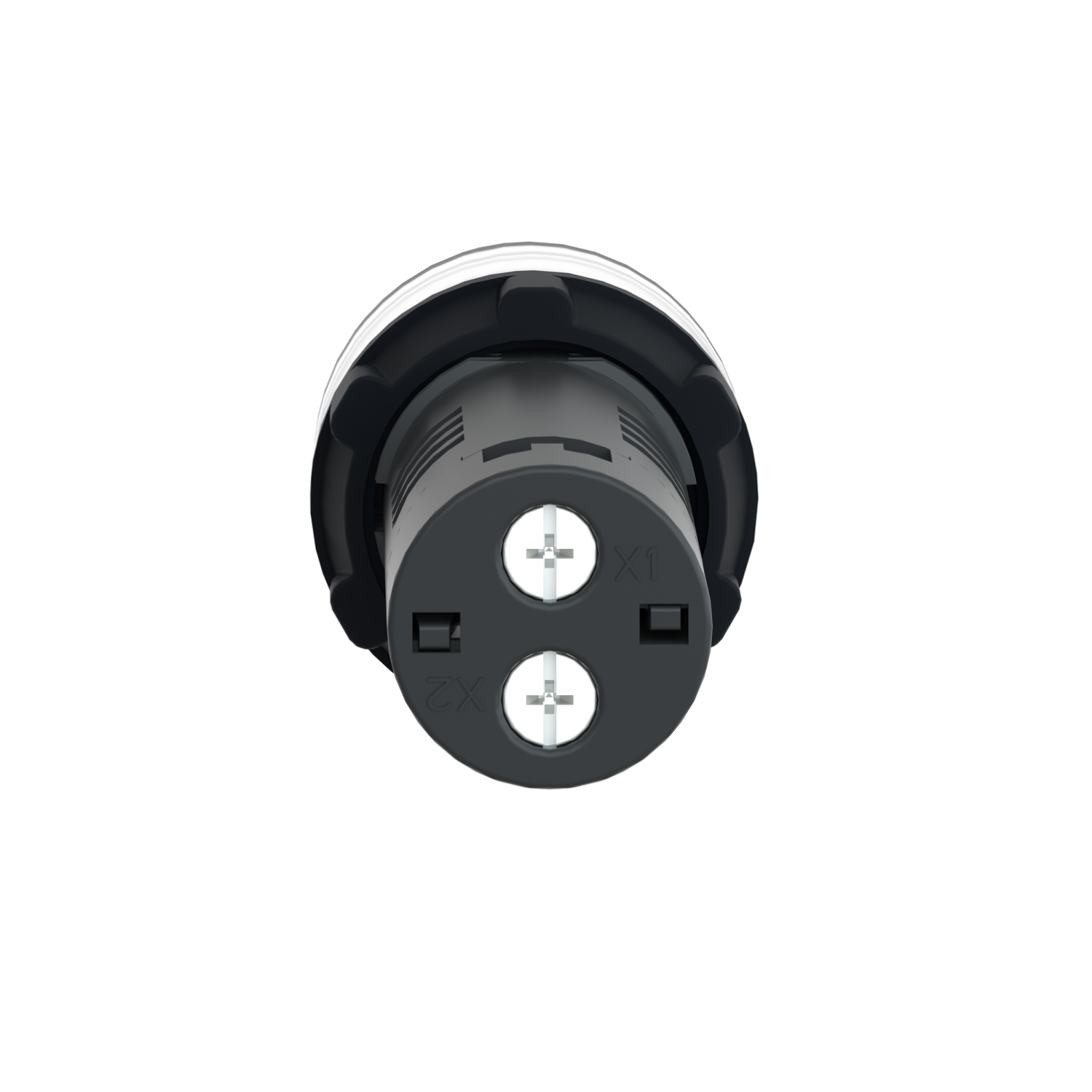

| Terminals description ISO n°1 | (X1-X2)PL |
| Net weight | 0.02 kg |
| Shape of screw head | Cross compatible with Philips No 2 screwdriver Slotted compatible with flat Ø 4 mm screwdriver Slotted compatible with flat Ø 5.5 mm screwdriver |
| [Ui] rated insulation voltage | 400 V (pollution degree 3) conforming to EN/IEC 60947-1 |
| Signalling type | Steady |
| Service life | 40000 h at rated voltage and 25 °C |
| Shape of signaling unit head | Round |
| Bulb base | Integral LED |
| Mounting diameter | 22.5 mm |
| Light source | LED |
| Cap/operator or lens colour | White |
| Device mounting | Fixing hole 22.3 +0.4/0 conforming to EN/IEC 60947-5-1 |
| Fixing center | >= 30 x 40 mm (support panel) metal – thickness: 1…6 mm >= 30 x 40 mm (support panel) plastic – thickness: 2…6 mm |
| [Us] rated supply voltage | 220…230 V AC 50/60 Hz |
| Standards | GB 14048.5 IEC 60947-5-1 IEC 60947-1 GB 14048.1 IEC 60529 IEC 50102 |
| Product certifications | CE CCC |
| Vibration resistance | 5 gn (f= 12…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| IP degree of protection | IP65 conforming to IEC 60529 |
| Marking | CCC CE |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.300 cm |
| Package 1 Width | 2.900 cm |
| Package 1 Length | 2.900 cm |
| Package 1 Weight | 21.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 8.000 cm |
| Package 2 Width | 22.000 cm |
| Package 2 Length | 29.500 cm |
| Package 2 Weight | 216.000 kg |
| Unit Type of Package 3 | S02 |
| Number of Units in Package 3 | 160 |
| Package 3 Height | 15.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 5.800 kg |
| Sustainable offer status | Green Premium product |
| REACh Regulation | REACh Declaration |
| REACh free of SVHC | Yes |
| EU RoHS Directive | Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration |
| Toxic heavy metal free | Yes |
| Mercury free | Yes |
| China RoHS Regulation | China RoHS declaration |
| RoHS exemption information | Yes |
| Environmental Disclosure | Product Environmental Profile |
| Circularity Profile | End of Life Information |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
