Description

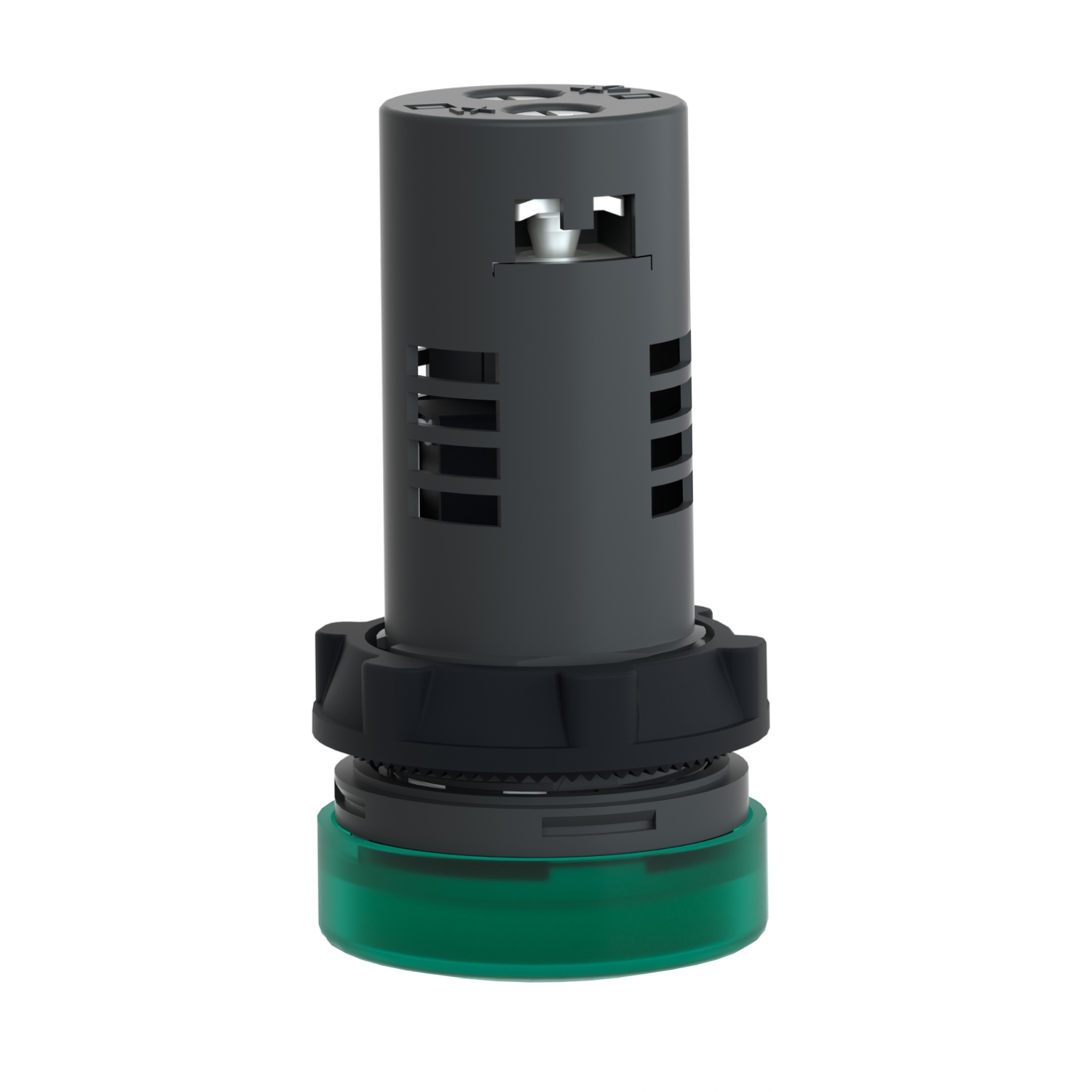

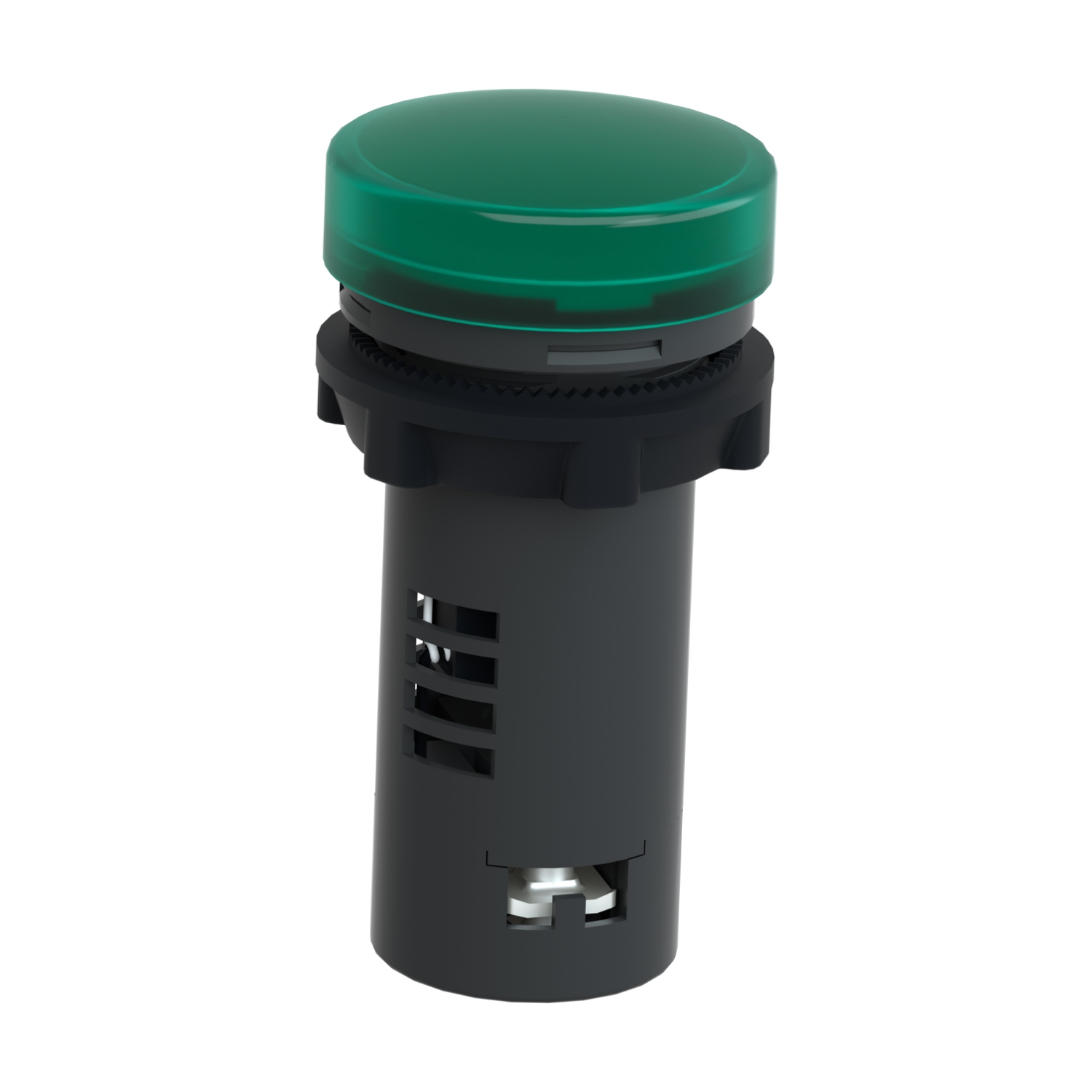

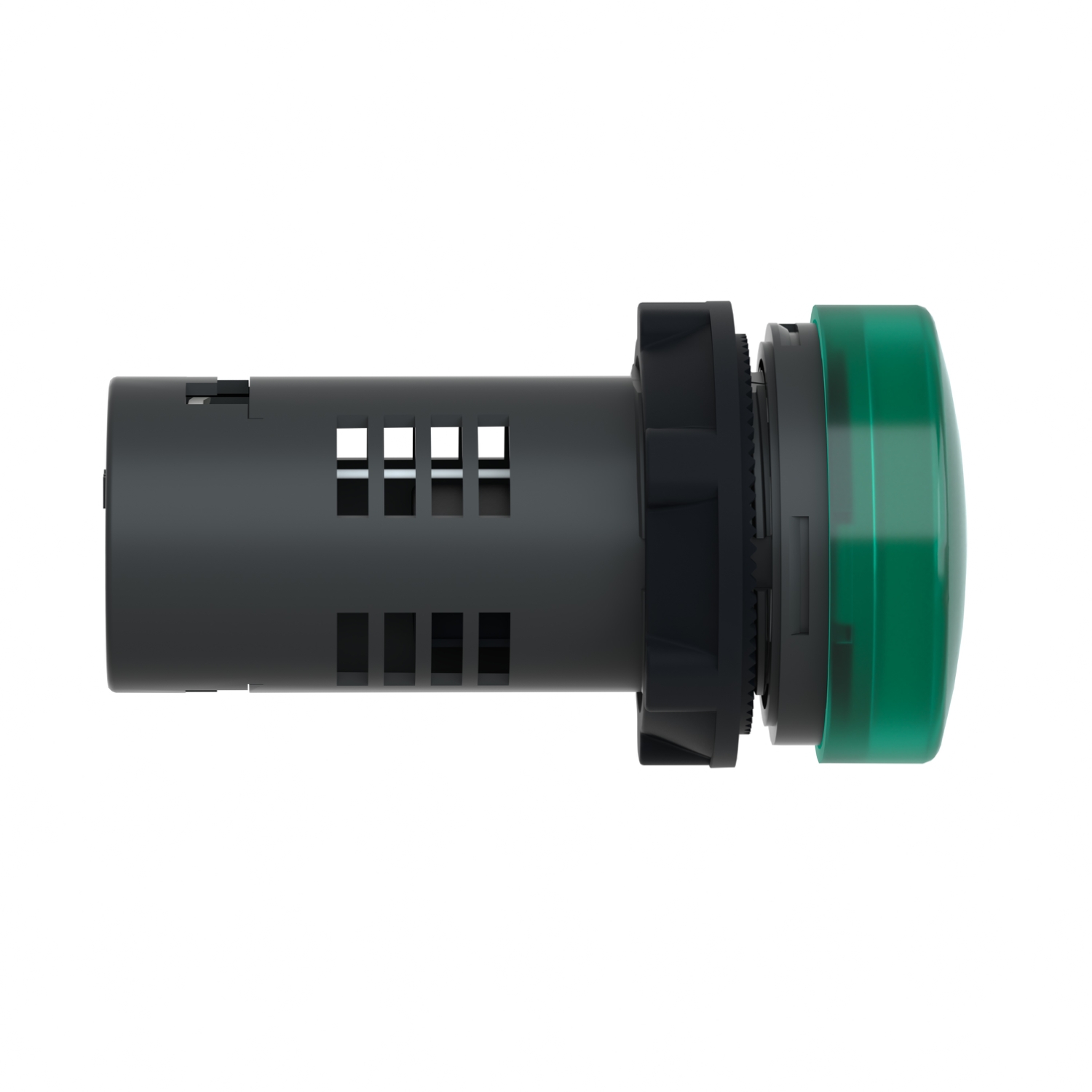

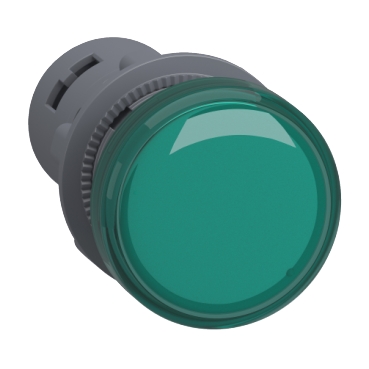

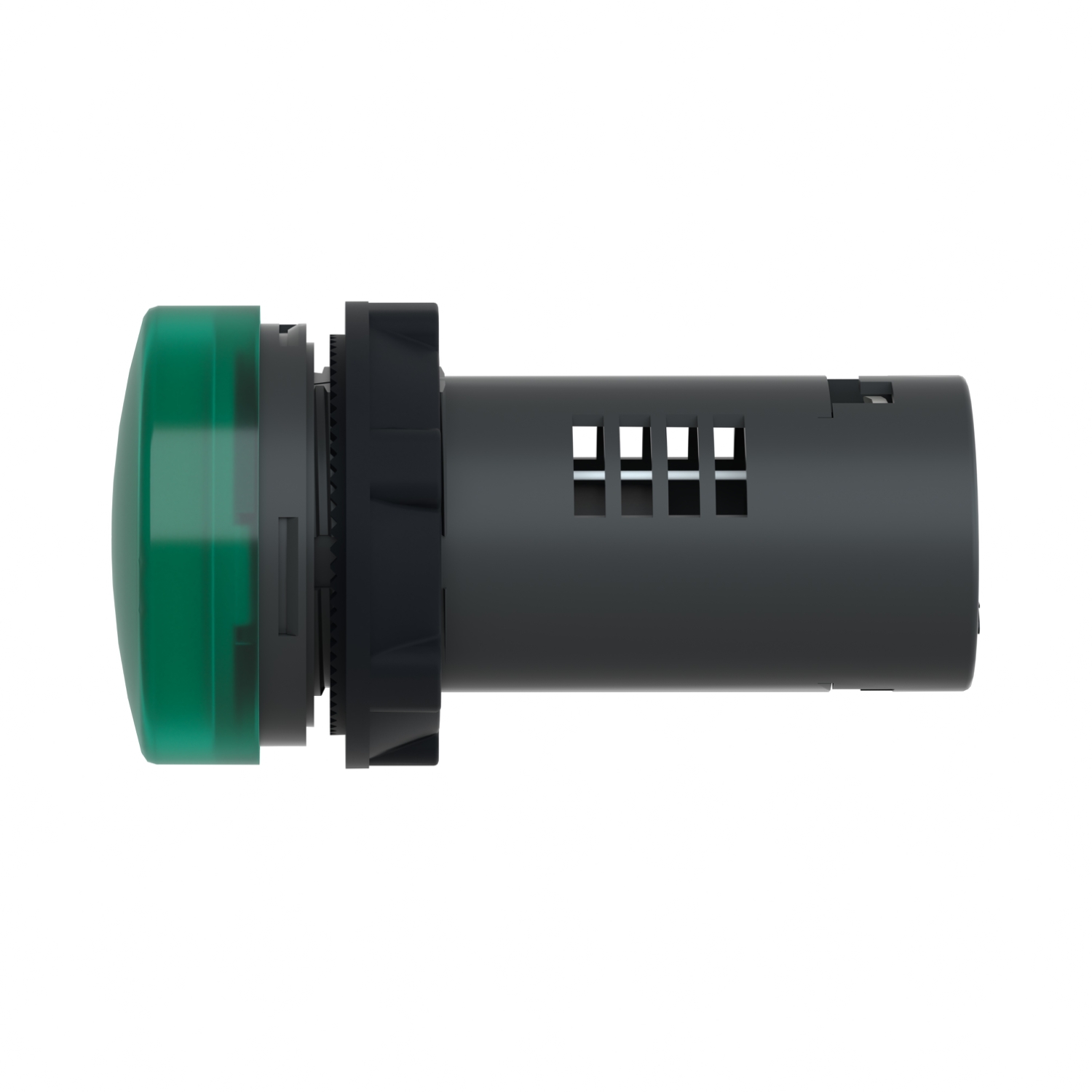

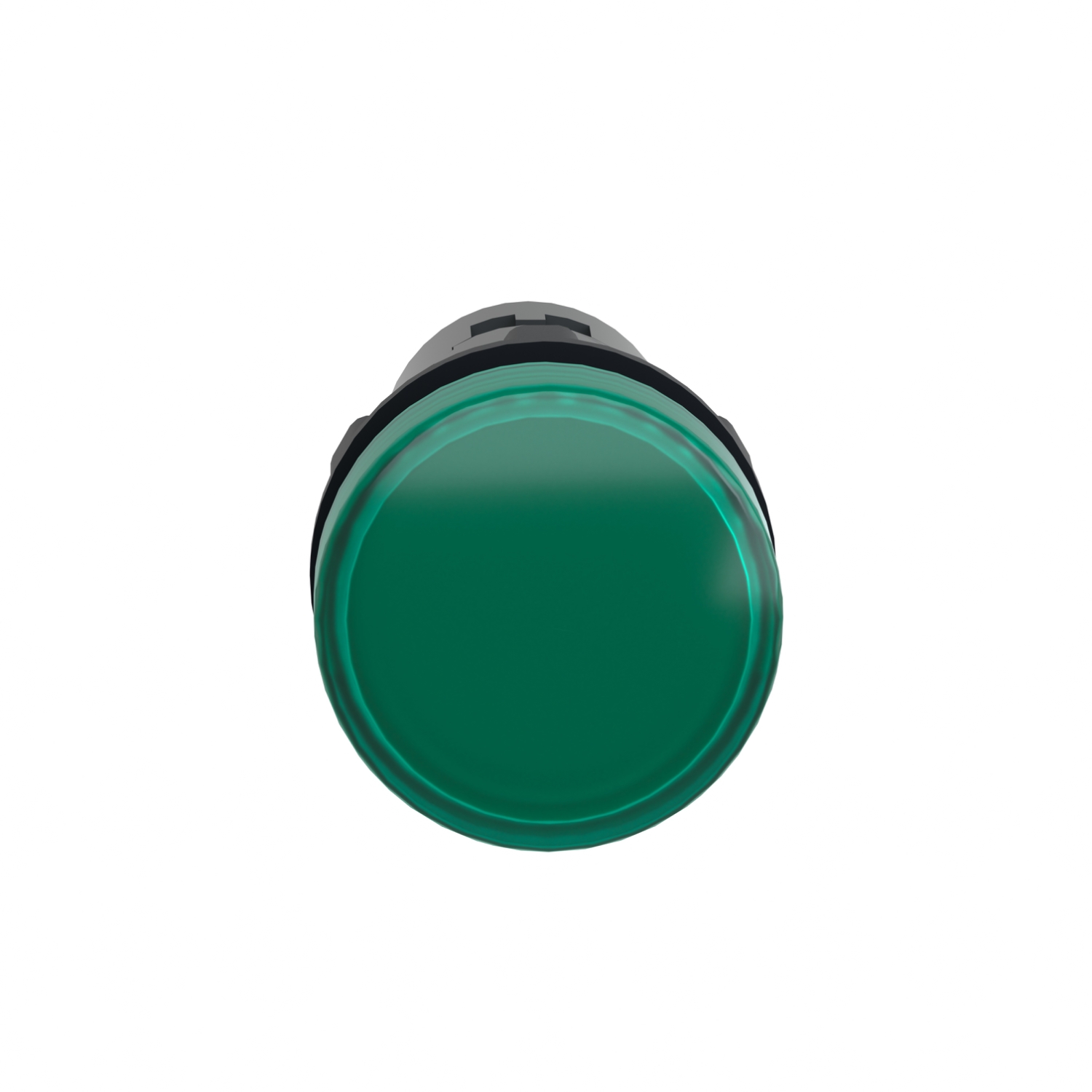

XA2EVMD3LC | Pilot light, plastic, green, Ø 22 mm, with integral LED, 220 V DC, Anti-interference
Original price was: 180,92 EGP.104,93 EGPCurrent price is: 104,93 EGP.
XA2EVMD3LC | Pilot light, plastic, green, Ø 22 mm, with integral LED, 220 V DC, Anti-interference
89 in stock
XA2EVMD3LC | Pilot light, plastic, green, Ø 22 mm, with integral LED, 220 V DC, Anti-interference
| brands | Schneider Electric |
|---|---|
| Range of product | Easy Harmony XA2 |
| Product or component type | Monolithic pilot light |
| Device short name | XA2 |
| Height | 29 mm |
| Width | 29 mm |
| Depth | 53 mm |
| Terminals description ISO n°1 | (X1-X2)PL |
| Net weight | 0.02 kg |
| Shape of screw head | Cross compatible with Philips No 2 screwdriver Slotted compatible with flat Ø 4 mm screwdriver Slotted compatible with flat Ø 5.5 mm screwdriver |
| [Ui] rated insulation voltage | 400 V (pollution degree 3) conforming to EN/IEC 60947-1 |
| Signalling type | Steady |
| Service life | 40000 h at rated voltage and 25 °C |
| Shape of signaling unit head | Round |
| Bulb base | Integral LED |
| Mounting diameter | 22.5 mm |
| Light source | LED |
| Cap/operator or lens colour | Green |
| Device mounting | Fixing hole 22.3 +0.4/0 conforming to EN/IEC 60947-5-1 |
| Fixing center | >= 30 x 40 mm (support panel) metal – thickness: 1…6 mm >= 30 x 40 mm (support panel) plastic – thickness: 2…6 mm |
| [Us] rated supply voltage | 220 V DC |
| Standards | IEC 60947-1 GB 14048.1 GB 14048.5 IEC 60947-5-1 IEC 60529 IEC 50102 |
| Product certifications | CE CCC |
| Vibration resistance | 5 gn (f= 12…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| IP degree of protection | IP65 conforming to IEC 60529 |
| Marking | CCC CE |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.0 cm |
| Package 1 Width | 3.0 cm |
| Package 1 Length | 5.5 cm |
| Package 1 Weight | 20.0 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 160 |
| Package 2 Height | 15 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 3.556 kg |
| Sustainable offer status | Green Premium product |
| REACh Regulation | REACh Declaration |
| REACh free of SVHC | Yes |
| EU RoHS Directive | Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration |
| Toxic heavy metal free | Yes |
| Mercury free | Yes |
| China RoHS Regulation | China RoHS declaration |
| RoHS exemption information | Yes |
| Environmental Disclosure | Product Environmental Profile |
| Circularity Profile | End of Life Information |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
