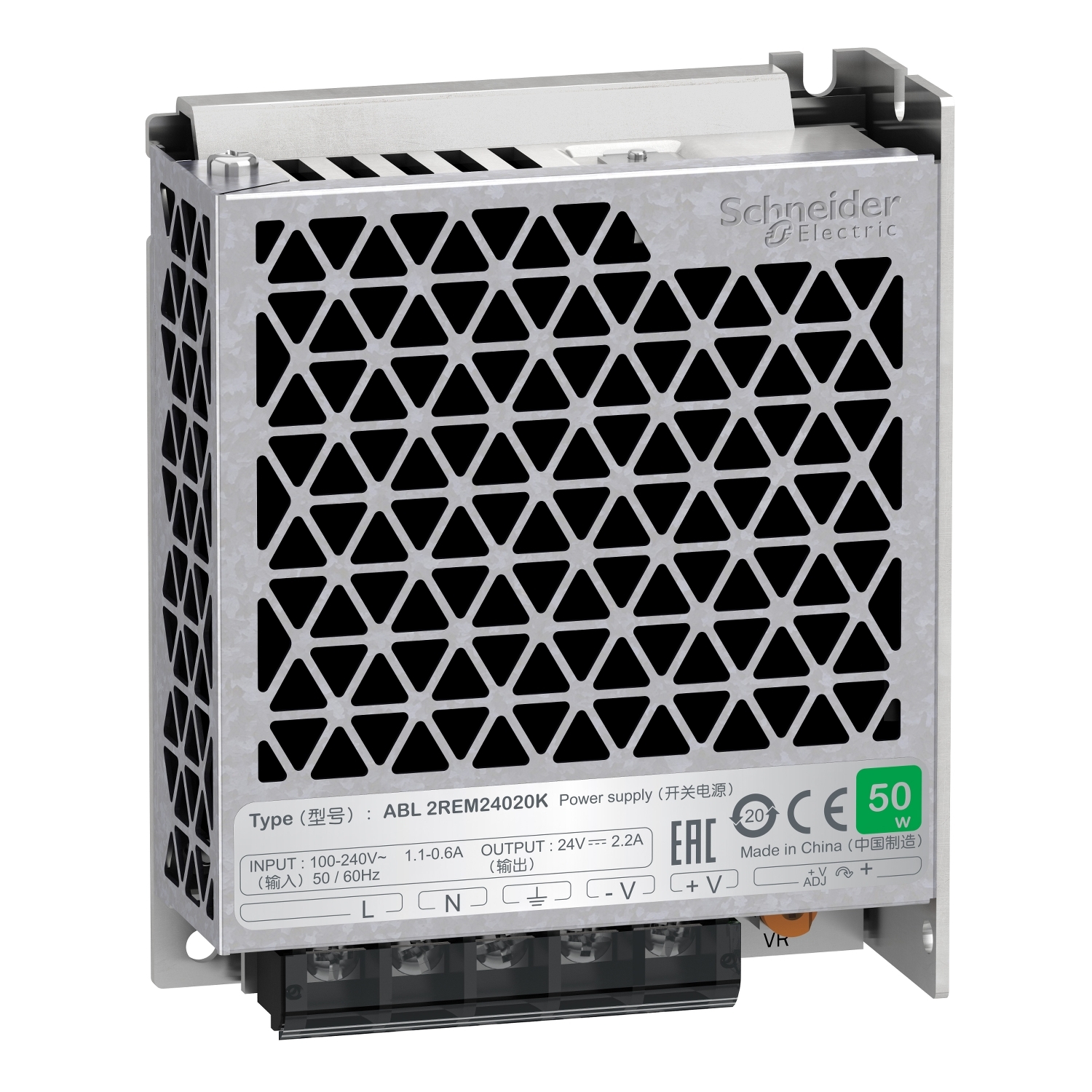

ABL2REM24020K | Single phase power supply, 100…240V input, 24V DC output, 53W, 2,2A

Description

brands	Schneider Electric
Range of product	Easy Modicon ABL2
Product or component type	Power supply
Power supply type	Regulated switch mode
Rated power in W	53 W
Main Input Voltage	100…240 V AC single phase
Power supply output current	2.2 A
Name of test	Electromagnetic hypersensitivity (EHS) conforming to EN 61000-6-2 level A
Mounting support	DIN rail with accessory Panel mounting with accessory
Net weight	0.25 kg
Height	82 mm
Width	99 mm
Depth	30 mm
Network frequency	47…63 Hz
Input voltage limits	85…264 V
Inrush current	45 A at 100…240 V AC
Cos phi	0.45
Efficiency	87%
Current consumption	0.6 A at 240 V
Input protection type	Integrated fuse (not interchangeable)
Output voltage limits	20.4…27.6 V
Line and load regulation	+/- 1 %
