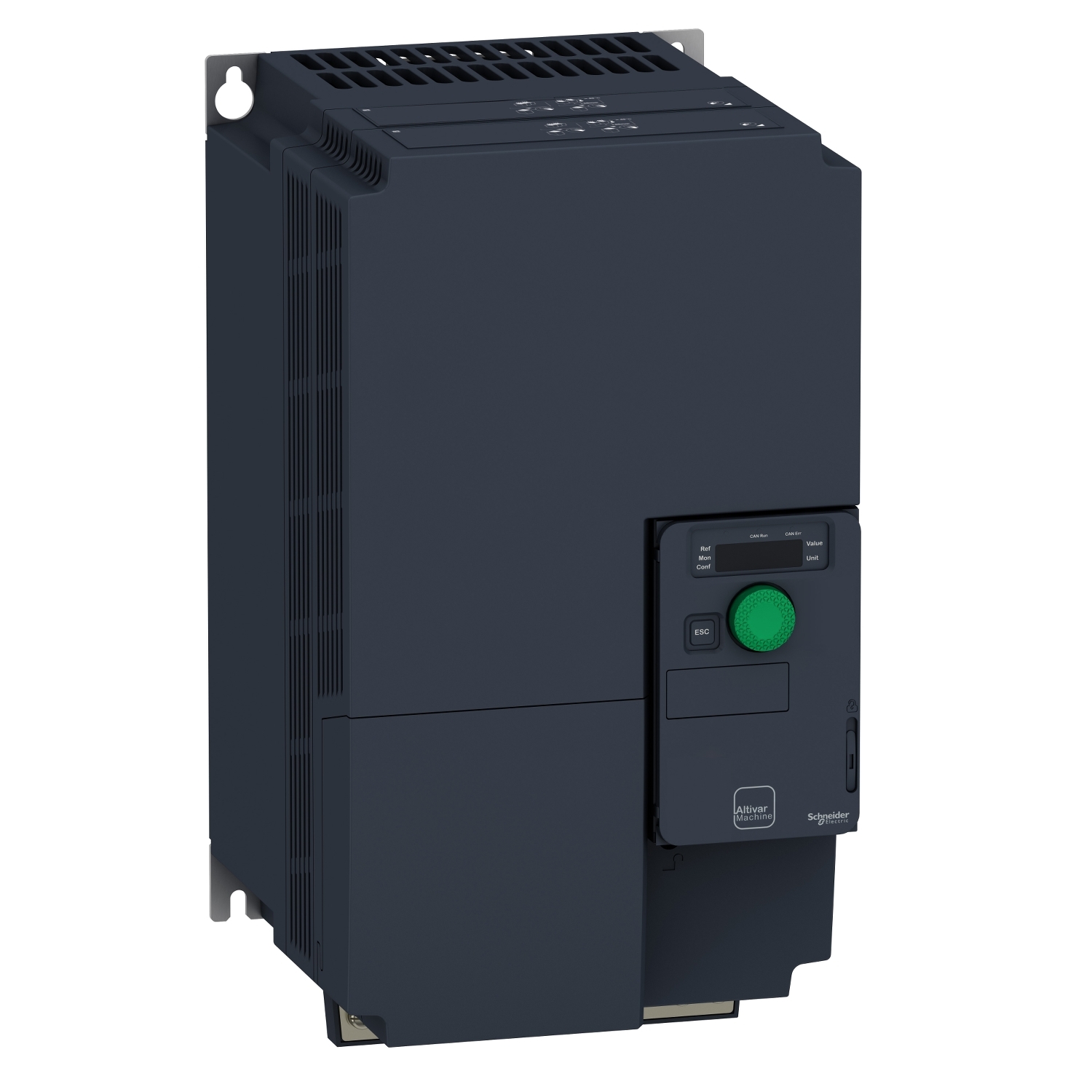

ATV320D15N4C | Variable speed drive, ATV320, 15 kW, 380…500 V, 3 phases, compact
| brands | Schneider Electric |
|---|---|
| Range of product | Altivar Machine ATV320 |
| Product or component type | Variable speed drive |
| Product specific application | Complex machines |
| Variant | Standard version |
| EMC filter | Integrated |
| Format of the drive | Compact |
| Mounting mode | Wall mount |
| Option card | Communication module, CANopen Communication module, EtherCAT Communication module, Profibus DP V1 Communication module, PROFINET Communication module, Ethernet Powerlink Communication module, EtherNe |
| Motor power kW | 15.0 kW for heavy duty |
| Net weight | 6.9 kg |
| Height | 330 mm |
| Width | 180 mm |
| Depth | 198.0 mm |
| Protection type | Input phase breaks: drive Overcurrent between output phases and earth: drive Overheating protection: drive Short-circuit between motor phases: drive Thermal protection: drive |
| Discrete input number | 7 |
| Discrete output number | 3 |
| Communication port protocol | Modbus serial CANopen |
| Analogue input number | 3 |
| Analogue input type | AI1 voltage: 0…10 V DC, impedance: 30 kOhm, resolution 10 bits AI2 bipolar differential voltage: +/- 10 V DC, impedance: 30 kOhm, resolution 10 bits AI3 current: 0…20 mA (or 4-20 mA, x-20 mA, 20- |
| Analogue output number | 1 |
| Method of access | Slave CANopen |
