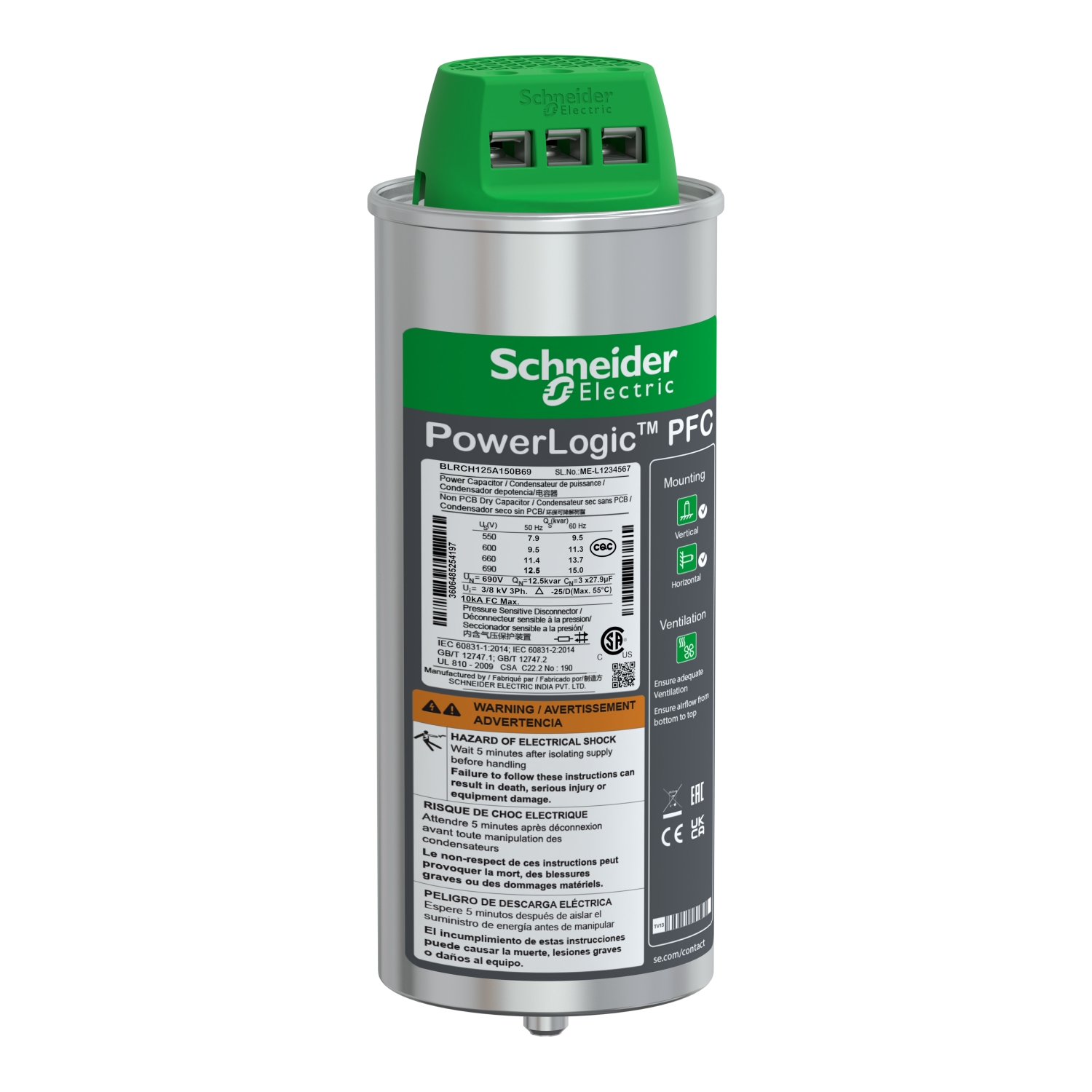

BLRCH100A120B44 | Heavy duty PowerLogic PFC Capacitor, 10/12 kvar – 440 V – 50/60Hz
| brands | Schneider Electric |
|---|---|
| Product or component type | Heavy duty capacitor |
| Series name | HDuty |
| Network harmonic content | <= 20 % |
| Electrical parameters | 10 kvar 440 V 50 Hz 12 kvar 440 V 60 Hz |
| Maximum permissible voltage | 1.1 x Un (8 hours over 24 hours) |
| Rated voltage | 440 V AC 50/60 Hz |
| Range of product | PowerLogic |
| Network frequency | 50/60 Hz |
| Type of installation | Indoor installation |
| dielectric losses | < 0.2 W/kvar |
| Power losses | < 0.5 W/kVAr |
| capacitance tolerance | – 5 % to 10 % |
| Voltage test | 2.15 x Un AC between terminals for 10 s = 660 V – 6 kV AC between terminal and container for 10 s |
| Inrush current | 250 x In |
| Service life in hours | 130000 h |
| Dielectric material | Metallized polypropylene film with Zn/Al alloy, special resistivity & profile, special edge (wave cut) |
| Impregnation material | Non-PCB dry PUR resin Biodegradable |
| Connections - terminals | ClampTite terminal |
| Diameter | 75 mm |
| Operating altitude | 2000 m |
| Height | 233 mm |
| Net weight | 1.2 kg |
| Standards | IEC 60831-2 IEC 60831-1 |
| IP degree of protection | IP20 |
| Temperature class | D |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 28.5 cm |
| Package 1 Width | 11 cm |
| Package 1 Length | 11.8 cm |
| Package 1 Weight | 1.3 kg |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 2 |
| Package 2 Height | 29 cm |
| Package 2 Width | 29 cm |
| Package 2 Length | 39 cm |
| Package 2 Weight | 7.5 kg |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 6 |
| Package 3 Height | 30 cm |
| Package 3 Width | 30 cm |
| Package 3 Length | 40 cm |
| Package 3 Weight | 9.5 kg |
| Sustainable offer status | Green Premium product |
| REACh Regulation | REACh Declaration |
| EU RoHS Directive | Compliant EU RoHS Declaration |
| Mercury free | Yes |
| China RoHS Regulation | China RoHS declaration Product out of China RoHS scope. Substance declaration for your information |
| RoHS exemption information | Yes |
| REACh free of SVHC | Yes |
| Toxic heavy metal free | Yes |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
| Warranty | 18 months |
