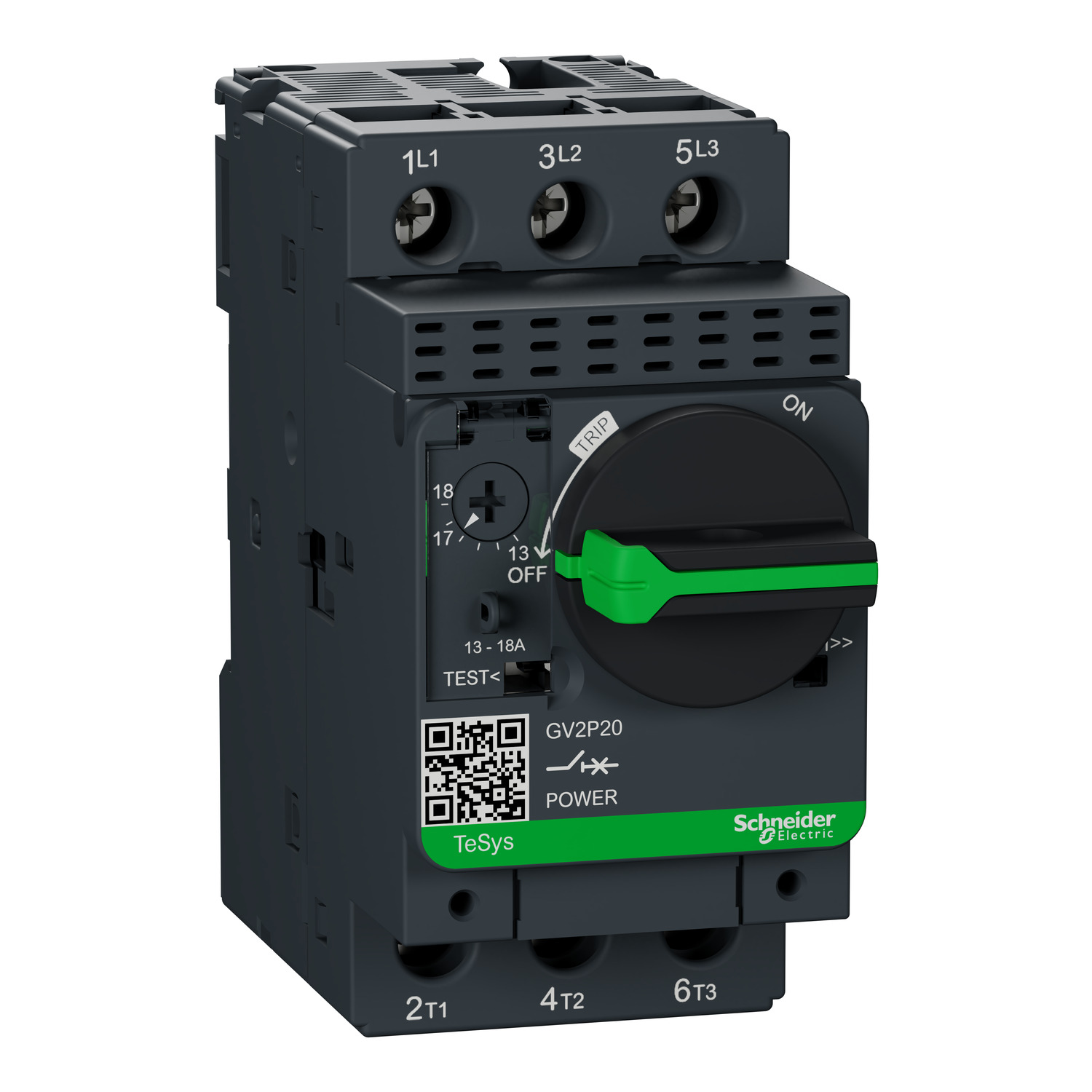

Schneider GV2P20 | Motor circuit breaker, TeSys GV2, 3P, 13-18 A, thermal magnetic, screw clamp terminals

Schneider GV2P20 | Motor circuit breaker, TeSys GV2, 3P, 13-18 A, thermal magnetic, screw clamp terminals



Technical Specifications

• Model: Schneider GV2P20

• Product Series: TeSys GV2

• Number of Poles: 3P (Three-Pole)

• Current Rating: Adjustable 13-18 A

• Protection Type: Thermal-magnetic for overload and short-circuit protection

• Trip Mechanism: Manual reset with push-button operation

• Terminals: Screw clamp terminals for secure wiring connections

• Mounting: DIN rail or panel mounting

• Conformity: Complies with IEC 60947-2 & IEC 60947-4-1 standards

Key Features

1. Dual Protection Mechanism

The GV2P20 features a thermal-magnetic trip unit, offering:

• Thermal protection for overloads, preventing motor overheating.

• Magnetic protection for short circuits, ensuring fast disconnection in case of faults.

2. Wide Current Adjustment Range

With an adjustable setting of 13-18 A, it provides flexibility to protect motors with varying current requirements.

3. Robust and Compact Design

• Designed for space-saving installations in electrical panels.

• Built for harsh industrial environments with high mechanical endurance.

4. Secure and Reliable Connections

Equipped with screw clamp terminals, ensuring firm and vibration-resistant wiring connections for long-term stability.

5. Easy Installation and Operation

• DIN rail or panel mounting for flexible installation.

• Simple manual reset for quick operation and maintenance.

Applications

• Industrial Automation: Protects motors in conveyors, pumps, compressors, and machine tools.

• Manufacturing Plants: Ensures safe operation of production line machinery.

• HVAC Systems: Used in large fans, compressors, and air handling units.

• Water Treatment Plants: Protects motors in pumps, filtration, and wastewater systems.

• Agricultural Equipment: Provides motor protection in irrigation systems and automated feeding systems.

• Commercial Buildings: Ensures reliable operation of elevators, escalators, and ventilation systems
