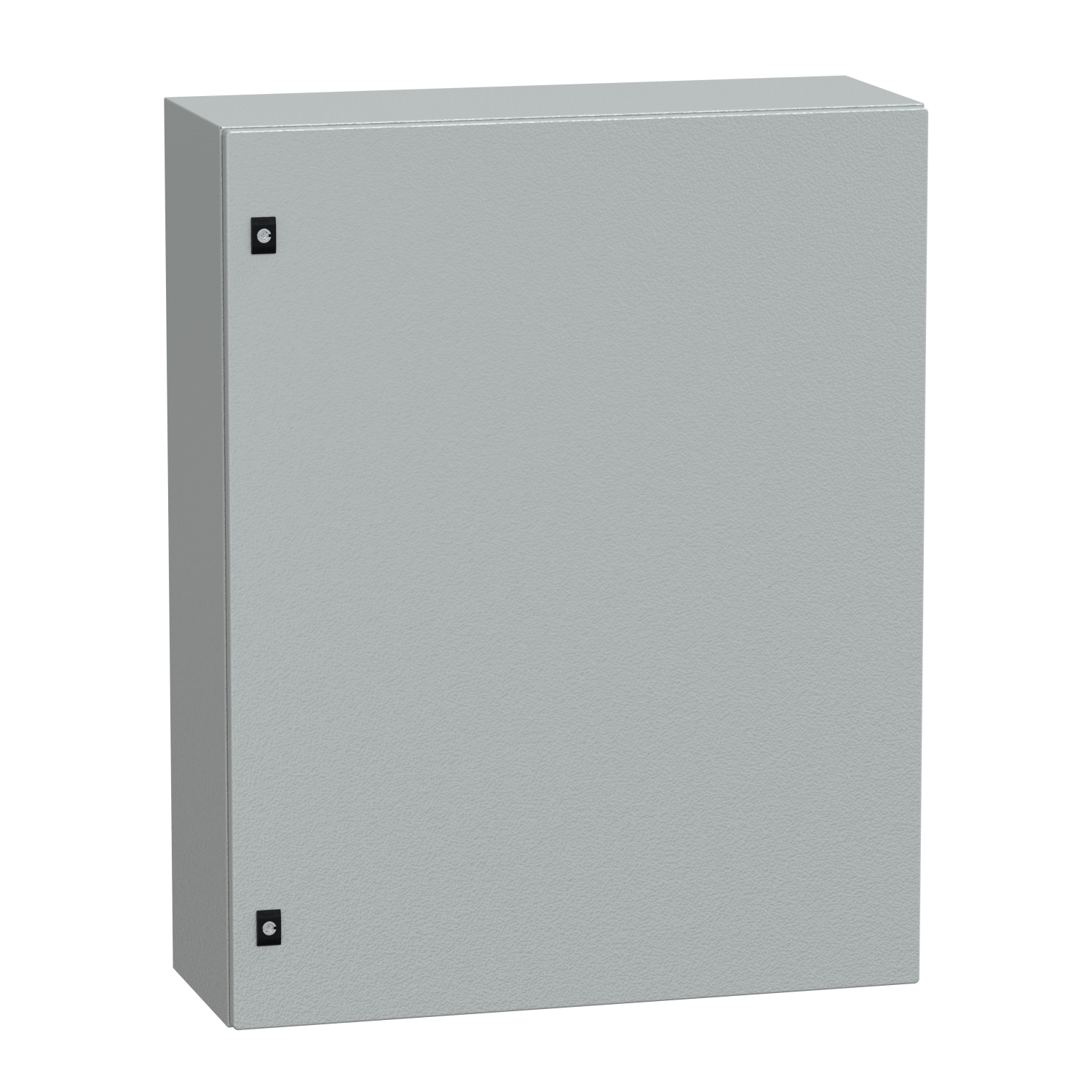

Schneider NSYCRN108300 | Spacial CRN plain door w/o mount.plate. H1000xW800xD300 IP66 IK10 RAL7035..

Schneider NSYCRN108300 | Spacial CRN plain door w/o mount.plate. H1000xW800xD300 IP66 IK10 RAL7035..

Technical Specifications NSYCRN108300

• Model: NSYCRN108300

• Series: Spacial CRN

• Enclosure Type: Wall-mounted enclosure with plain door

• Mounting Plate: Not included (must be ordered separately if needed)

• External Dimensions:

  • Height: 1000 mm

  • Width: 800 mm

  • Depth: 300 mm

• Material: Sheet steel

• Surface Finish: Epoxy-polyester powder-coated

• Color: Light grey, RAL 7035

• Ingress Protection Rating: IP66 (totally protected against dust and powerful water jets)

• Impact Resistance Rating: IK10 (resistant to strong mechanical impact)

• Door Type: Plain (no window), reversible opening, equipped with concealed hinges

• Locking System: 3-point lock with handle, ready for optional padlock

• Standards Compliance: IEC 62208, IEC 60529, IEC 62262, RoHS, REACH

• Internal Equipment Mounting: Compatible with Spacial CRN range accessories

• Weight: Approx. 45–55 kg (may vary depending on configuration)

Key Features:

• High Protection (IP66): Provides excellent protection from dust, water jets, and environmental elements

• Strong Impact Resistance (IK10): Ensures durability in industrial and public environments

• Flexible Interior Layout: Customizable with mounting accessories such as DIN rails, plates, and cable management

• No Mounting Plate: Ideal for applications requiring specific or custom internal setups

• Reversible Door: Allows door opening direction to be changed for flexibility during installation

• Secure Access: Equipped with a three-point locking system to protect internal components

• Corrosion-Resistant Coating: Powder-coated surface for high resistance in indoor and semi-outdoor locations

• Modular Design: Can be easily integrated into larger systems or networked enclosures

Typical Applications:

• Electrical Distribution Panels: Protecting low-voltage switchgear and distribution equipment

• Automation Control Systems: Housing for PLCs, controllers, and I/O devices in manufacturing

• Industrial Equipment Protection: Safeguards sensitive electronics in harsh environments

• Process Control Panels: Common in oil & gas, water treatment, and food processing facilities

• Building Management Systems: Used for HVAC, lighting, and access control infrastructure

• Renewable Energy: Suitable for inverter, battery, or control enclosures in solar/wind installations

• Telecommunication Infrastructure: Offers protection for equipment in remote or semi-outdoor locations
