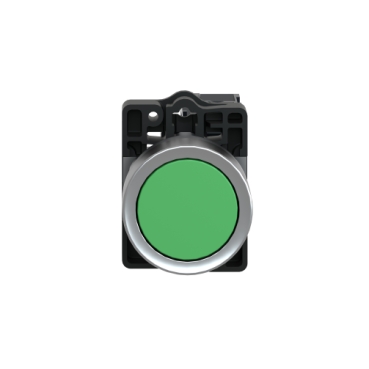

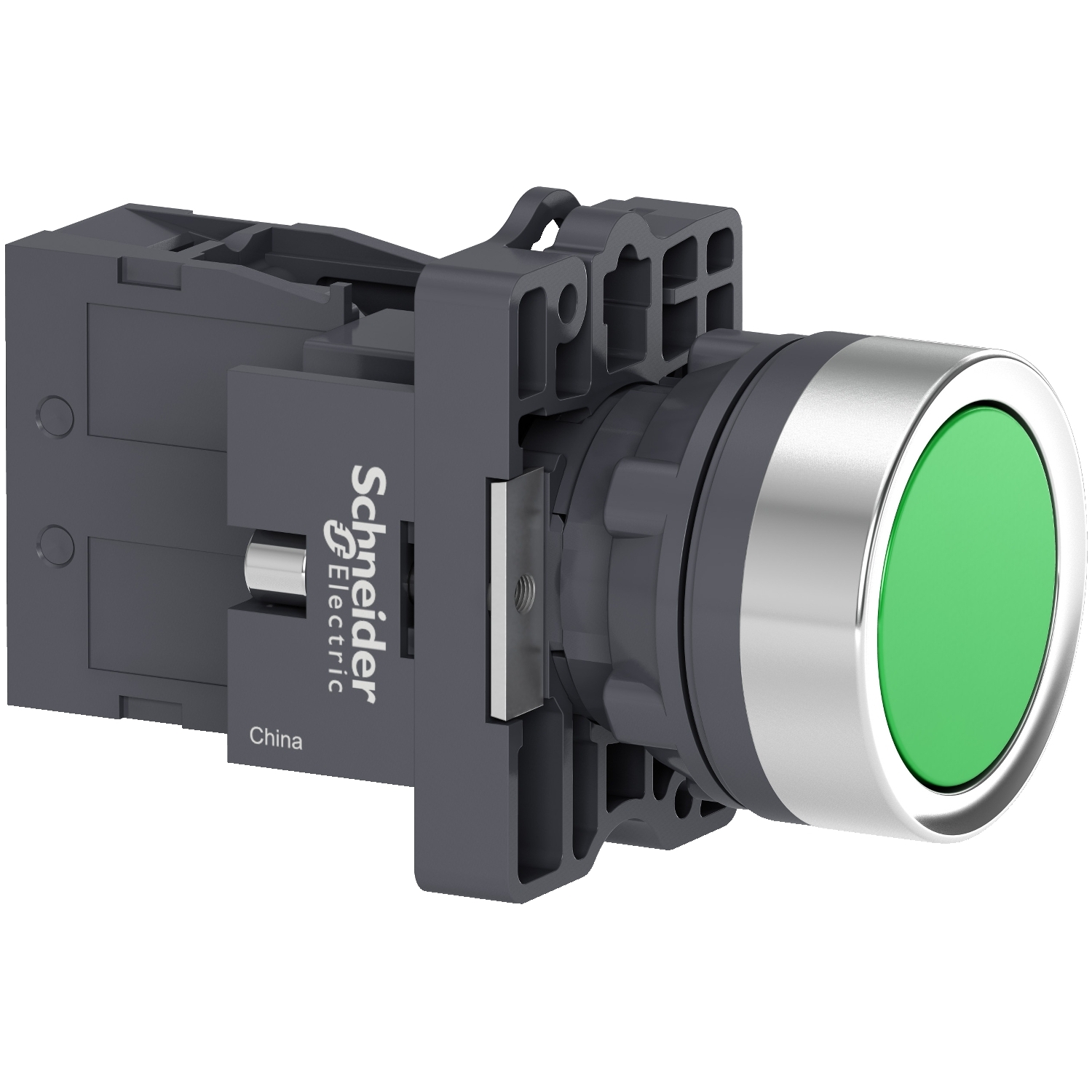

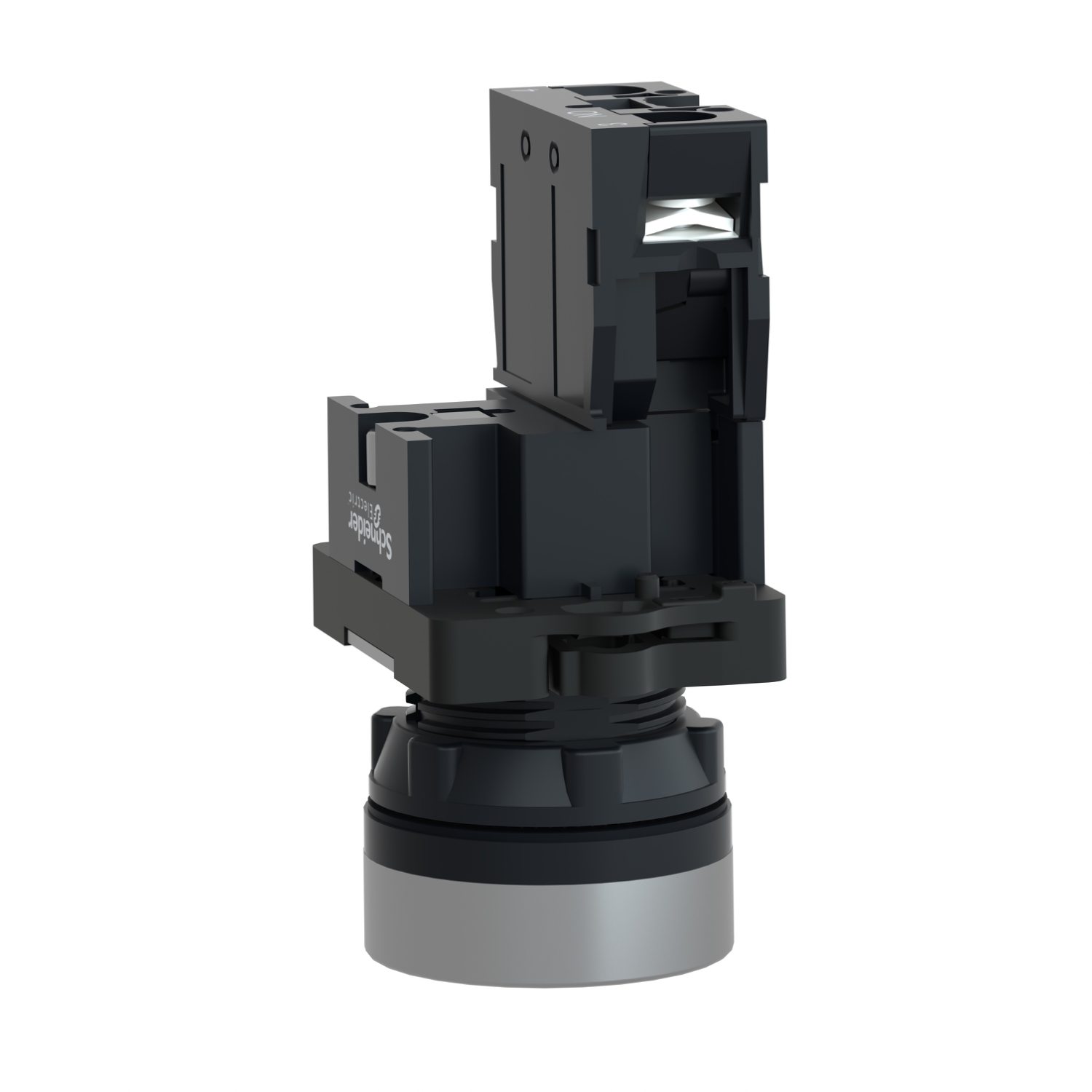

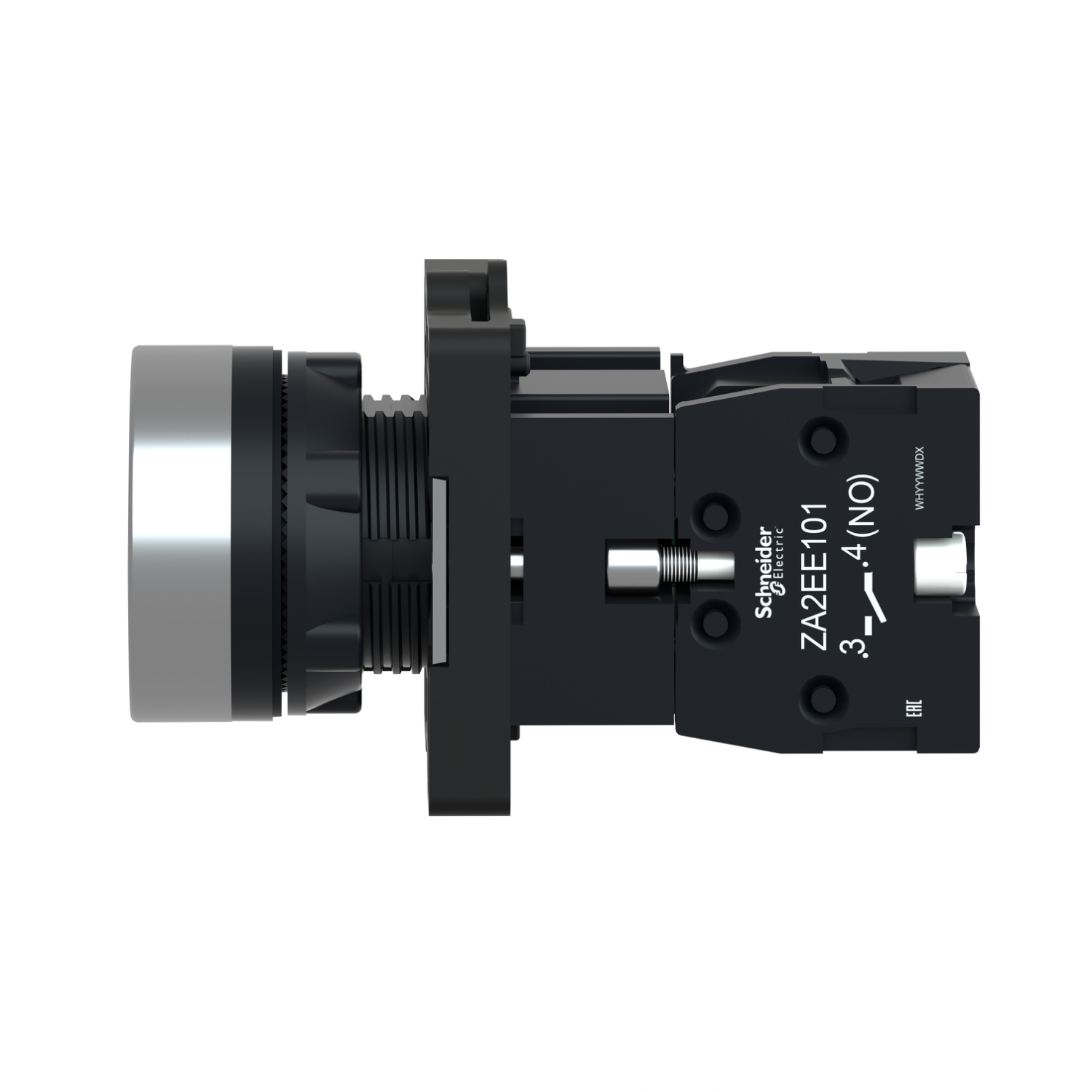

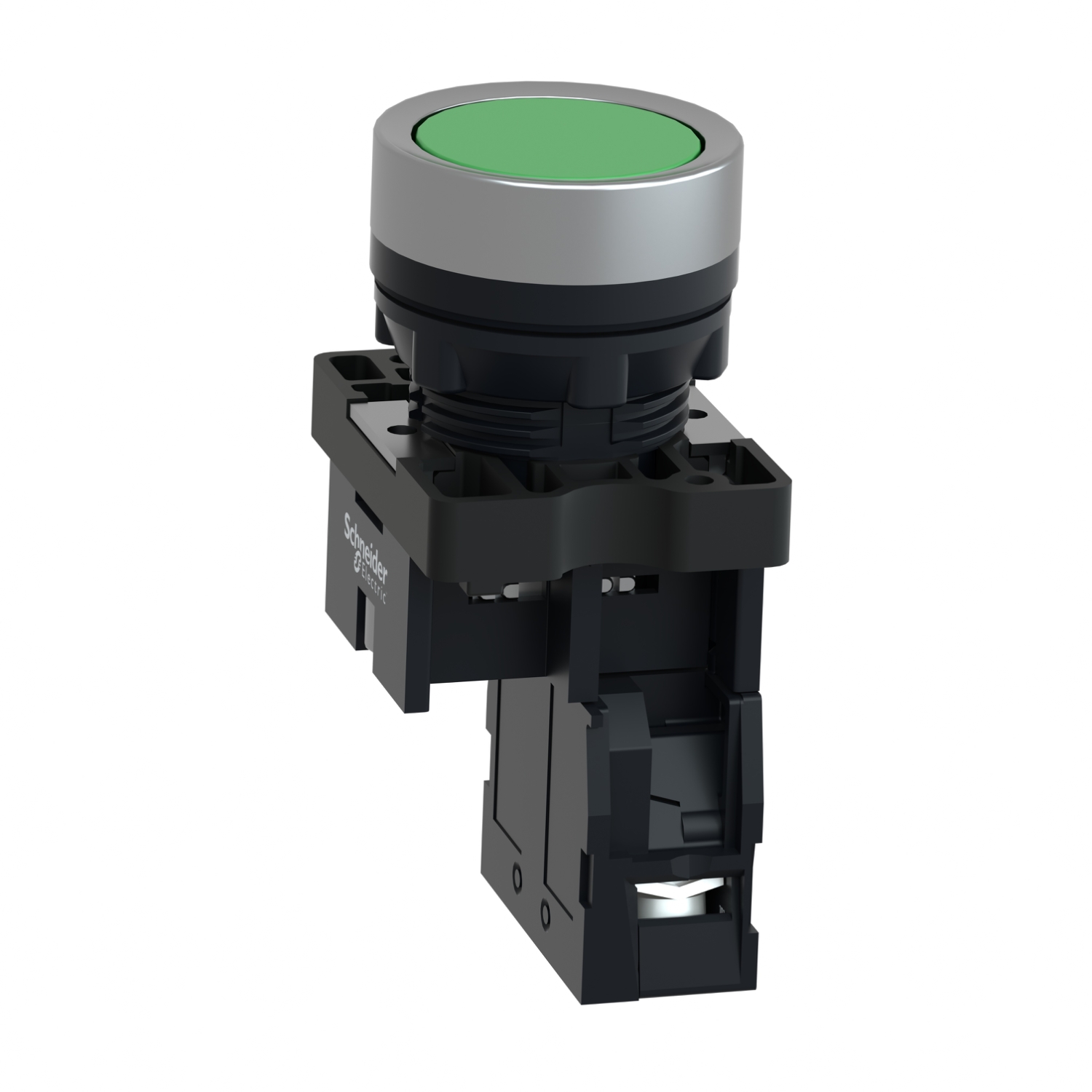

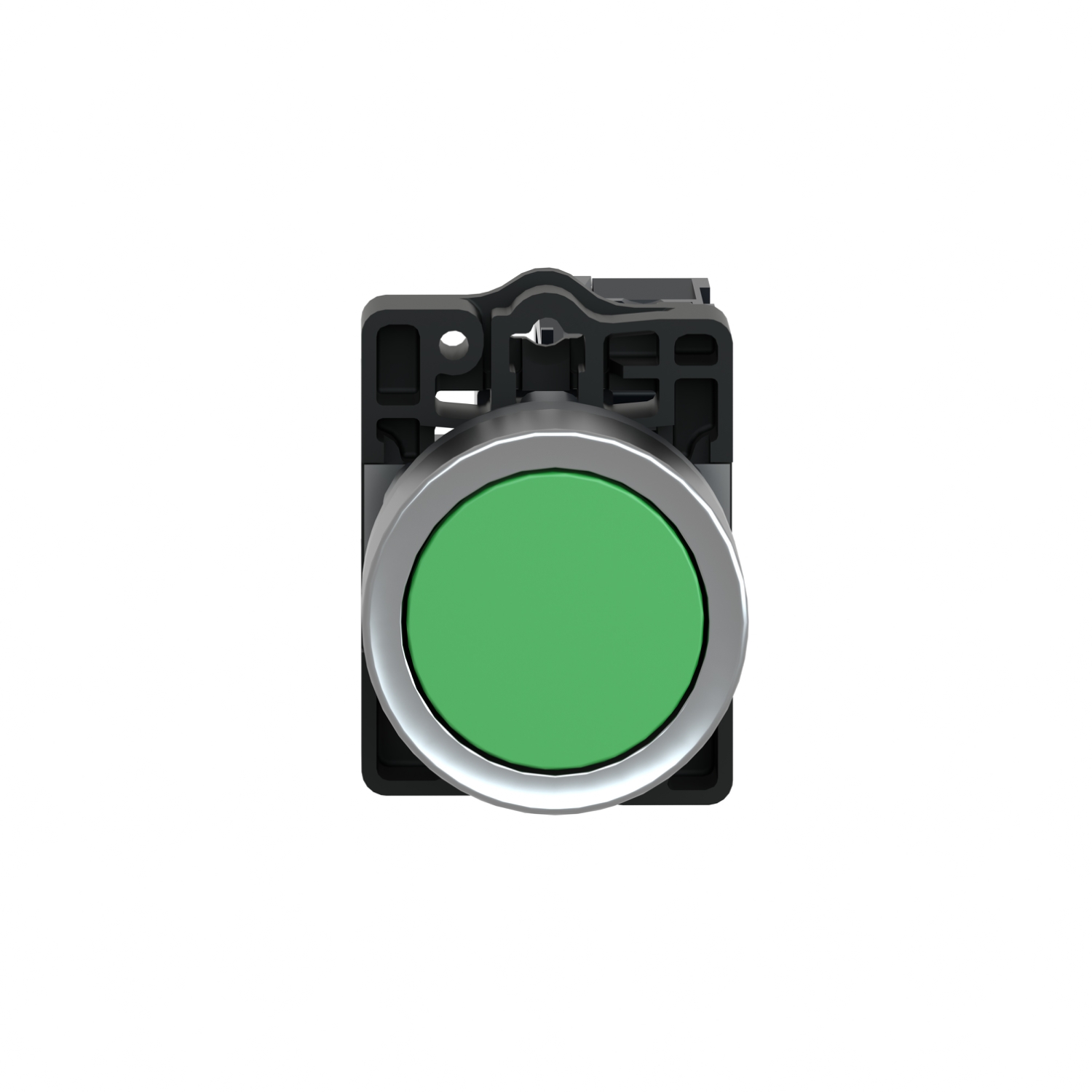

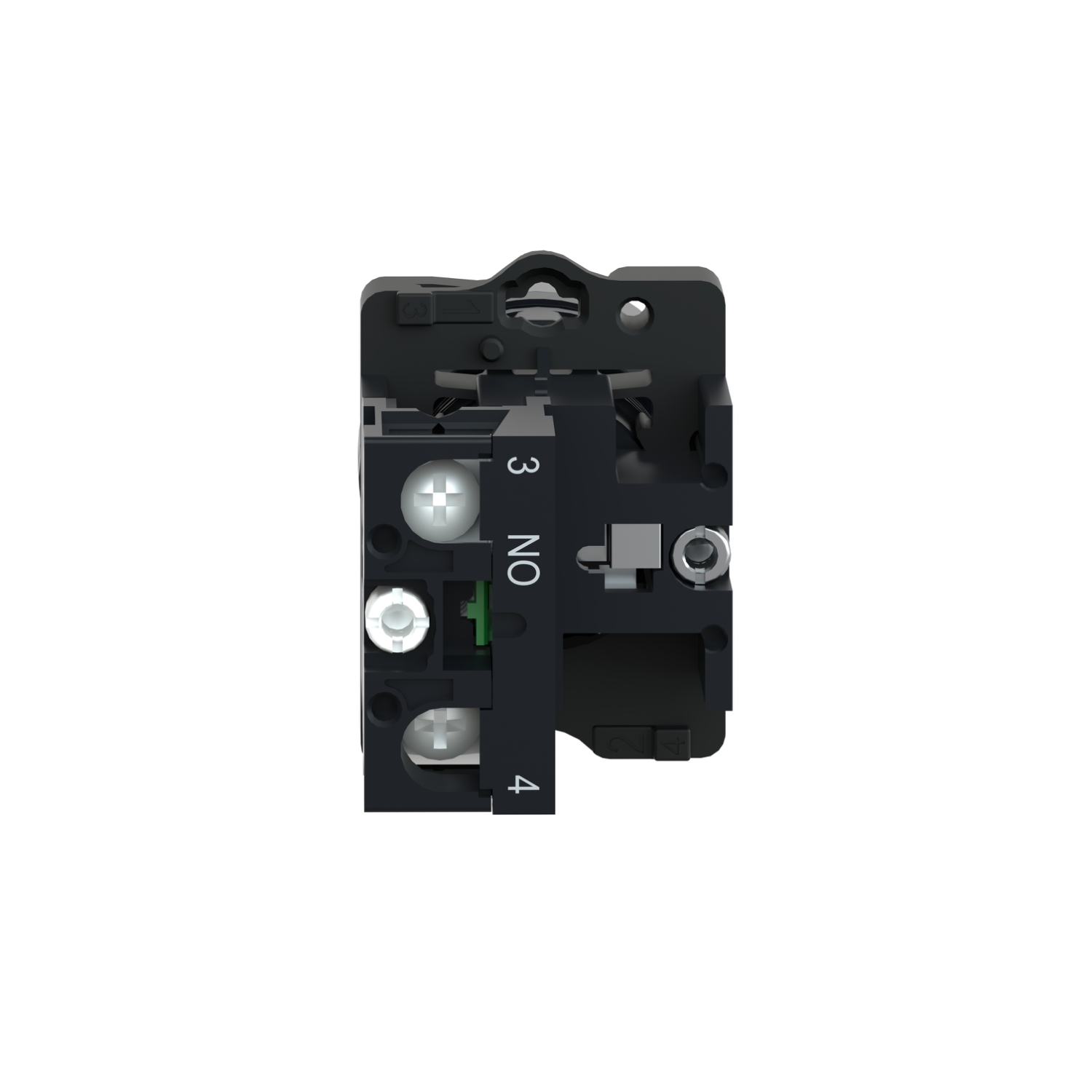

XA2EH031 | Round green push-button Ø 22 -push push – 1NO

Description

brands	Schneider Electric
Range of product	Easy Harmony XA2
Product or component type	Complete push-button
Device short name	XA2
bezel material	Plastic
Fixing collar material	Plastic
Net weight	0.04 kg
Mechanical durability	1000000 cycles
Tightening torque	0.8 N.m
Short-circuit protection	10 A gL fuse conforming to IEC 60269-1
[Ui] rated insulation voltage	600 V conforming to IEC 60947-1
[Ie] rated operational current	3 A at 240 V, AC-15, A600 0.27 A at 250 V, DC-13, Q600
Height	42 mm
Width	30 mm
Depth	67.7 mm
Mounting diameter	22.5 mm
