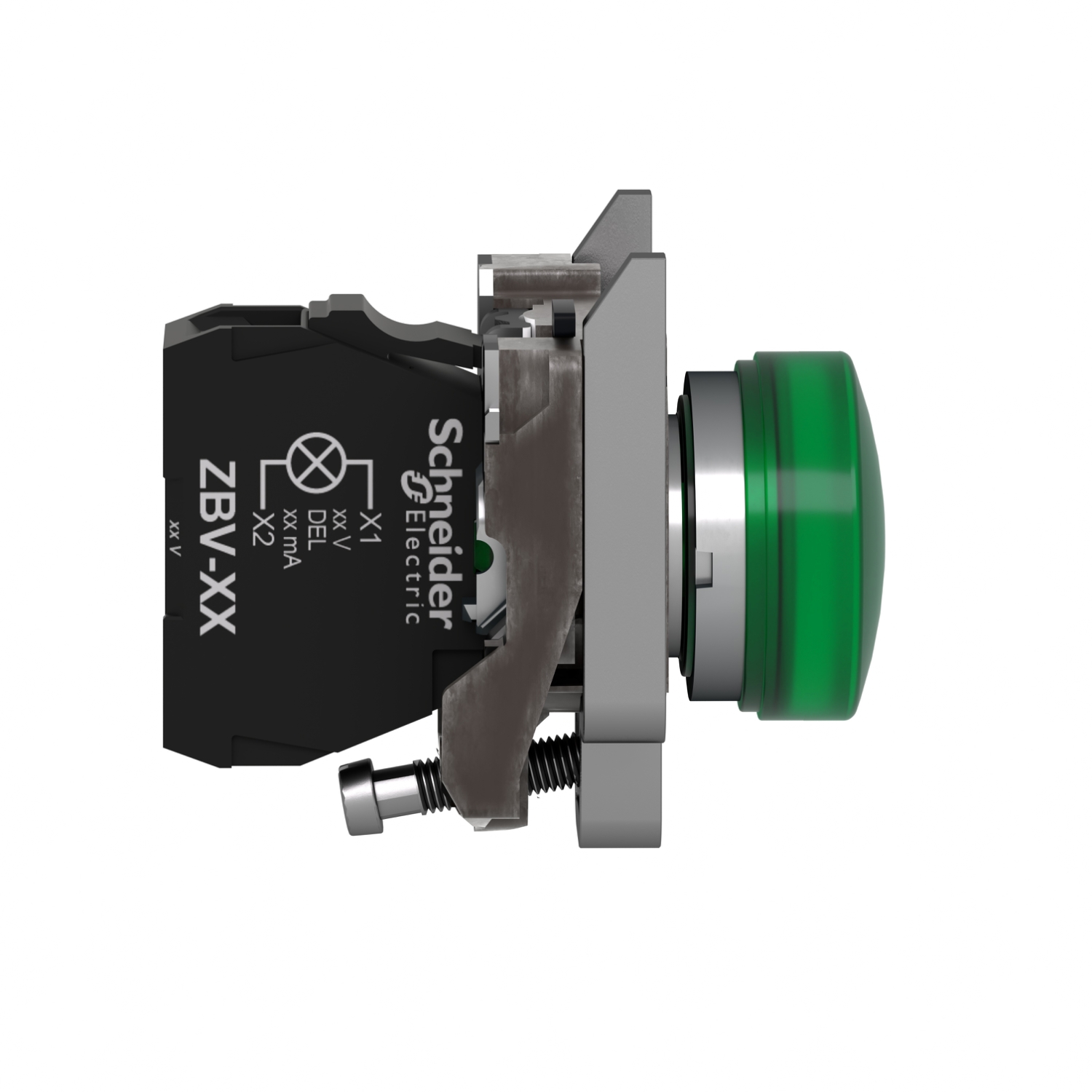

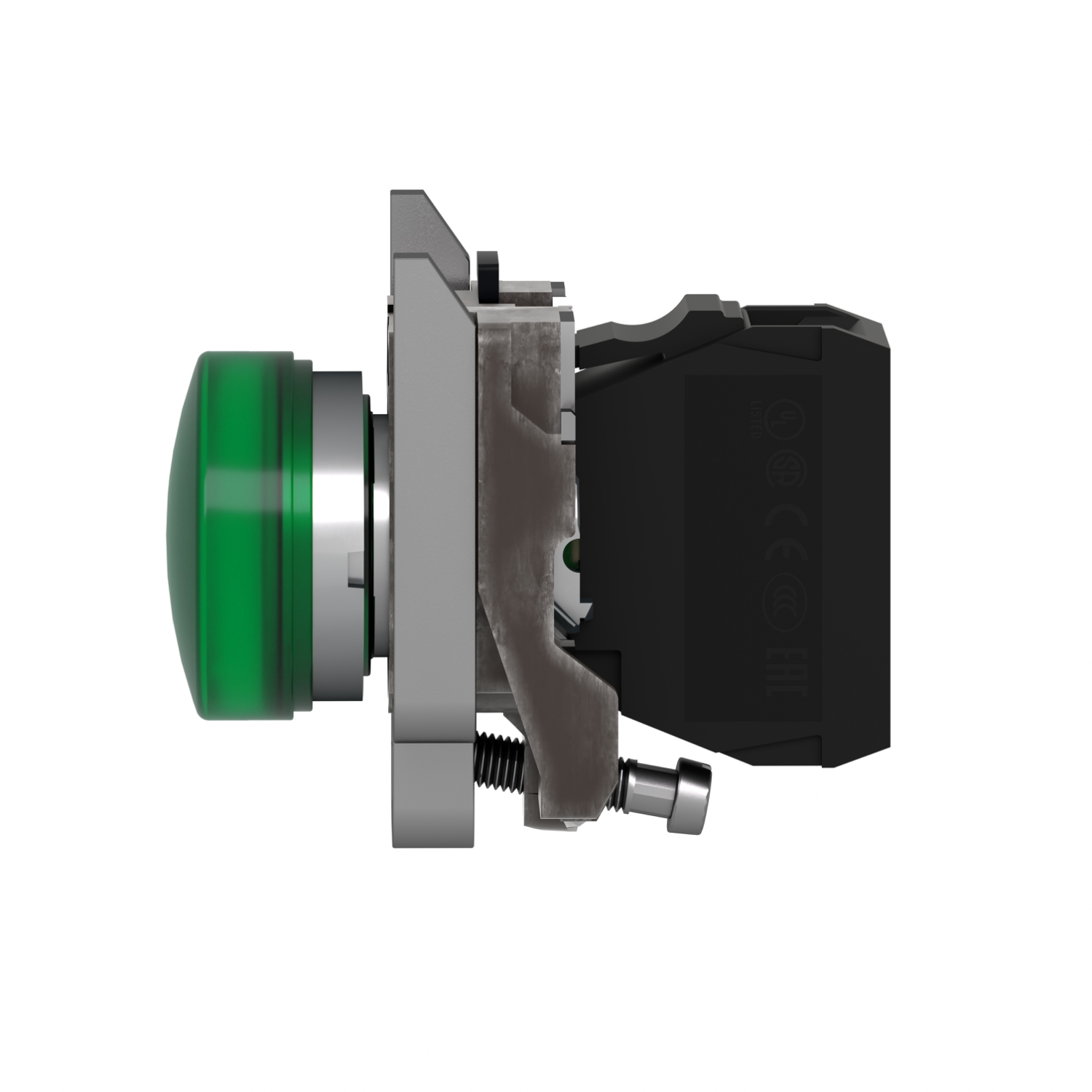

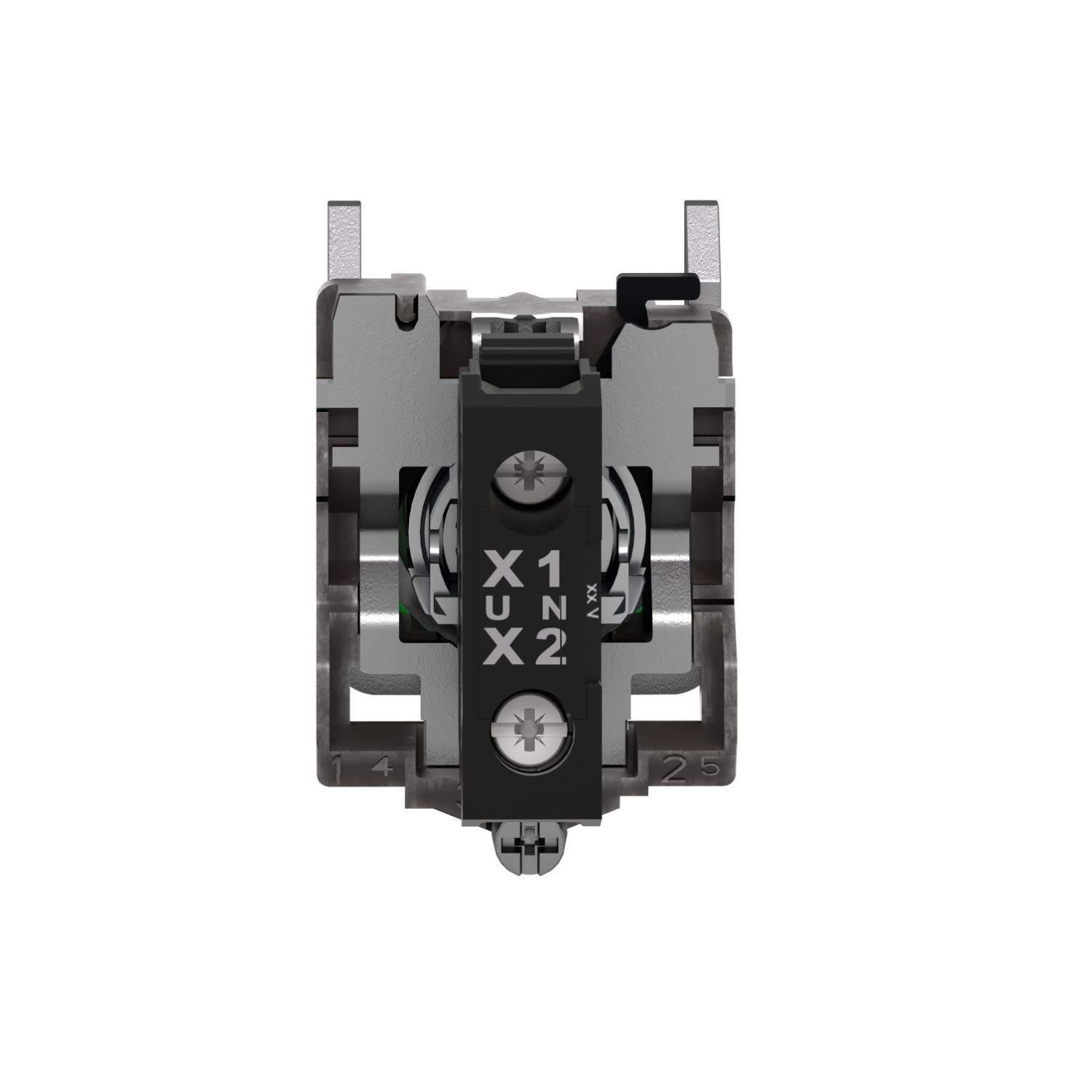

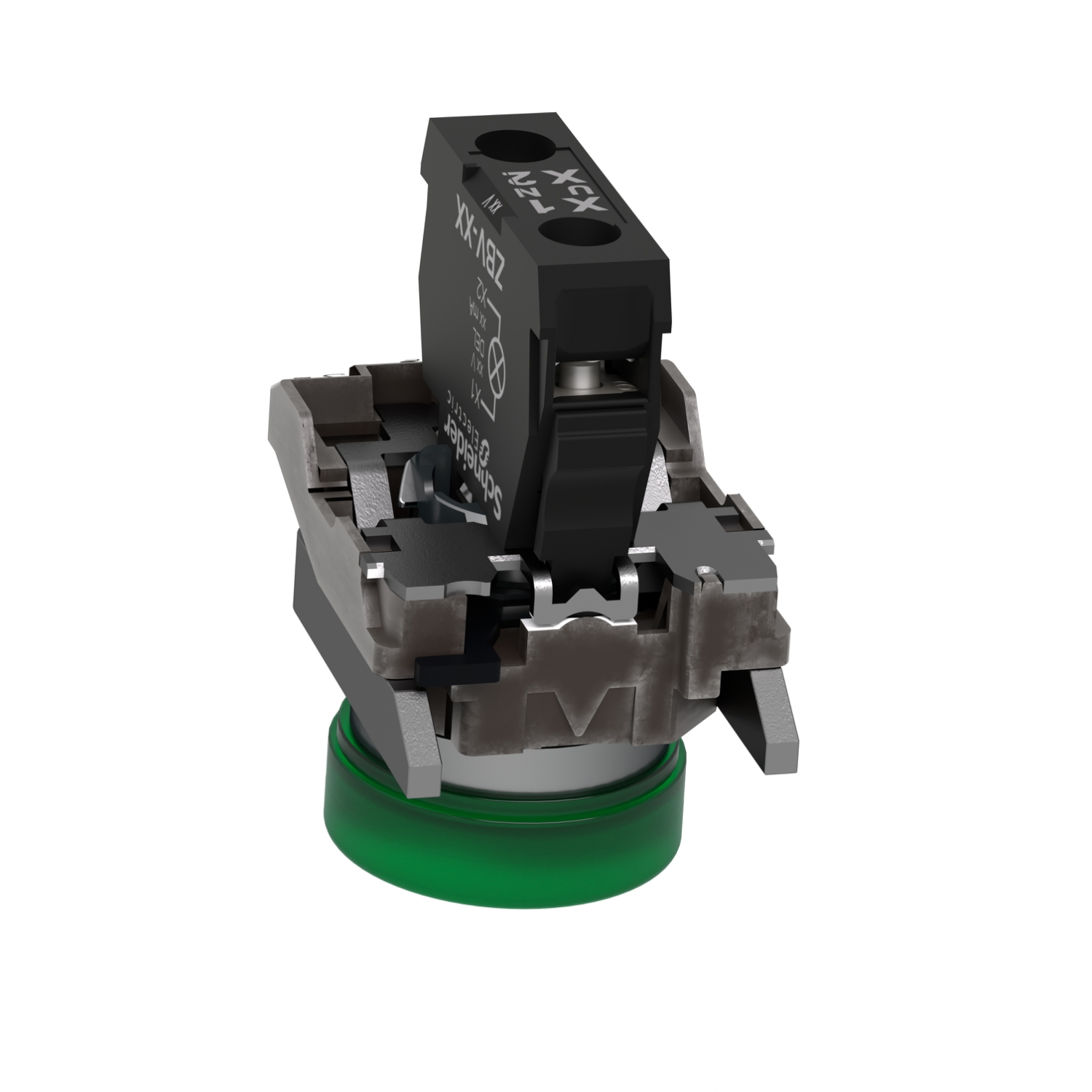

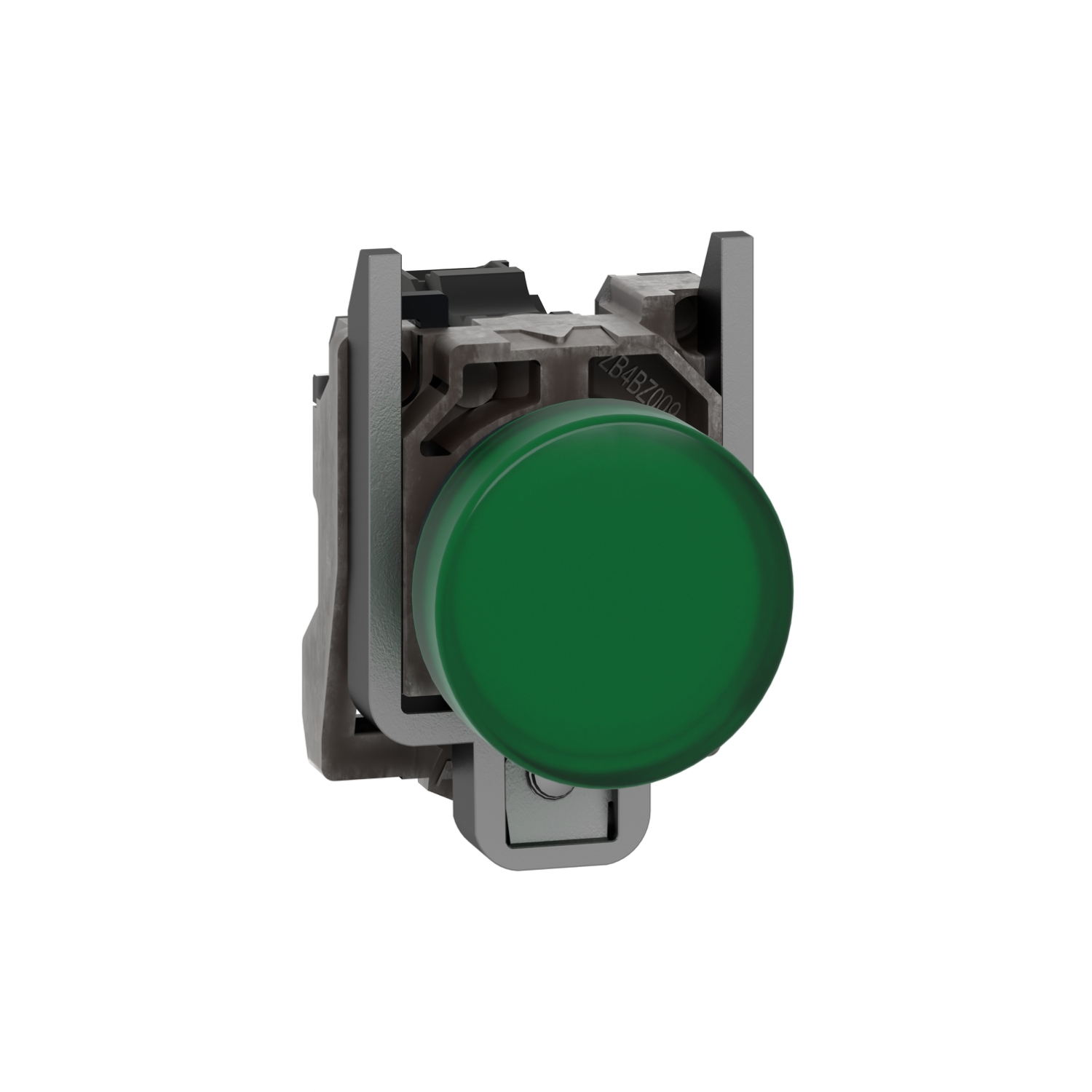

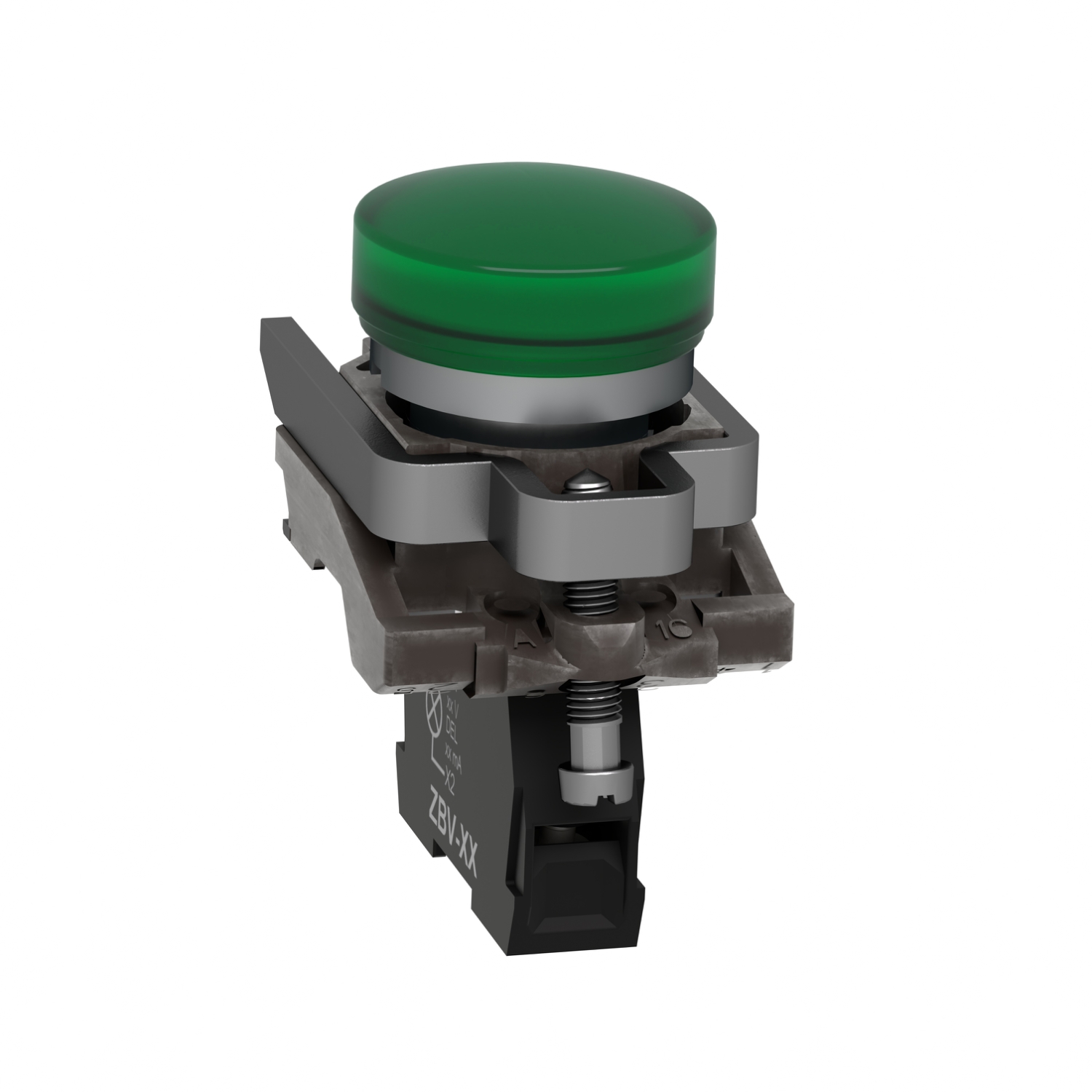

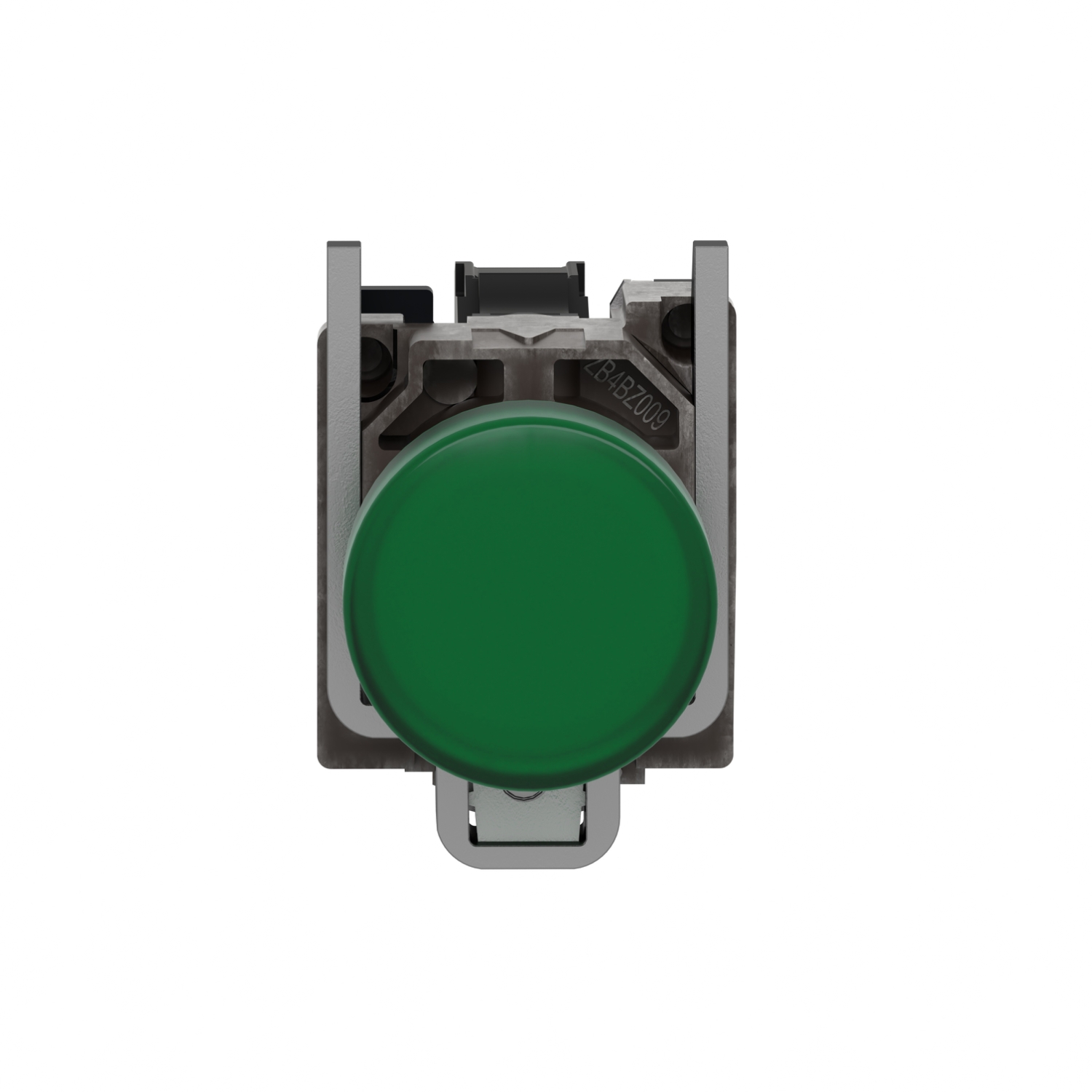

XB4BVM3 | Pilot light, metal, green, Ø22, plain lens with integral LED, 230…240 VAC
-42%
Additional Info
Reviews
Additional Info
| brands | Schneider Electric |
|---|---|
| Range of product | Harmony XB4 |
| Product or component type | Pilot light |
| Device short name | XB4 |
| bezel material | Chromium plated metal |
| light source colour | Green |
| Height | 47 mm |
| Width | 30 mm |
| Depth | 54 mm |
| Terminals description ISO n°1 | (X1-X2)PL |
| Net weight | 0.08 kg |
| [Ui] rated insulation voltage | 250 V (pollution degree 3) conforming to IEC 60947-1 |
| Device presentation | Complete product |
| Signalling type | Steady |
| Service life | 100000 h at rated voltage and 25 °C |
| Surge withstand | 1 kV conforming to IEC 61000-4-5 |
| Fixing collar material | Zamak |
| Shape of signaling unit head | Round |
| Bulb base | Integral LED |
| Mounting diameter | 22 mm |
| Light source | Universal LED |
| Cap/operator or lens colour | Green |
